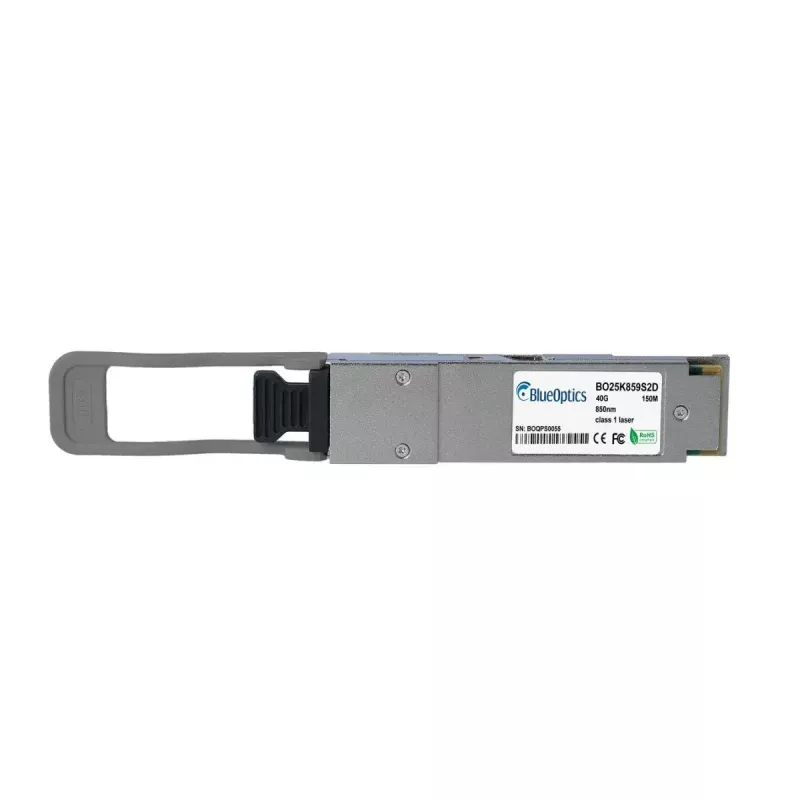

Módulo transceptor de fibra ótica BlueOptics JNP-QSFPP-40G-BXSR-BO QSFP 150m

The BlueOptics JNP-QSFPP-40G-BXSR-BO QSFP 150m is a fiber optic transceiver module designed for short-range, high-speed data transmission. It implements the QSFP interface and supports 40G optical links over multimode fiber with a maximum reach of 150 meters. The module is constructed from aluminium, weighs approximately 40 g, and uses LC duplex connectivity following MSA standards. It is suitable for networking equipment that accepts QSFP form-factor transceivers and supports Ethernet, Fibre Channel over Ethernet or SDH/SONET applications up to 40 Gbit/s.

Advantages

The transceiver provides bidirectional 40G transmission using SR2 BIDI optics, enabling simultaneous transmit and receive on paired fibers and reducing fiber requirement. Built to MSA specifications, the module is compatible with major networking platforms that support the corresponding original transceiver. The aluminium housing delivers a lightweight but robust mechanical design, and built-in digital diagnostics (DDM/DOM) allows remote monitoring of supply voltage, laser bias current, transmit power, receive power and temperature for simplified maintenance and troubleshooting.

Suitable for

• Short-range data center interconnects and rack-to-rack links
• High-speed switches, routers and storage system uplinks
• 40G Ethernet and Fibre Channel over Ethernet applications
• Environments requiring DDM/DOM-based monitoring and diagnostics

Key specifications

• Interface type: QSFP (Quad Small Form-factor Pluggable)
• Data rate: up to 40 Gbit/s
• Optical type: SR2 BIDI for multimode fiber
• Wavelength range (Tx/Rx): approximately 832–918 nm
• Connector: LC Duplex
• Maximum reach: up to 150 meters over multimode fiber
• Housing material and colour: aluminium
• Weight: approx. 0.04 kg
• Digital diagnostics (DDM/DOM): supported (requires host support)

How to use

Install the transceiver into a compatible QSFP slot of your switch, router or storage device following the host vendor's insertion and removal procedures. Connect LC duplex multimode fiber patch cords to the module, ensuring proper polarity and secure connector seating. Verify that the host device recognizes the module and that DDM/DOM is enabled if you need diagnostic telemetry. Configure the network interfaces on the host device for 40G operation as required by your network design.

Recommendations

Use high-quality multimode LC patch cords and follow recommended fiber management practices to achieve the specified 150 m reach. Confirm that the host platform supports third-party QSFP transceivers and DDM/DOM functions to access monitoring features. For reliable long-term operation, avoid excessive mechanical stress on the module and connectors and maintain appropriate ambient operating conditions as specified by the host equipment.
