Módulo transceptor de fibra ótica BlueOptics PAN-T-Q-40GBASE-SR4-BO QSFP 150 m

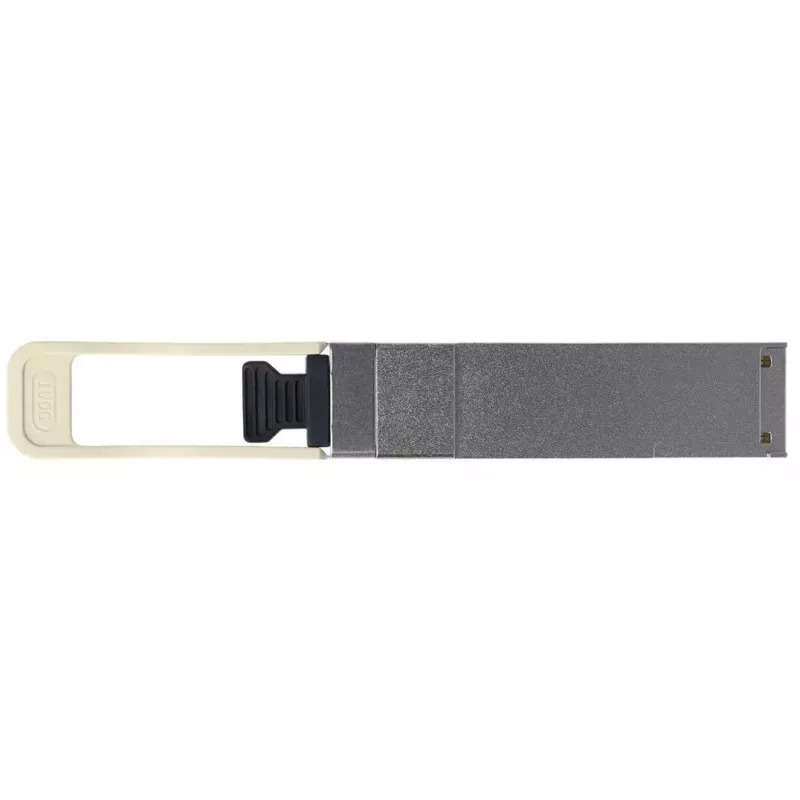

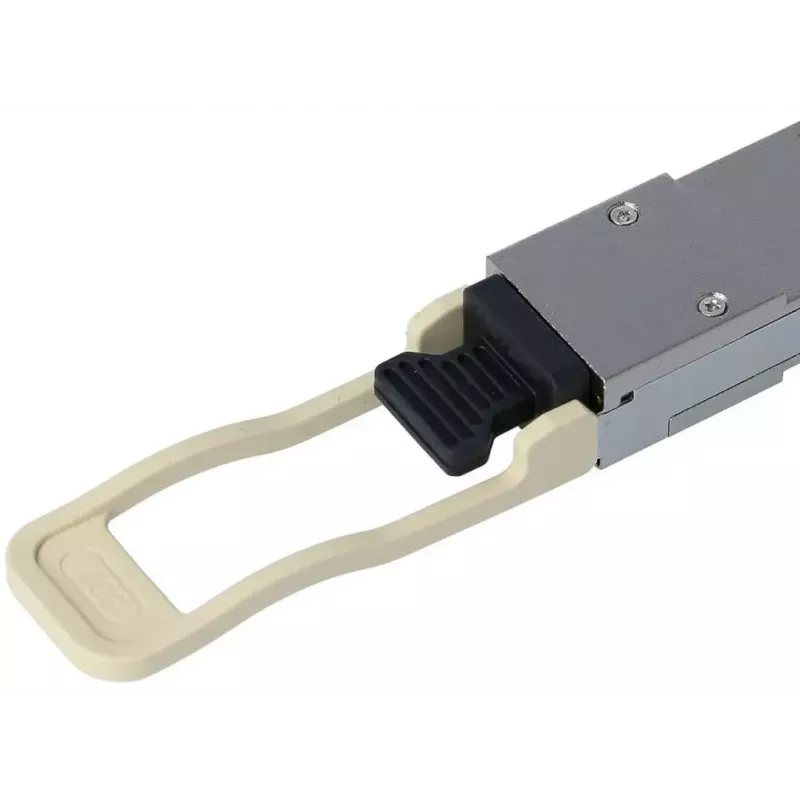

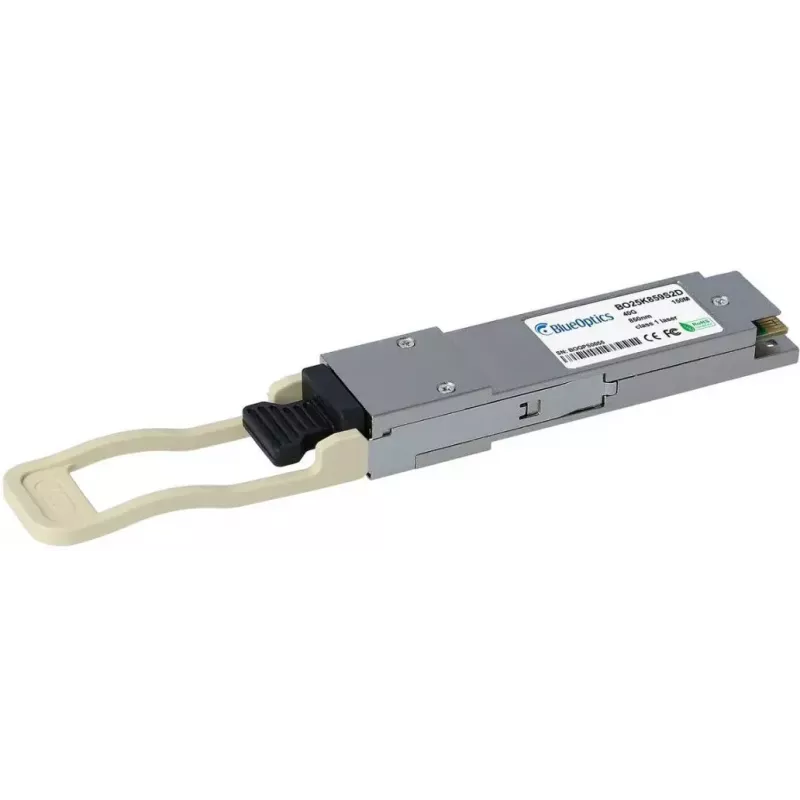

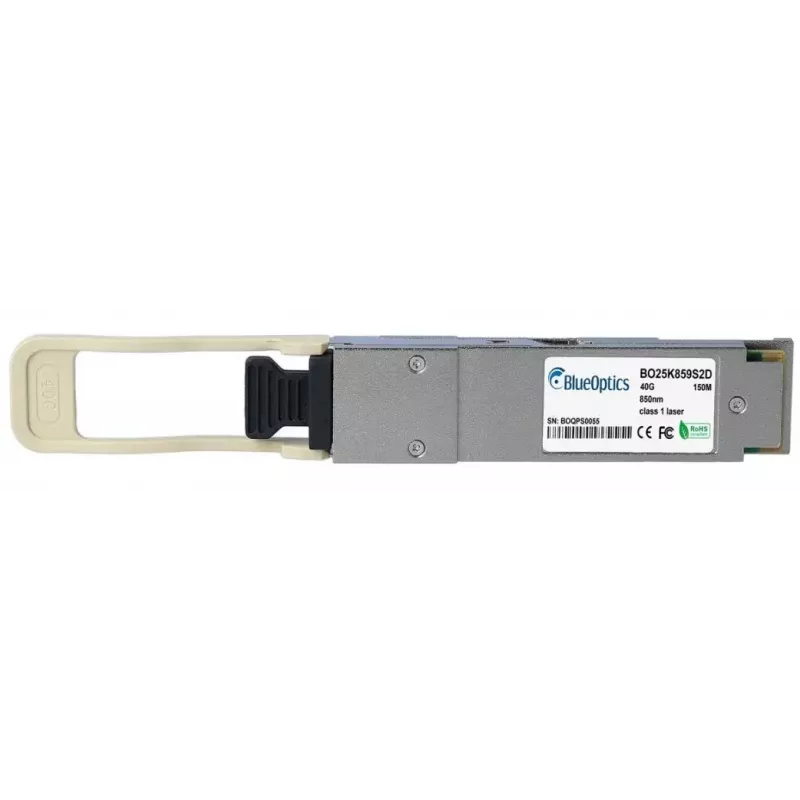

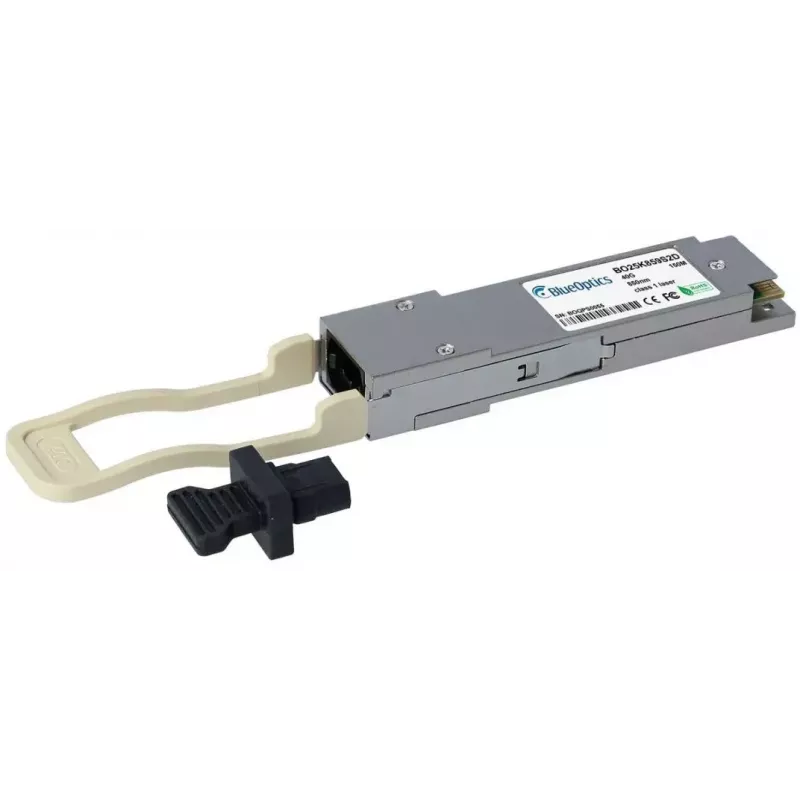

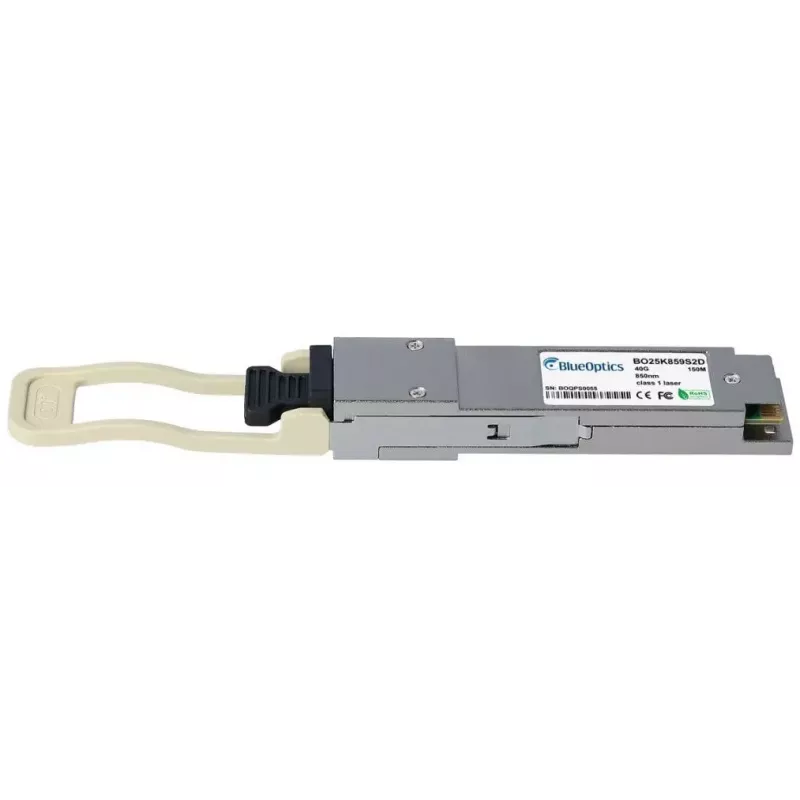

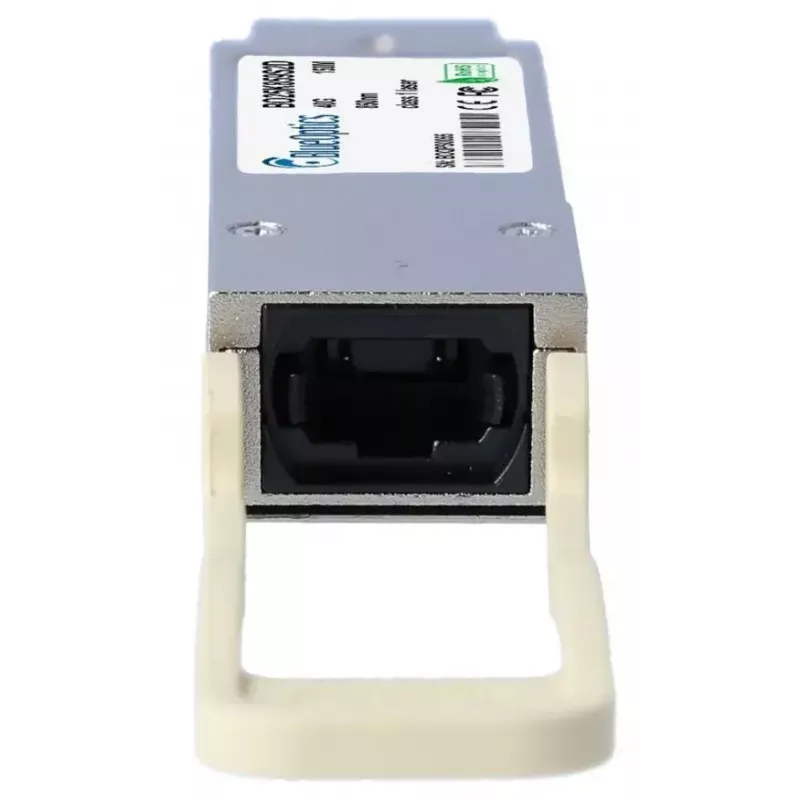

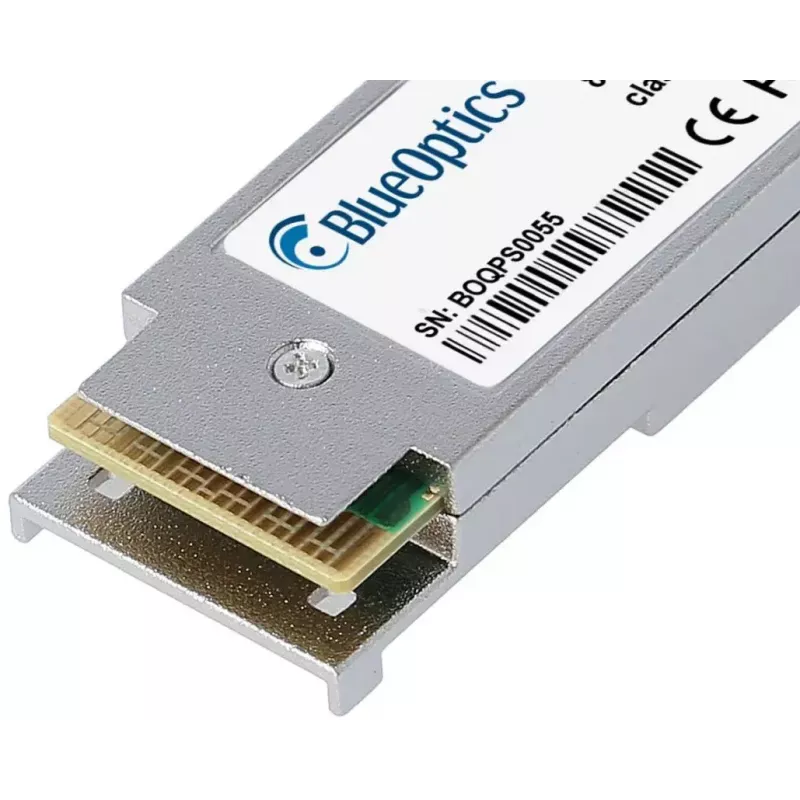

The BlueOptics PAN-T-Q-40GBASE-SR4-BO is a 40GBASE-SR4 fiber optic QSFP transceiver module designed for short-reach multimode fiber links. Constructed with an aluminium housing and weighing approximately 20 grams, the module implements an MPO/MTP interface and supports optical transmission over multimode fiber at 850 nm with a maximum distance of up to 150 meters. It is intended for use in high-speed Ethernet and compatible networking hardware that supports 40GBASE-SR4 QSFP modules.

Advantages

This BlueOptics QSFP module follows MSA-compatible QSFP form-factor and MPO/MTP connector conventions to ensure interoperability with equipment that accepts 40GBASE-SR4 QSFP transceivers. The module’s multimode 850 nm transmitter and receiver support simultaneous transmit and receive channels over parallel fiber, enabling aggregated 40 Gbit/s data throughput for short-reach connections. The aluminium housing provides a lightweight yet durable enclosure suitable for dense rack deployments.

Suitable for

Key specifications

How to use

Install the QSFP transceiver into a compatible QSFP port on your switch, router or other network device following the device manufacturer’s hot-plug handling instructions. Connect an MPO/MTP-terminated multimode fiber patch cord between the module and the corresponding MPO/MTP interface or patch panel. Verify that the host device supports 40GBASE-SR4 optics and, if applicable, enable or verify link configuration in device firmware or operating system. Observe standard electrostatic discharge (ESD) precautions when handling the module and keep protective caps on connectors when not in use.

Recommendations

Use OM3 or OM4 multimode fiber to achieve the specified 150 m reach and minimize insertion loss by using high-quality MPO/MTP patch cords and properly maintained patch panels. Ensure the host hardware supports Digital Diagnostic Monitoring (DDM/DOM) if you require real-time diagnostic telemetry, and confirm firmware compatibility before deployment.
