Módulo transceptor de fibra ótica BlueOptics SPTSBP3CLCXX-BO 100000 Mbit/s QSFP28

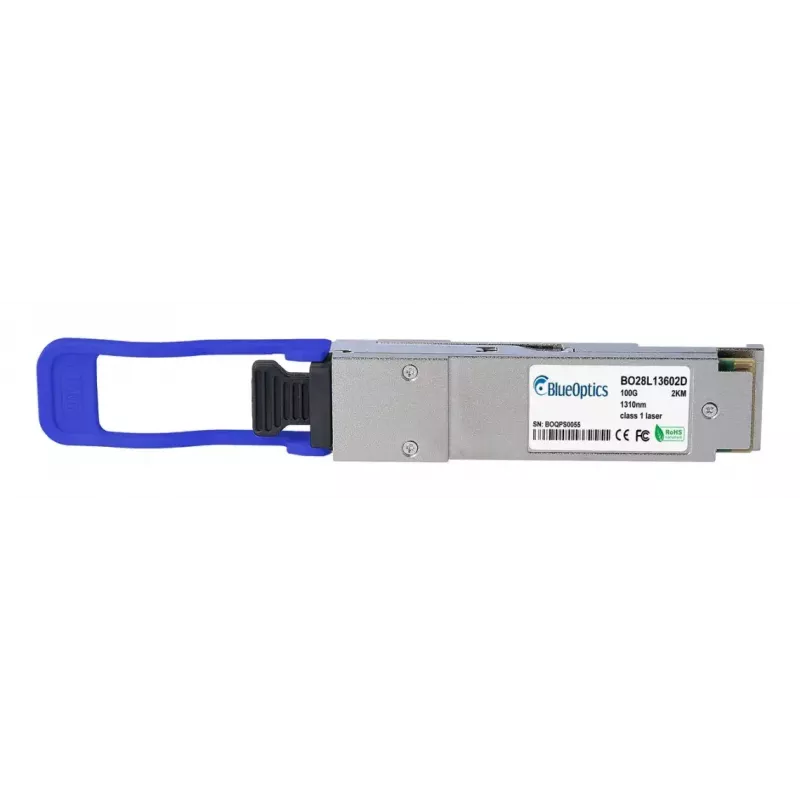

The BlueOptics SPTSBP3CLCXX-BO is a QSFP28 fiber optic transceiver module designed for high-speed data transfer up to 100000 Mbit/s. It uses a QSFP28 interface with an LC duplex connector and is intended for single-mode fiber CWDM links. The module comes in a compact silver housing, weighs approximately 0.04 kg and is built to meet MSA form-factor standards for straightforward integration into compatible network equipment. The product is suitable for Ethernet, Fibre Channel over Ethernet (FCoE) or SDH/SONET applications that require 100G transmission over short single-mode distances.

Advantages

The transceiver offers a standardized QSFP28 form factor that supports 100GBASE-CWDM4 transmission and includes digital diagnostics monitoring (DDM/DOM) capability for real-time reporting of supply voltage, laser bias current, transmitted and received optical power, and temperature when supported by host hardware. Built according to MSA specifications and using industry-standard optical components, the module is lightweight and engineered for reliable operation and long service life.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP28 module into a compatible QSFP28 slot on a switch, router, storage system or other network device that supports 100GBASE-CWDM4 transceivers. Connect single-mode LC duplex fiber patch cords between transceivers or to a patch panel to form the optical link. Ensure the host device firmware and hardware support the QSFP28 module and, where required, enable DDM/DOM monitoring to access diagnostic parameters. Follow standard ESD precautions when handling the module and remove dust caps only when making the optical connection.

Recommendations

For optimum performance, pair the transceiver with single-mode LC duplex fiber and use CWDM-compliant patch cords. Verify compatibility with the host platform and confirm that the host supports DDM/DOM if remote diagnostics are required. Maintain clean optical connectors and appropriate fiber bend radius to preserve signal quality.
