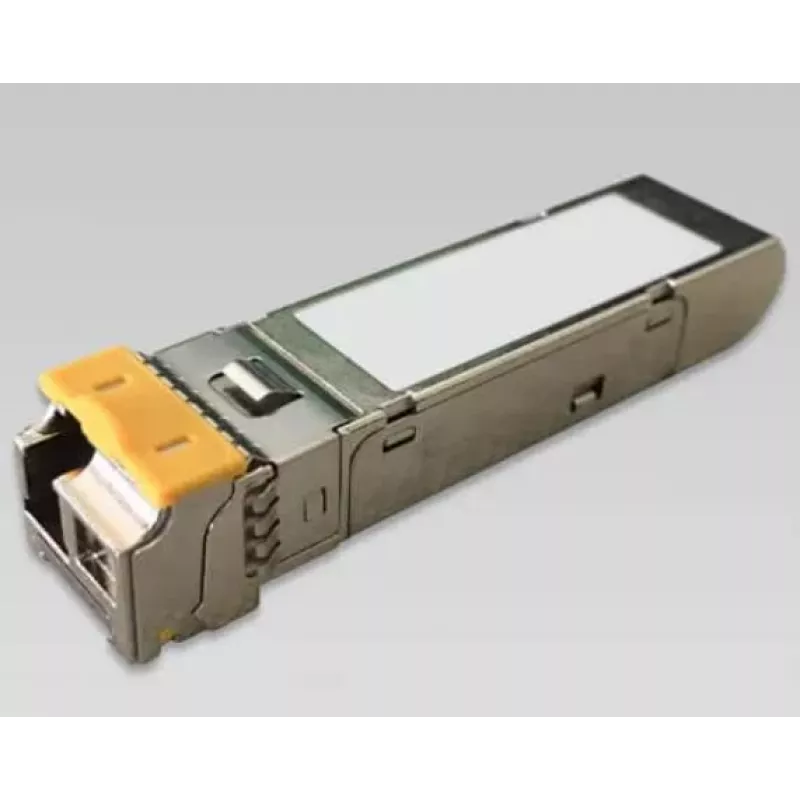

Módulo transceptor de fibra ótica PLANET MGB-TSB

The PLANET MGB-TSB is a Small Form Factor Pluggable (SFP) mini-GBIC fiber optic transceiver module designed for integrated duplex data transmission over single-mode and multi-mode optical fiber. Compliant with the SFP Multisource Agreement (MSA) and hot-pluggable, the module supports 1000BASE-SX/LX/BX connections with a maximum data rate of 1000 Mbit/s and is compatible with PLANET SFP ports and other SFP MSA-compliant equipment.

Advantages

The MGB-TSB transceiver offers easy hot-pluggable installation without interrupting host equipment operation and supports extended link distances: up to 100 m over copper with appropriate media, up to 550 m on multi-mode fiber (LC) and up to 120 km on single-mode fiber (LC). The module follows SFP MSA standards for broad compatibility and is available in a metallic orange housing. The MGB-T series is designed for industrial environments, providing reliable performance across a wide operating temperature range.

Suitable for

• Gigabit Ethernet links between switches and routers
• Fiber uplinks in enterprise and carrier networks
• Industrial Ethernet deployments with wide temperature requirements
• Replacing or upgrading SFP ports in PLANET networking equipment

Key specifications

• Model: PLANET MGB-TSB (MPN: MGB-TSB, EAN: 4711605284387)
• Form factor: SFP (mini-GBIC), hot-pluggable
• Data rate: 1000 Mbit/s (1000BASE-SX/LX/BX)
• Connector: LC fiber
• Distance: up to 550 m (multi-mode), up to 120 km (single-mode)
• Operating temperature: wide-range industrial grade (designed for -40℃ to 75℃ environments)

How to use

Insert the MGB-TSB SFP transceiver into any SFP MSA-compliant port on compatible switches or routers while the host device is powered on; the hot-pluggable design allows installation without shutting down equipment. Connect the appropriate LC fiber cable (multi-mode or single-mode) to the module, ensuring correct fiber type and connector polarity. Configure network settings on the host device as required for 1000BASE operation and verify link status through the device management interface or LED indicators.

Recommendations

Use the MGB-TSB with SFP-compatible network equipment and match the transceiver type (SX/LX/BX) to the fiber type and link distance. For industrial deployments, verify that the host equipment supports wide operating temperatures and follow standard fiber handling procedures to avoid contamination or damage to the LC connector.
