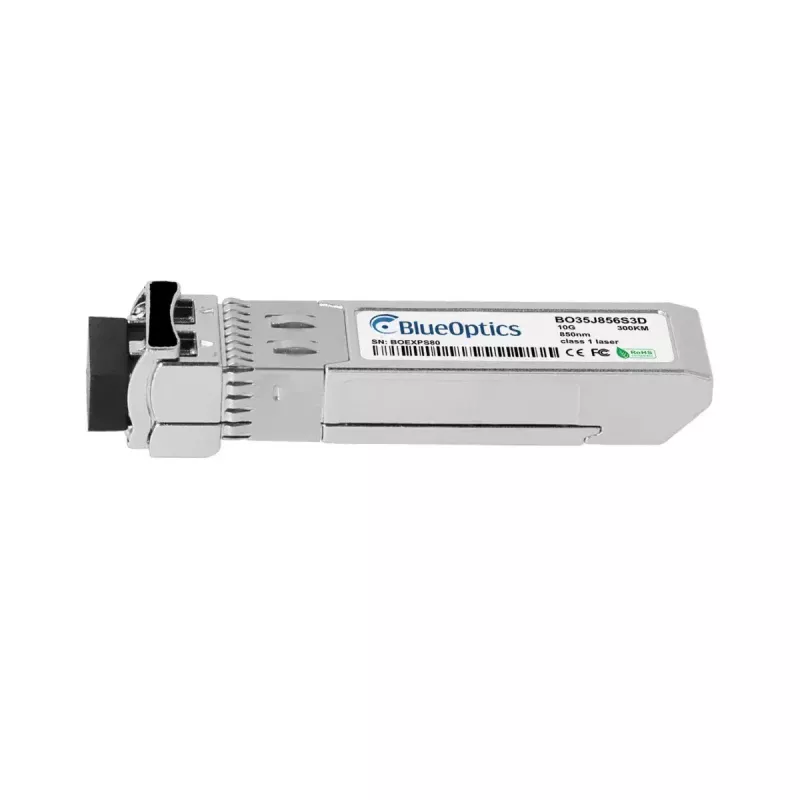

Módulo transceptor de rede BlueOptics AP783A-BO fibra ótica SFP+ LC alumínio

The BlueOptics AP783A-BO is a 10G SFP+ fiber optic transceiver module with an LC duplex connector and an aluminium housing, designed for high-speed multimode fiber links. It supports 10GBASE-SR transmission over multimode fiber and is supplied as a compact, lightweight module (approximately 20 g). The module follows MSA-compatible form-factor and interface conventions for straightforward integration into equipment that accepts SFP+ pluggable transceivers.

Advantages

The BlueOptics AP783A-BO offers a compact aluminium construction that helps with mechanical stability and heat dissipation while remaining lightweight. Its SFP+ interface provides hot-pluggable compatibility with networking hardware that supports SFP+ modules. The LC duplex connector supports simultaneous transmit and receive channels over multimode fiber for short-range 10 Gbps links. Designed and manufactured to meet industry MSA standards, the module is suitable for deployment in switch, router, and storage systems where 10G multimode connectivity is required.

Suitable for

• Short-range 10 Gbps links over multimode fiber
• Upgrading SFP+ ports on switches and routers to 10G optical connectivity
• Interconnects between network equipment and storage systems within data centers

Key specifications

• Form factor: SFP+
• Connector type: LC duplex
• Transmission type: 10G multimode optical (10GBASE-SR)
• Wavelength: 850 nm (multimode optics)
• Housing material: aluminium
• Typical weight: 0.02 kg

How to use

Install the BlueOptics AP783A-BO by inserting the SFP+ module into a compatible SFP+ port on the network device according to the device manufacturer’s instructions; the module is hot-pluggable but follow safe insertion/removal procedures to avoid port damage. Connect an LC duplex multimode fiber patch cord to the module’s LC duplex connector, ensuring correct transmit/receive orientation. After physical installation, verify link status and, if required, confirm that the host device recognizes the SFP+ transceiver and negotiates 10GBASE-SR operation.

Recommendations

Verify host device compatibility with third‑party SFP+ modules and enable any required software or firmware settings. Use quality multimode fiber and LC patch cords for optimal signal performance. If digital diagnostics (DDM/DOM) are available and supported by the host, monitor parameters such as optical power and temperature for proactive maintenance.
