Módulo transceptor de rede BlueOptics QSFP-100G-LR-S-BO 100000 Mbit/s QSFP28 1310 nm

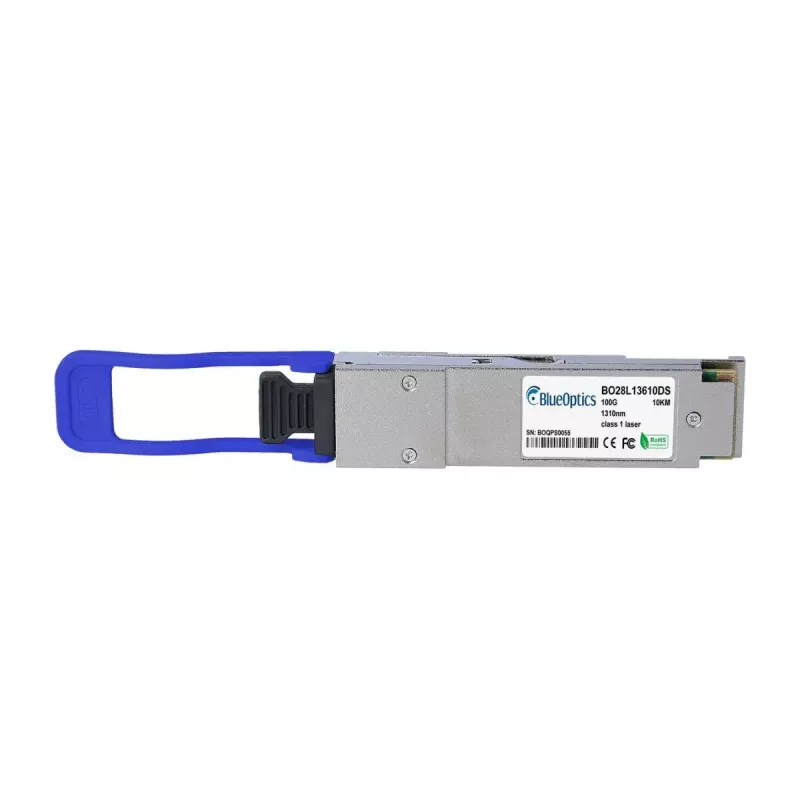

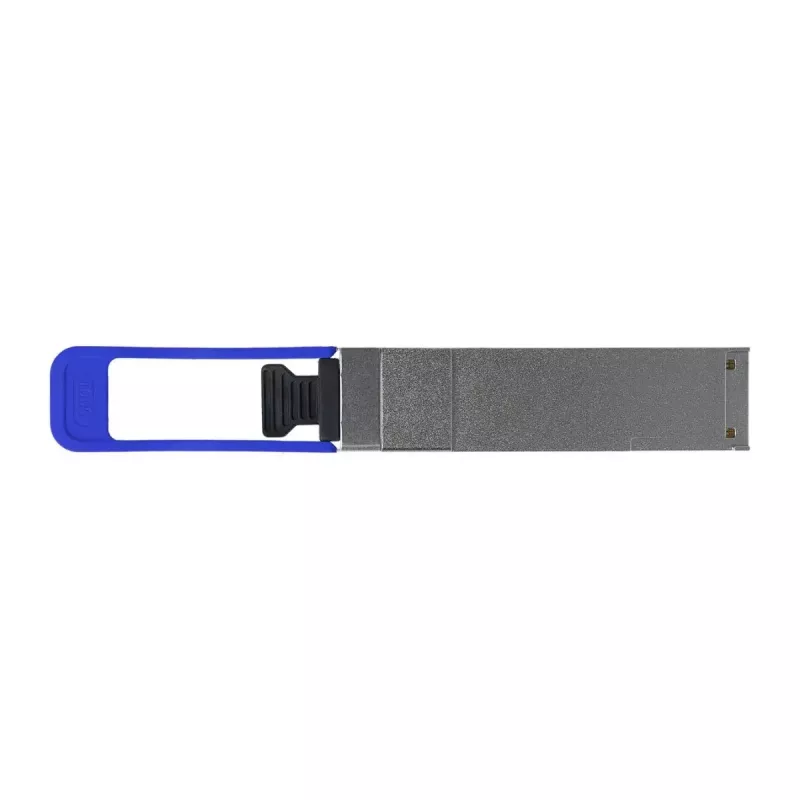

The BlueOptics QSFP-100G-LR-S-BO is a 100G QSFP28 fiber optic transceiver module designed for single-mode links at 1310 nm. It supports a maximum data transfer rate of 100000 Mbit/s and uses a QSFP28 interface with an LC duplex optical connector. Housed in a compact, silver metal enclosure and weighing approximately 0.004 kg, this module is intended for high-speed optical connections where compatibility with major network platforms and adherence to MSA form factors are required.

Advantages

The module provides high-speed 100G data transmission over single-mode fiber with simultaneous transmit and receive channels at 1310 nm. Its QSFP28 interface enables dense, hot-pluggable installation in compatible ports. The metal housing offers mechanical stability and thermal dissipation in rack environments. Integrated digital diagnostics (DDM/DOM) support allows real-time monitoring of parameters such as supply voltage, laser current, optical power and temperature, simplifying maintenance and troubleshooting.

Suitable for

• 100G Ethernet aggregation links in data centers and core networks
• High-speed connections between switches, routers and storage systems
• Long-reach single-mode fiber links where 10 km-class performance is required
• Environments requiring QSFP28 form factor and LC duplex connectivity

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s
• Operating wavelength: 1310 nm (Tx / Rx)
• Optical connector: LC duplex
• Fiber type: single-mode fiber
• Housing: metal, silver color
• Weight: approx. 0.004 kg
• Form factor: QSFP28, hot-pluggable
• Monitoring: Digital Diagnostics Monitoring / Digital Optical Monitoring (DDM/DOM)

How to use

Install the BlueOptics QSFP-100G-LR-S-BO by inserting the module into a compatible QSFP28 port on the switch, router or other networking hardware while the host supports QSFP28 MSA-based transceivers. Terminate the single-mode fiber with LC duplex connectors and mate it with the module's LC receptacle. Ensure the transmitting and receiving fibers are connected correctly. Verify link status and use the host system or management tools to access DDM/DOM values for live monitoring. Follow your hardware vendor's instructions for firmware, supported transceiver lists and any required configuration steps.

Recommendations

Use single-mode fiber patch cords and maintain proper fiber handling and bend-radius practices to preserve link quality. Confirm compatibility with the target hardware platform and, if available, test a sample module in your environment before large-scale deployment to validate performance and DDM/DOM reporting.
