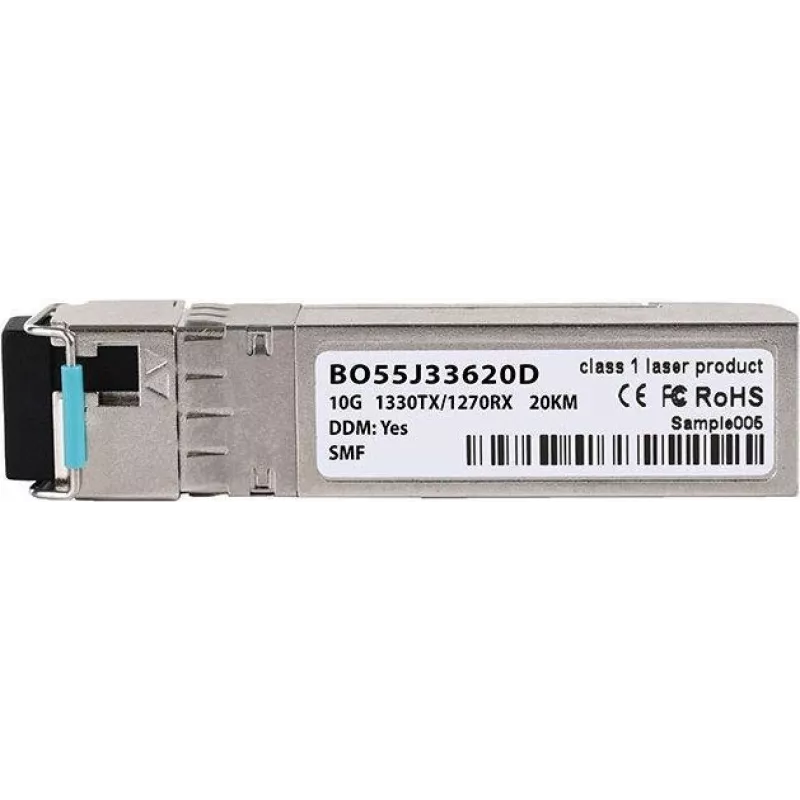

Módulo transceptor de rede BlueOptics SFPP-10GE-BX20D-IT-BO fibra ótica 10000 Mbit/s SFP+

The BlueOptics SFPP-10GE-BX20D-IT-BO is a fiber optic SFP+ transceiver module designed for 10 Gbit/s single-mode links. Housed in a compact metal enclosure and weighing approximately 3 g, it provides a duplex-capable optical interface using LC simplex connection and supports 10GBASE-BX-D operation with separate transmitter and receiver wavelengths for long-reach single-mode transmission. The module operates from a 3.3 V supply and is intended for use in networking equipment that accepts SFP+ form-factor transceivers.

Advantages

The module offers a standardized SFP+ interface for straightforward hot-pluggable installation and interoperability with systems that follow MSA specifications. Its metal casing provides mechanical robustness and thermal stability while the lightweight design minimizes added mass in high-density installations. Designed to support optical transmission over distances up to 20 km using single-mode fiber, the transceiver includes wavelength-biased transmit and receive channels to enable bi-directional communication on a single fiber when paired with a complementary BX transceiver.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP+ transceiver into an SFP+ slot on compatible network equipment while the device is powered on or off according to the host hardware guidance. Connect an LC simplex single-mode patch cord to the module and to the remote transceiver or patch panel; ensure you match the BX wavelength orientation (1270 nm TX / 1330 nm RX) with the complementary module at the far end. Verify link status via the host device interface and, if available, monitor module parameters through the Digital Diagnostics (DDM/DOM) interface supported by the host hardware.

Recommendations

Use single-mode LC simplex patch cords and maintain proper fiber cleanliness to preserve signal quality. Confirm that the target equipment supports DDM/DOM if real-time diagnostics are required, and pair BX-D transceivers with the correct complementary wavelength variant to achieve bi-directional single-fiber links.
