Módulo transceptor de rede de fibra ótica BlueOptics SFP-10G-SR-SV-BO SFP+ 300 m

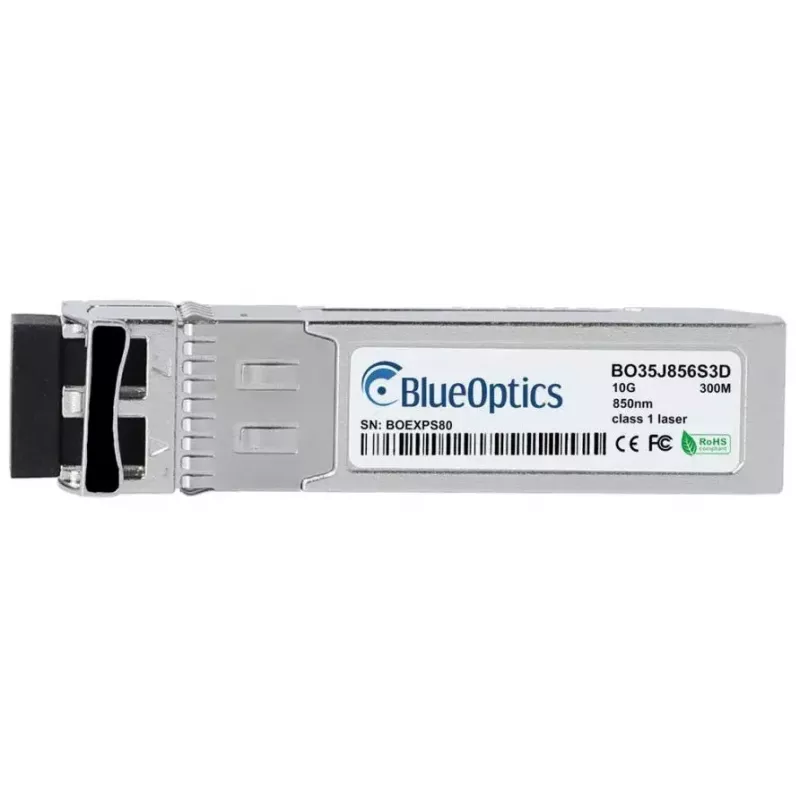

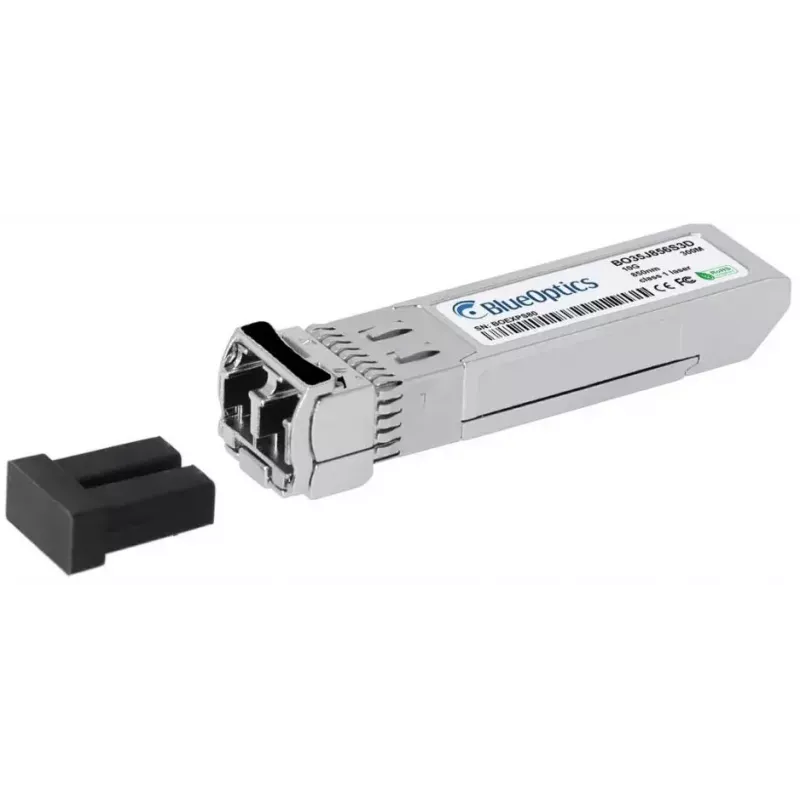

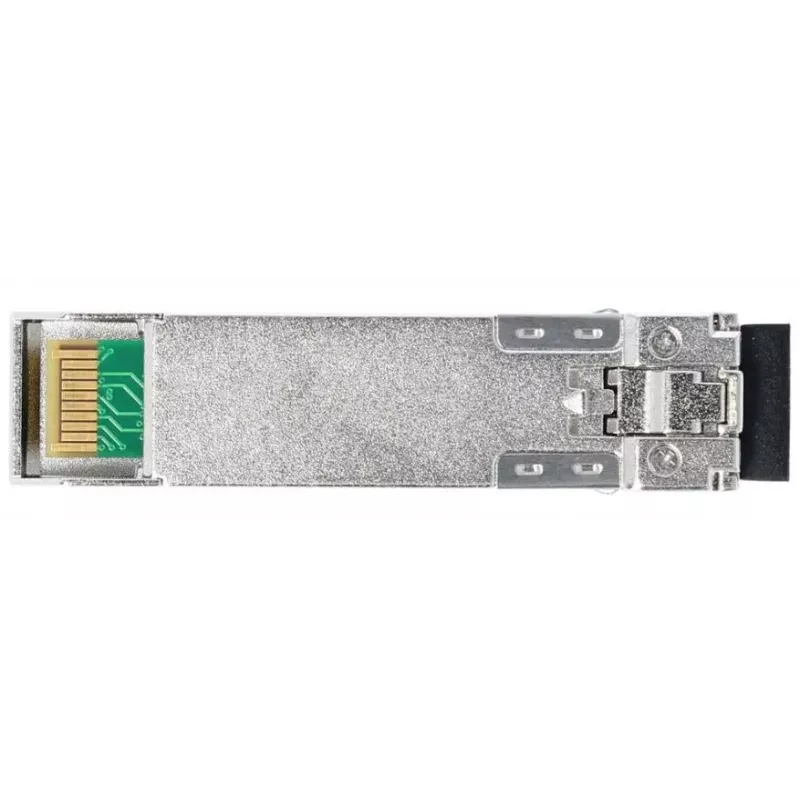

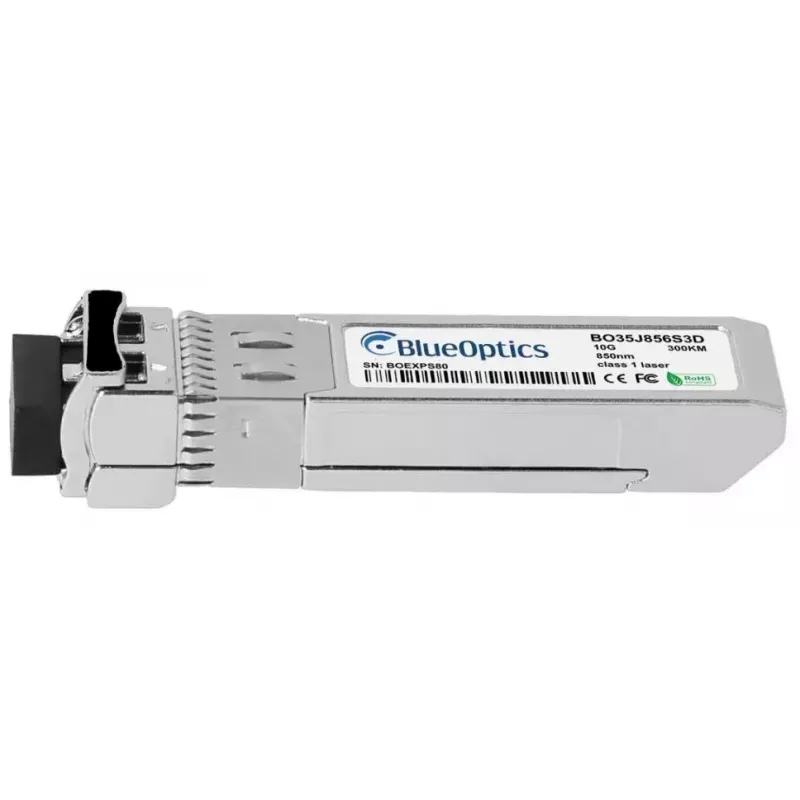

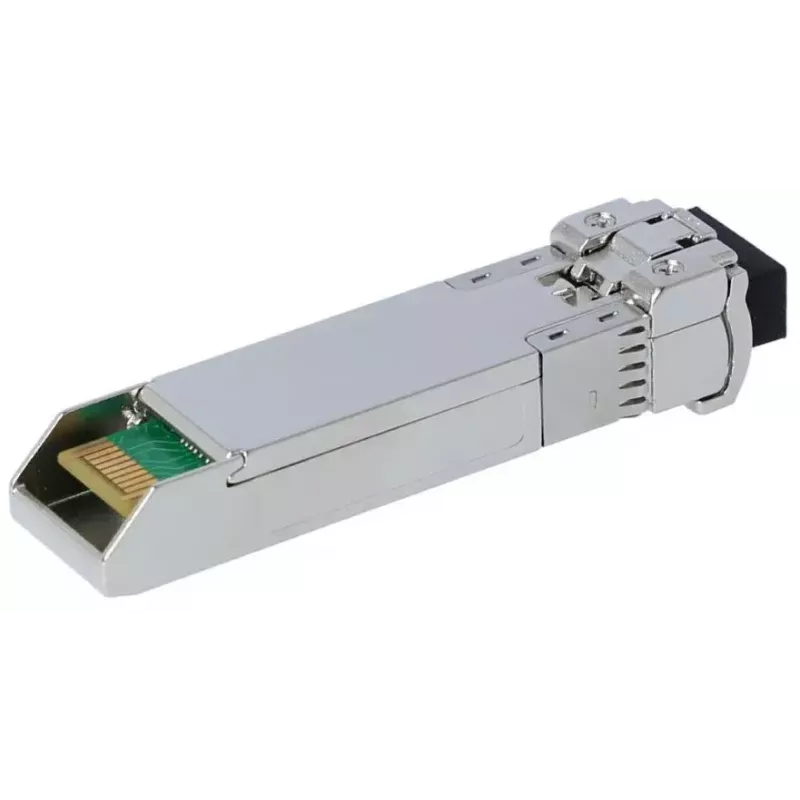

The BlueOptics SFP-10G-SR-SV-BO is a fiber optic SFP+ transceiver module intended for short-range 10G data links. It implements 10GBASE-SR optics with an LC duplex connector over multimode fiber and supports a maximum transfer distance of up to 300 meters. Housed in an aluminium casing and weighing approximately 20 grams, the module follows MSA form-factor conventions and is suitable for insertion into SFP+ ports on switches, routers and other network equipment that support standard 10GBASE-SR transceivers.

Advantages

This SFP+ transceiver provides compatibility with standard 10GBASE-SR networks using 850 nm transmit and receive optics and an LC duplex interface. The aluminium housing offers physical durability while the compact SFP+ form factor keeps weight and space requirements low. The module supports digital diagnostics (DDM/DOM) when used in hardware that exposes those features, enabling monitoring of parameters such as supply voltage, optical power and temperature for easier maintenance and fault analysis.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-10G-SR-SV-BO by inserting the module into an SFP+ slot on compatible network equipment until it latches. Connect an LC duplex multimode fiber patch cable between this transceiver and the corresponding transceiver on the remote device, observing correct transmit/receive orientation. Ensure the host device is configured to use 10GBASE-SR optics and, if required, enable or check the DDM/DOM status via the host management interface. Power down is generally not required for hot-pluggable SFP+ modules, but follow the equipment manufacturer’s guidance for insertion and removal to avoid port errors.

Recommendations

For reliable operation, use high-quality multimode fiber (OM3/OM4 recommended for full 300 m range) and compatible LC duplex patch cords. Verify that the switch or router firmware supports third-party SFP+ modules and that DDM/DOM functions are available in your hardware if diagnostics are required. Keep the module and fiber connectors clean and protected with dust caps when not in use to maintain optical performance.
