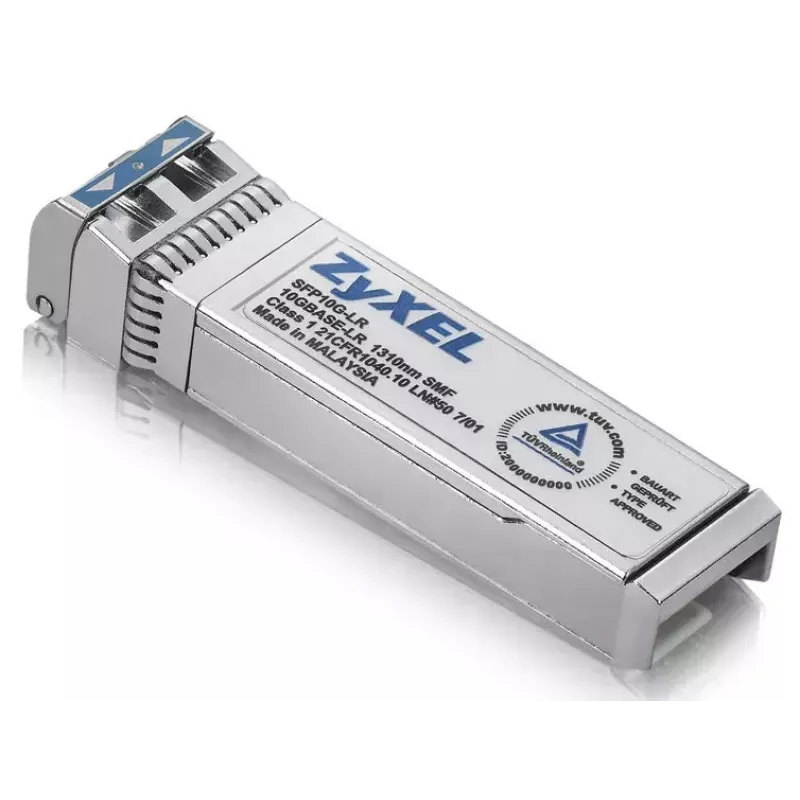

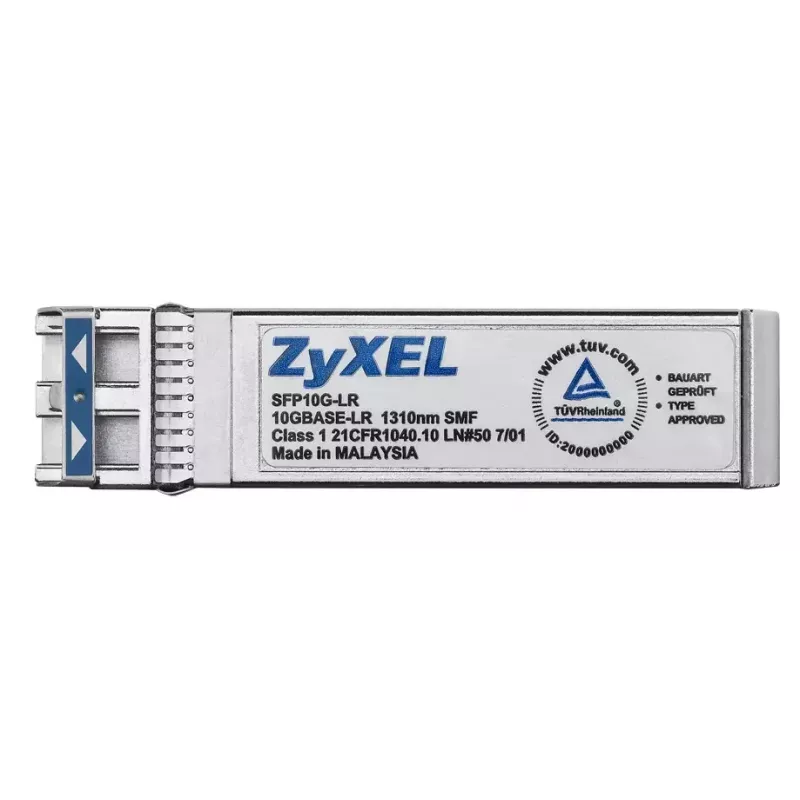

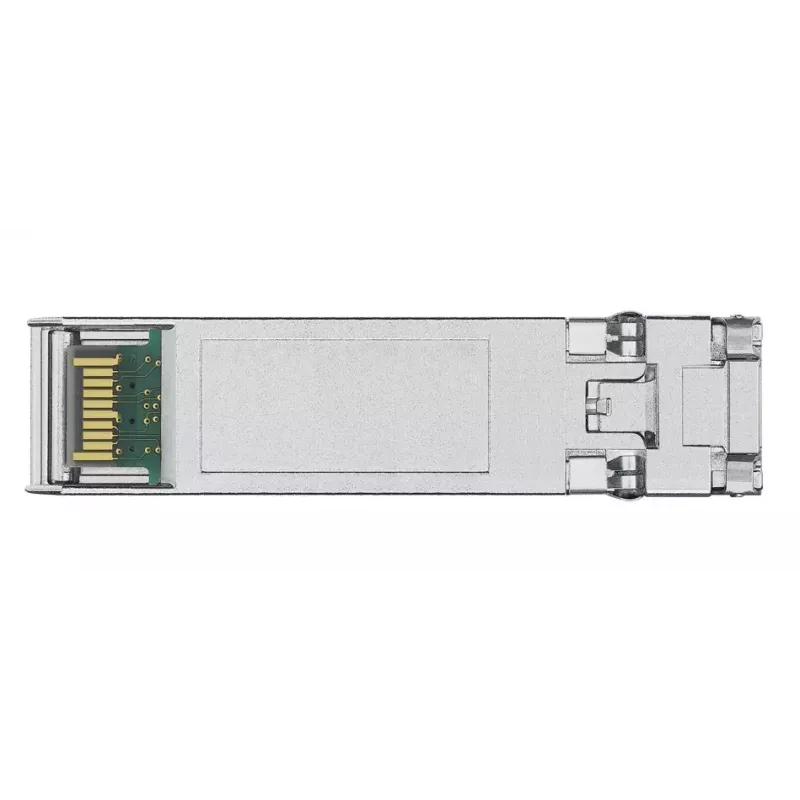

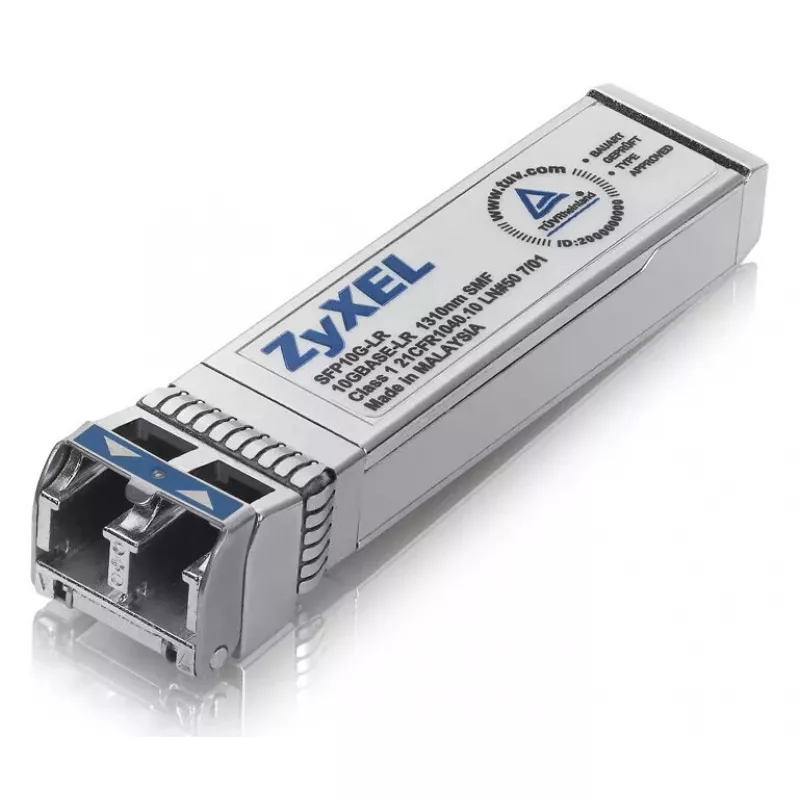

Módulo transceptor de rede Zyxel SFP10G-LR fibra ótica 10000 Mbit/s SFP+ 1310 nm

The Zyxel SFP10G-LR is a compact fiber optic transceiver module designed for high-speed data transfer up to 10,000 Mbit/s. It operates at a wavelength of 1310 nm and uses an SFP+ interface for straightforward integration into compatible networking equipment. Its small dimensions and compliance with SFP MSA make it suitable for high port density environments where reliable, long-reach fiber links are required.

Advantages

The module supports hot-pluggable installation for flexible maintenance and upgrades and has low power dissipation to reduce thermal load in dense installations. It follows industry and SFP MSA standards, ensuring interoperability with a wide range of switches and routers. The compact size enables efficient use of chassis space while delivering 10 Gbps performance.

Suitable for

• 10 Gigabit Ethernet links over single-mode fiber
• Long-reach fiber connections in data centers and telecom networks
• High port density network switches and aggregation equipment

Key specifications

• Model: Zyxel SFP10G-LR (MPN: SFP10G-LR-ZZ0101F)
• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1310 nm
• Dimensions (W×D×H): 14.8 × 56.5 × 11.8 mm
• Weight: 0.02 kg
• Standards: SFP MSA compliant

How to use

Insert the Zyxel SFP10G-LR into an appropriate SFP+ slot on your switch or router while the device is powered on or off, as the module supports hot-plugging. Connect single-mode fiber cables with suitable LC connectors to the transceiver ports, ensuring correct polishing and cleanliness of fiber ends. Configure the network equipment for 10 Gigabit operation and verify link status via device LEDs or management interface.

Recommendations

Use single-mode fiber for links at 1310 nm and follow manufacturer guidelines for maximum link distance. Keep fiber connectors clean and avoid bending beyond recommended radius. Ensure compatibility with your equipment by verifying SFP+ support and MPN when ordering replacements or spares.
