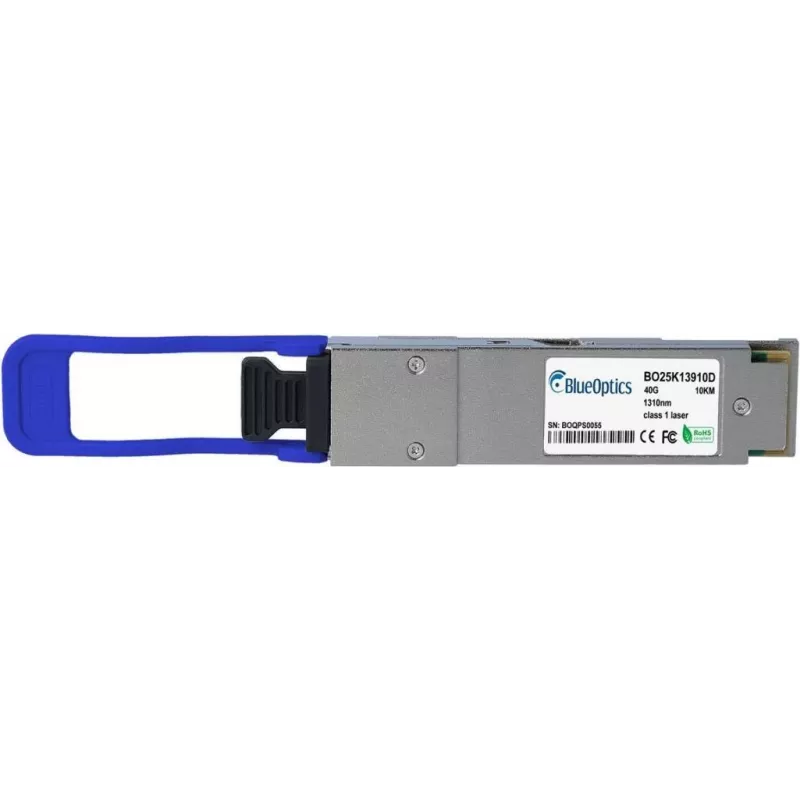

Módulo transceptor QSFP BlueOptics 740-057315-BO 40000 Mbit/s

The BlueOptics 740-057315-BO is a QSFP fiber optic transceiver module designed for 40 Gigabit Ethernet links, offering a maximum data transfer rate of 40000 Mbit/s and a maximum reach of up to 10,000 m. Housed in a silver casing and weighing approximately 20 g, this compact module uses MTP/MPO fiber connectors and is specified with an MTBF of 1,000,000 hours, making it suitable for deployment in data center uplinks, aggregation switches and high-speed backbone connections.

Advantages

The module provides high-density 40 Gigabit Ethernet connectivity in a small QSFP form factor and supports long-distance multimode or single-mode links when used with appropriate fiber and transceiver options. Its lightweight silver housing and standard MTP/MPO connector interface allow straightforward installation and hot-swap replacement in compatible QSFP ports. The published MTBF indicates long operational life under normal conditions, supporting reliable continuous operation in demanding network environments.

Suitable for

• Data center uplinks and switch-to-switch trunking
• High-speed backbone and aggregation links
• Server farms and storage area network interconnects
• Optical transmission over multimode or single-mode fiber runs up to 10 km

Key specifications

• Maximum data transfer rate: 40000 Mbit/s
• Maximum transfer distance: 10000 m
• Interface: 40 Gigabit Ethernet (QSFP)
• Fiber connector type: MTP/MPO
• Form factor: QSFP transceiver module
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Install the transceiver into a compatible QSFP port on a switch, router or other network device following the vendor's hot-swap and ESD handling procedures. Connect MTP/MPO-terminated fiber cables to the module's connector, ensuring correct fiber type and polarity for the link and verifying that the cable supports the required distance. After physical installation, verify link status and configure network settings on the connected devices as needed. If required, consult the equipment documentation for any platform-specific transceiver enablement or firmware compatibility notes.

Recommendations

Use certified MTP/MPO fiber assemblies and clean connectors to maintain signal quality. Match the transceiver to the appropriate fiber type (multimode or single-mode) and link budget for distances up to 10,000 m. Follow standard ESD precautions during handling and install in supported QSFP ports to ensure proper operation and longevity.
