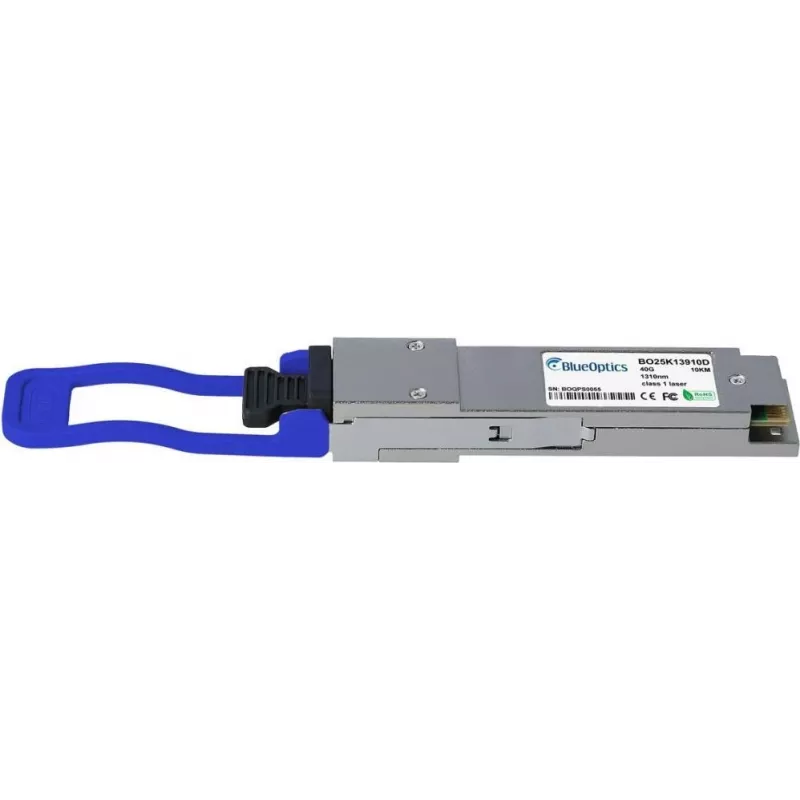

Módulo transceptor QSFP BlueOptics 740-058730-BO 40000 Mbit/s

The BlueOptics 740-058730-BO QSFP transceiver module delivers high-bandwidth fiber connectivity for 40 Gigabit Ethernet environments. Built for data centers and high-performance networks, this compact silver module supports a maximum data transfer rate of 40000 Mbit/s and a maximum transfer distance of 10000 m. With an MTBF of 1,000,000 hours and a lightweight design (20 g), it provides a reliable optical link using an MTP/MPO fiber connector and is suitable for demanding uplink and switch-to-switch applications.

Advantages

This QSFP transceiver offers a standardized 40 Gigabit Ethernet interface that simplifies integration into existing network equipment. Its MTP/MPO connector supports multi-fiber trunking for high-density deployments, while the compact, low-weight design reduces space and handling complexity. The long maximum transfer distance makes it appropriate for both short-reach and extended connections within campus and data center infrastructures, and the high MTBF indicates long-term operational stability.

Suitable for

• 40 Gigabit Ethernet uplinks between switches and routers
• High-density data center fiber trunking and spine-leaf topologies
• Inter-rack and inter-room optical links up to 10 km
• Network equipment upgrades requiring QSFP modules

Key specifications

• Maximum data transfer rate: 40000 Mbit/s
• Maximum transfer distance: 10000 m
• Ethernet interface: 40 Gigabit Ethernet (QSFP)
• Fiber optic connector: MTP/MPO
• Product colour: Silver
• Weight: 0.02 kg
• Reliability (MTBF): 1,000,000 hours

How to use

Install the module into a compatible QSFP port on your switch, router or transceiver cage following the host device manufacturer's hot-plug and ESD handling guidelines. Connect an appropriate MTP/MPO fiber cable between the module and the matching fiber infrastructure, ensuring correct polarity and connector cleanliness. Verify link status and configure the host port for 40 Gigabit Ethernet operation as required by your network equipment. For safe removal, disable the port or follow the device shutdown procedure and extract the module using the provided latch or release mechanism.

Recommendations

Maintain connector end-face cleanliness and use compatible MTP/MPO cabling to achieve optimal signal performance. Confirm compatibility with the host device's supported QSFP transceiver types and firmware before deployment. Observe electrostatic discharge precautions when handling the module and store it in protective packaging when not in use.
