Módulo transceptor QSFP BlueOptics QSFP-0040-R10-BO fibra ótica MTP/MPO

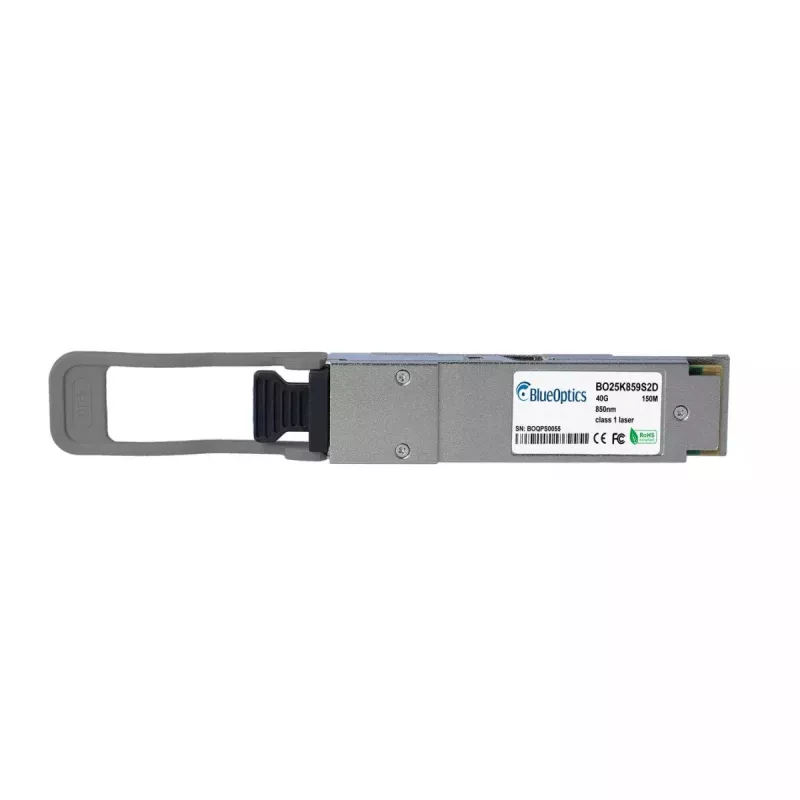

The BlueOptics QSFP-0040-R10-BO is a 40 Gigabit QSFP fiber optic transceiver module with an MTP/MPO connector designed for short-range multimode fiber links. The module supports 40 Gigabit Ethernet data rates and is intended for use in data center switches, routers and other network equipment that accept QSFP 40G modules. Built in a lightweight aluminium housing and weighing approximately 20 g, the transceiver supports optical transmission up to 150 m over multimode fiber and includes standard features expected from QSFP 40GBASE-SR4 interfaces.

Advantages

The module provides a compact QSFP form factor with MTP/MPO connectivity for parallel multimode links, allowing high-density 40G interconnects in rack and data center environments. Its aluminium construction offers a low-weight, thermally conductive enclosure suitable for hot-pluggable installation. The transceiver is designed to meet MSA-compatible mechanical and optical specifications for interoperability with a broad range of compatible network hardware and fiber patching systems.

Suitable for

Key specifications

How to use

Install the QSFP-0040-R10-BO transceiver into a compatible QSFP slot on the network device while the host is powered according to the equipment vendor’s hot-plug guidelines. Connect an appropriate MTP/MPO multimode fiber patch cord to the module and ensure that the fiber routing follows bend-radius and cleanliness best practices. Verify link status on the host device and confirm supported speeds and diagnostics via the management interface. If digital diagnostics (DDM/DOM) are available on both module and host, use the host tools to monitor parameters such as temperature, optical power and voltage.

Recommendations

For reliable operation, use multimode fiber and MTP/MPO patch cords rated for 40GBASE-SR4, keep connector endfaces clean, and follow the switch or router vendor’s compatibility list for QSFP transceiver modules. Observe manufacturer guidelines for ESD protection during handling and install in equipment that supports QSFP 40G modules and, if needed, DDM/DOM monitoring.
