Módulo transceptor QSFP BlueOptics QSFP-100G-XSR4-BO 100G 100000 Mbit/s

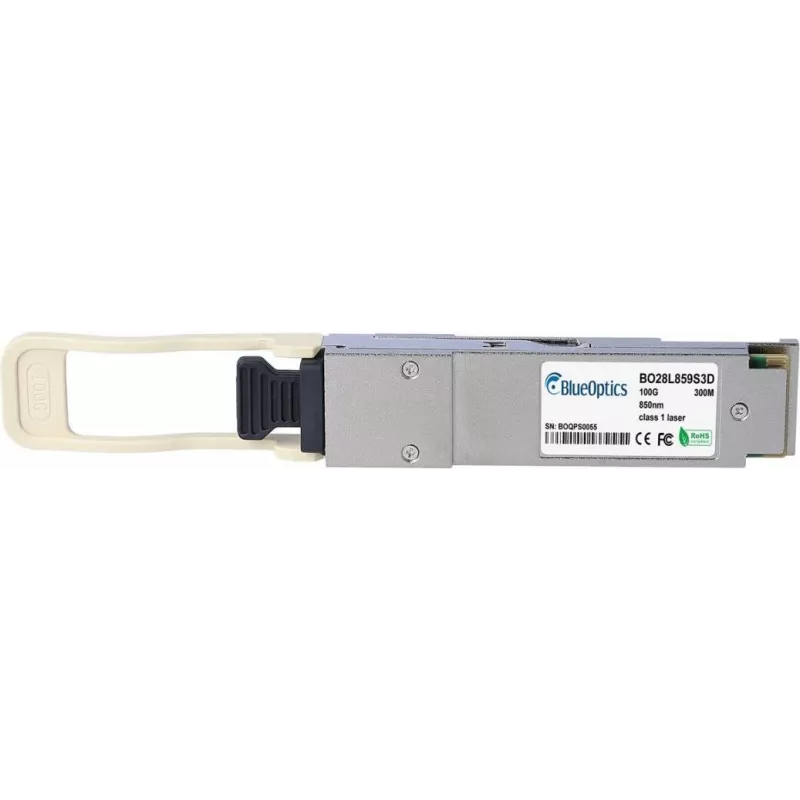

The BlueOptics QSFP-100G-XSR4-BO is a QSFP28 fiber optic transceiver module designed for high-speed optical links with a maximum data transfer rate of 100000 Mbit/s. The module supports multimode fiber transmission using an MTP/MPO connector and is intended for short-reach installations up to 100 m. Compact and lightweight at approximately 50 g with a silver housing, this transceiver implements the 100GBASE-SR4 transmission mode and fits QSFP28-compatible ports on compatible networking equipment.

Advantages

This BlueOptics QSFP28 transceiver delivers 100 Gbps throughput for high-density switch, router, and storage interconnects while using an industry-standard MPO/MTP interface for parallel multimode fiber. The compact QSFP form factor simplifies installation and replacement in compatible QSFP28 ports. Built to MSA-aligned specifications, the module supports optical multimode transmission for up to 100 meters and includes digital diagnostics functions when supported by host hardware.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP-100G-XSR4-BO into a QSFP28-compatible slot on supported networking equipment, ensuring the host device supports 100GBASE-SR4 transceivers and the DDM/DOM interface if diagnostics are required. Connect an appropriate MPO/MTP multimode fiber patch cord between transceivers or to a compatible patch panel. Verify link status and diagnostics through the host interface and follow the host vendor guidelines for hot-plug procedures to avoid port or module damage.

Recommendations

Use qualified multimode fiber (OM3/OM4 or as recommended by the system vendor) and MPO/MTP patch cords of the correct polarity and pinning to achieve the specified range and performance. Confirm host compatibility and enable DDM/DOM support in systems where remote monitoring is required. Handle the transceiver with care to prevent contamination of optical interfaces and store unused dust caps on connectors when not in use.
