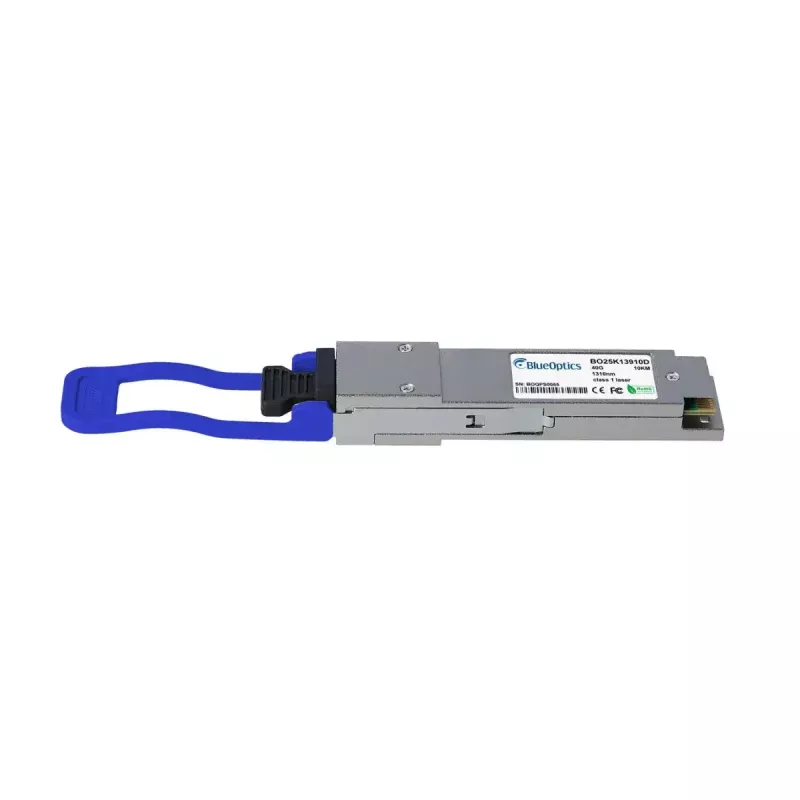

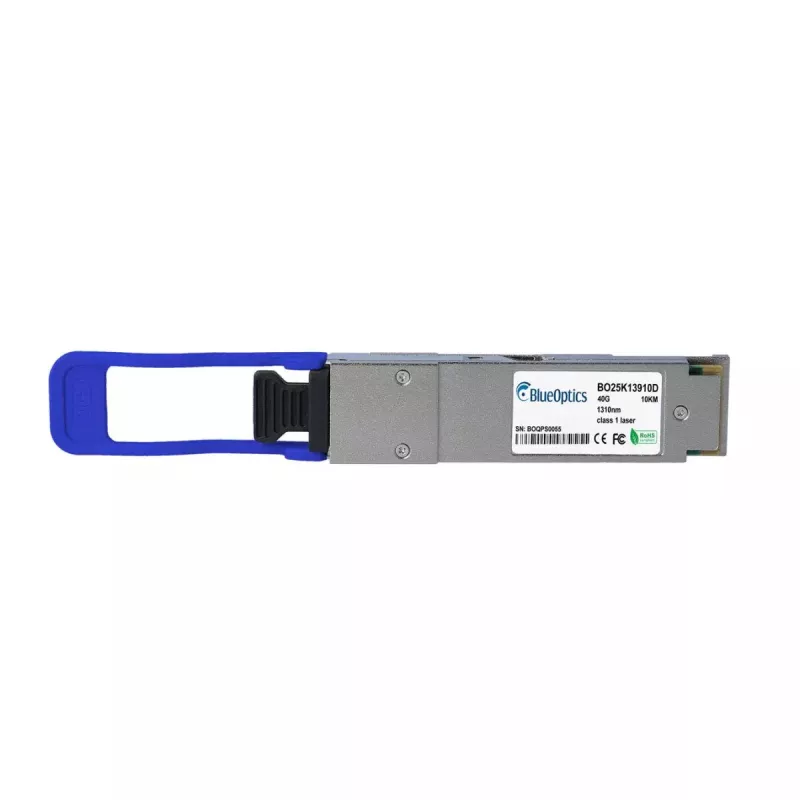

Módulo transceptor QSFP BlueOptics QSFP-10G-TR13-G-BO 40000 Mbit/s 1310 nm

The BlueOptics QSFP-10G-TR13-G-BO is a QSFP fiber optic transceiver module designed for high-speed network applications. It supports an aggregated data rate of up to 40000 Mbit/s and operates at a wavelength of 1310 nm. The module uses an MPO/MTP fiber connector and conforms to MSA QSFP form-factor requirements, making it compatible with common QSFP ports on switches, routers and storage systems. With a mean time between failures (MTBF) of 3,000,000 hours and a lightweight silver housing, this transceiver is intended for long-term, reliable optical data transmission over multimode fiber up to 10,000 m under suitable conditions.

Advantages

The BlueOptics QSFP-10G-TR13-G-BO offers simultaneous transmit and receive capability at 1310 nm through MPO/MTP connectivity, enabling compact 40GBASE-PLR4 deployments where high density and low latency are required. Components are selected to meet MSA compatibility and to work with a wide range of vendor hardware that accepts compatible QSFP modules. Integrated digital diagnostics (DDM/DOM) support enables real-time monitoring of supply voltage, laser current, transmit/receive power and temperature for simplified remote troubleshooting. A high MTBF and industry-grade components contribute to a long service life and stable optical links.

Suitable for

Key specifications

How to use

Install the BlueOptics QSFP-10G-TR13-G-BO by inserting the QSFP module into a compatible QSFP port on the target device until it latches. Connect an appropriate MPO/MTP fiber patch cable between the module and the mating fiber infrastructure or another compatible transceiver. Verify link status and diagnostics via the host device management interface; enable DDM/DOM support on the host if remote diagnostics are required. Follow the host vendor instructions for any required firmware or configuration settings to ensure module recognition and correct operation.

Recommendations

Use high-quality MPO/MTP patch cables and maintain proper fiber cleanliness when mating connectors. Ensure the host hardware supports QSFP-10G-TR13-G compatible modules and DDM/DOM features if monitoring is needed. Observe manufacturer guidelines for insertion/removal and ESD protection to preserve module lifetime and maintain optimal optical performance.
