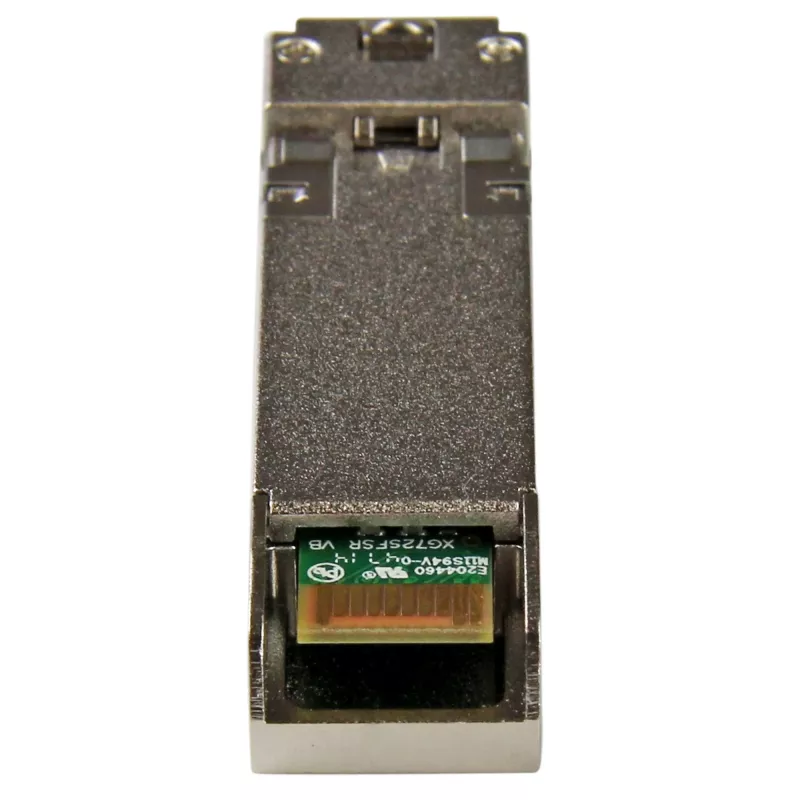

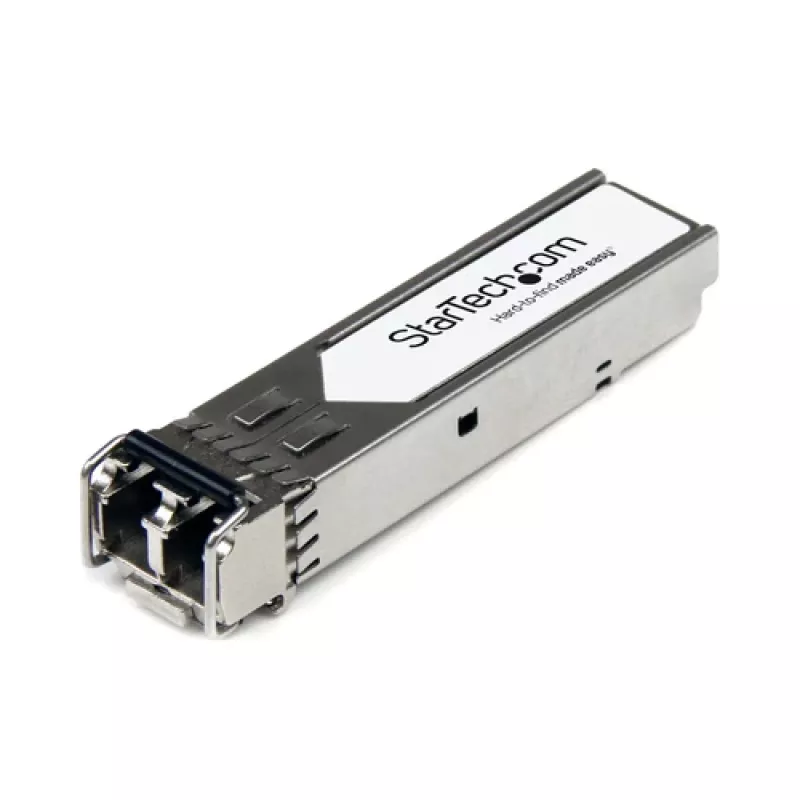

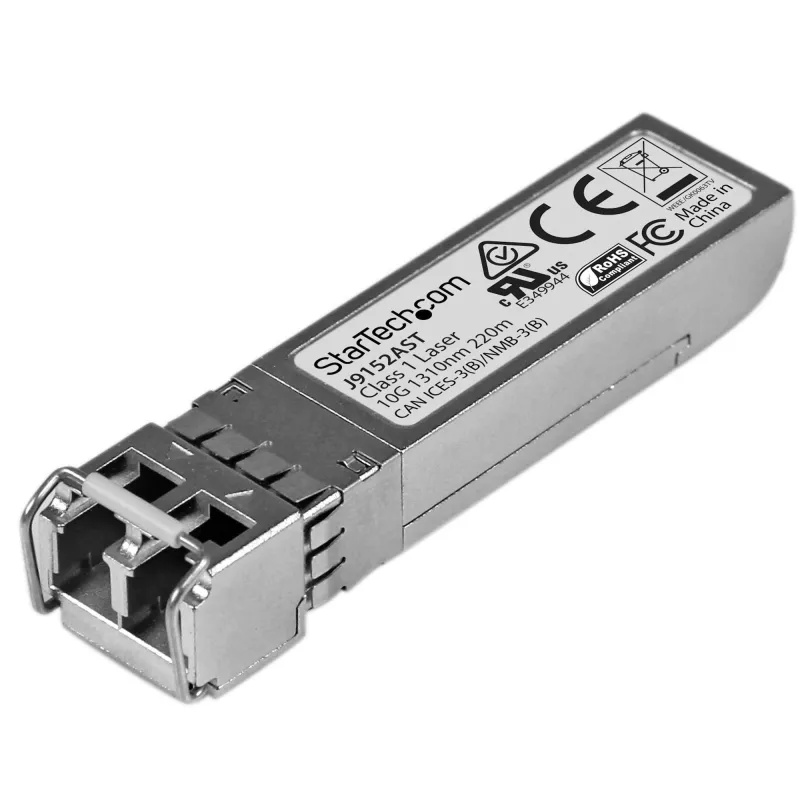

Módulo transceptor SFP+ 10 Gigabit fibra ótica 10GBase-LRM compatível com StarTech.com J9152AST HP J9152A - MM LC - 220m - 1310nm

For networks where standard multimode transceivers fall short, the StarTech.com J9152AST delivers extended reach over legacy multimode fiber. This HP J9152A-compatible SFP+ module uses 10GBase-LRM technology to push 10 Gbps up to 220 meters on OM1/OM2/OM3 multimode cabling—far beyond typical 10GBase-SR limits. It is an ideal drop-in replacement for HP J9152A optics in switches, routers, and servers, with no configuration changes required.

Highlights

• 10 Gbps data rate with 1310 nm wavelength for long-distance multimode links
• LC duplex connector for standard multimode fiber infrastructure
• Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, laser bias, and optical power
• Hot-swappable SFP+ form factor for easy installation and replacement
• Low power consumption (<1.0 W) and wide operating temperature range (0°C to 70°C)
• Compliant with IEEE 802.3ae 10GBase-LRM, RoHS, CE, FCC, and TAA

In daily use

This transceiver is engineered for enterprise and campus networks that need to extend 10G links over existing multimode fiber. It is fully compatible with HP J9152A specifications, ensuring seamless interoperability with HP and other major brands. The zinc alloy housing provides durability, while the DDM interface allows network administrators to monitor link health proactively. With an MTBF of over 1.9 million hours, it delivers reliable performance in demanding environments.

Full specifications

• Transceiver type: SFP+
• Data rate: 10 Gbps
• Wavelength: 1310 nm
• Maximum transfer distance: 220 m
• Fiber type: Multimode fiber (MMF)
• Connector: LC duplex
• Standard: IEEE 802.3ae 10GBase-LRM
• DDM/DOM support: Yes
• Hot-swappable: Yes
• Power consumption: <1.0 W
• Operating temperature: 0°C to 70°C (32°F to 158°F)
• Storage temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% RH (non-condensing)
• Form factor: Plug-in module
• Duplex mode: Full-duplex
• Product material: Zinc alloy
• MTBF: 1,936,520 hours
• Compliance: RoHS, CE, FCC, TAA

Final note

When you need a cost-effective, reliable alternative to OEM optics with extended multimode reach, the StarTech.com J9152AST is a proven choice. Backed by StarTech.com's lifetime warranty and free technical support, it delivers performance and peace of mind.
