Módulo transceptor SFP BlueOptics 10-2296-01-BO 155 Mbit/s 1550 nm

The BlueOptics 10-2296-01-BO SFP transceiver module is a compact fiber optic transceiver designed for single-mode optical links. It supports a maximum data transfer rate of 155 Mbit/s and operates at a wavelength of 1550 nm. The module is housed in a durable metal casing, has a silver finish and a lightweight design (approximately 0.02 kg). Built to industry conventions for SFP form-factor interfaces, it offers a reliable solution for point-to-point optical connections where a 1550 nm wavelength is required.

Advantages

The module provides a durable metal enclosure and compliance with RoHS, FCC and CE standards for regulatory conformity. With a stated MTBF of 1,000,000 hours, it is intended for long-term deployment in network equipment. Its SFP interface and single-mode 1550 nm operation make it compatible with standard SFP slots and fiber runs designed for that wavelength and rate.

Suitable for

• Single-mode fiber point-to-point links operating at 1550 nm
• Network equipment with SFP slots requiring 155 Mbit/s modules
• Environments where a compact, metal-cased transceiver is preferred for durability

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Wavelength: 1550 nm
• Casing: metal housing
• Colour: silver
• Weight: approx. 0.02 kg
• Regulatory compliance: RoHS, FCC, CE
• Mean Time Between Failures (MTBF): 1,000,000 hours

How to use

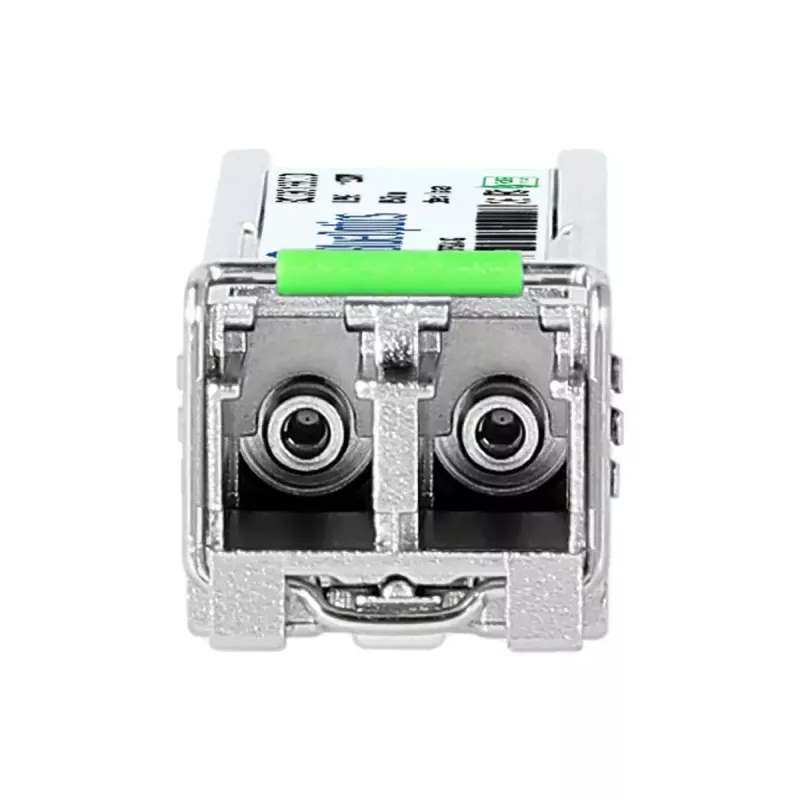

Insert the BlueOptics SFP transceiver into an available SFP slot on compatible network equipment following the equipment manufacturer’s hot-swap and insertion guidelines. Connect a single-mode fiber with the appropriate LC connector to the transceiver’s duplex LC interface, ensuring correct transmit/receive orientation. Configure the host device for the required data rate and optical parameters if necessary, and verify link status through the device management interface or LEDs.

Recommendations

Use single-mode fiber patch cords and certified LC connectors for best optical performance, and verify that the host device supports a 155 Mbit/s SFP at 1550 nm. Confirm environmental and software compatibility (including any digital diagnostic support) with the equipment manufacturer before deployment.
