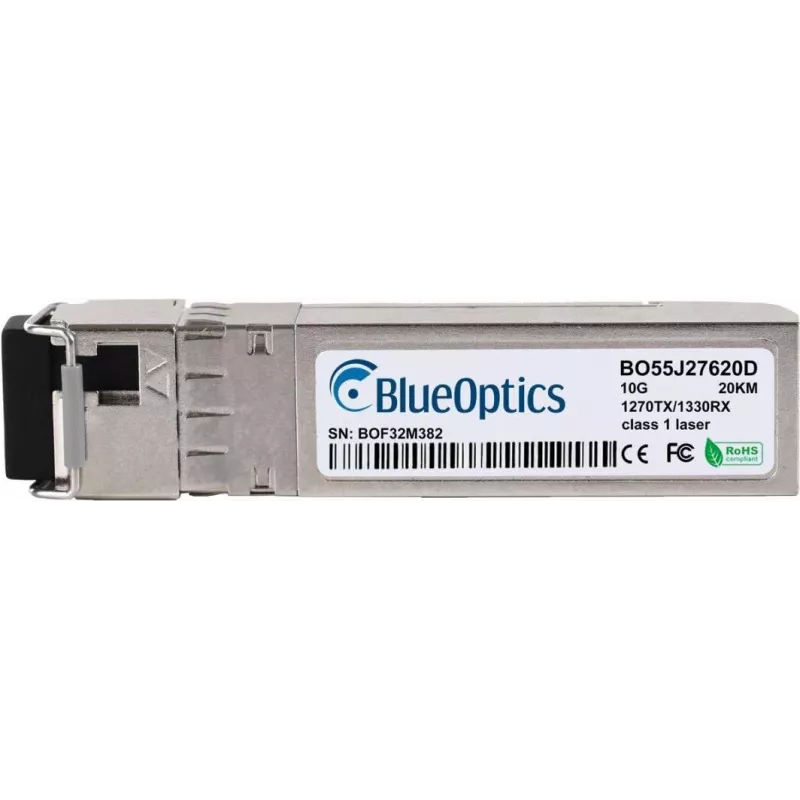

Módulo transceptor SFP+ BlueOptics 100-02168-BO 10000 Mbit/s 1270 nm

The BlueOptics 100-02168-BO SFP+ transceiver module is designed for 10 Gigabit Ethernet connections over single-mode fiber. Supporting a maximum data transfer rate of 10000 Mbit/s and operating at a wavelength of 1270 nm, this compact SFP+ form factor module enables high-speed link establishment up to 20,000 meters. The module is lightweight and finished in silver, and its stated mean time between failures (MTBF) of 1,000,000 hours indicates suitability for continuous network operation. Compliance with CE, FCC, and RoHS standards ensures regulatory and environmental conformity.

Advantages

The module's SFP+ form factor provides hot-pluggable installation and compatibility with a wide range of switches and routers that accept SFP+ transceivers. A 10 Gigabit Ethernet interface and 1270 nm wavelength support long-reach single-mode fiber links up to 20 km, while a low weight contributes to ease of handling and installation. Regulatory compliance and a high MTBF value contribute to reliable, standards-conformant performance in data center and enterprise environments.

Suitable for

• High-speed backbone and aggregation links in enterprise networks
• Long-distance connections between campus buildings and data centers
• Upgrading existing SFP+ ports to support 10 Gbit/s single-mode fiber
• Environments requiring standardized, hot-swappable transceivers

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1270 nm
• Maximum transfer distance: 20000 m
• Interface type: 10 Gigabit Ethernet
• Fiber optic connector: LC
• Form factor: SFP+
• Weight: 0.02 kg
• Colour: Silver
• Designed for single-mode fiber links
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Ensure the target switch or router supports SFP+ transceivers and 10 Gigabit Ethernet operation. Power down the device if recommended by the manufacturer, insert the transceiver into an available SFP+ slot until it seats securely, and then connect a compatible LC-terminated single-mode fiber cable. After installation, verify link status and speed via the network device management interface and confirm that the transceiver is recognized and operating at the expected wavelength and data rate.

Recommendations

Handle the transceiver by its body to avoid contaminating the fiber connector; keep protective dust caps on the LC connector until just before connection. Use compatible single-mode fiber cable and follow vendor guidelines for link budgets and connector cleanliness. For long-term reliability, ensure adequate cooling and avoid exceeding the device's rated environmental conditions.
