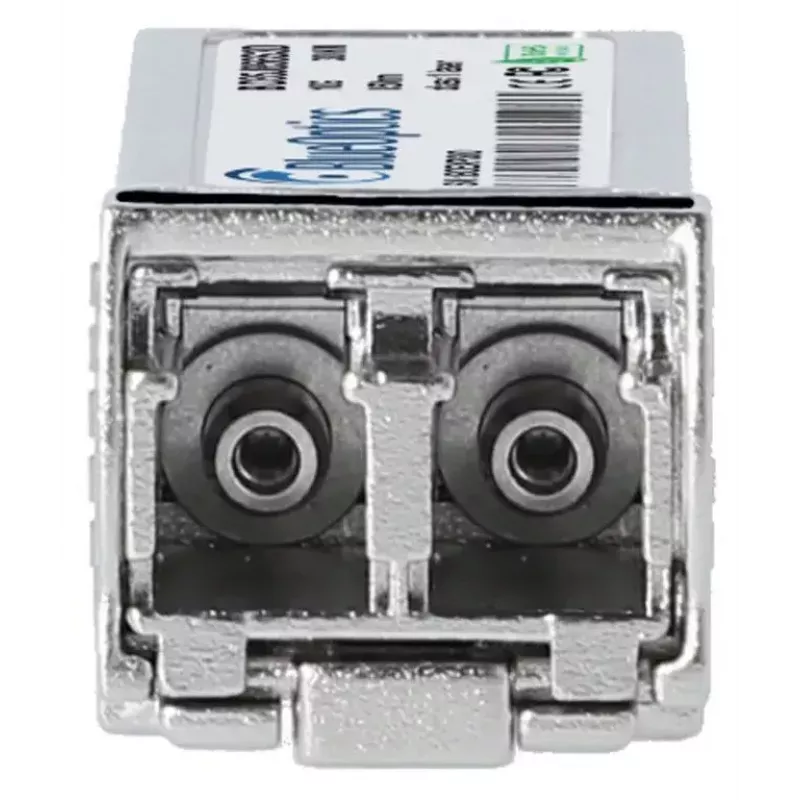

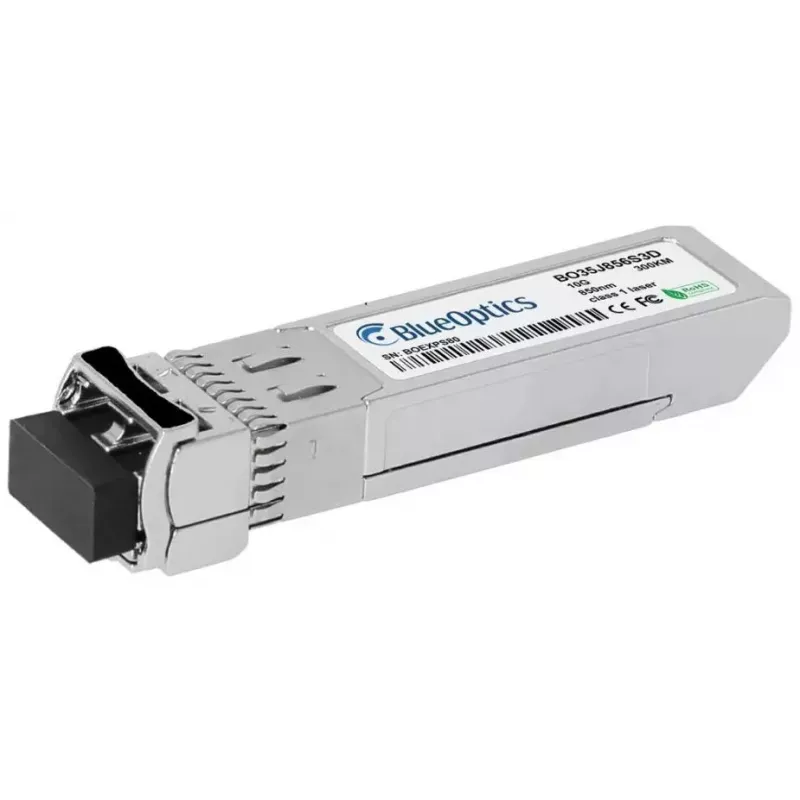

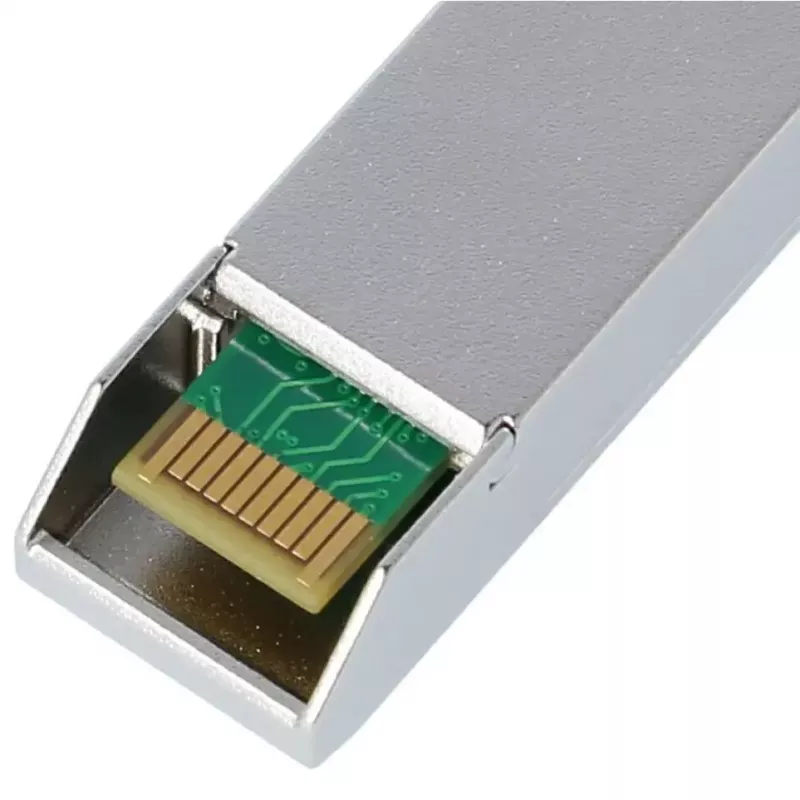

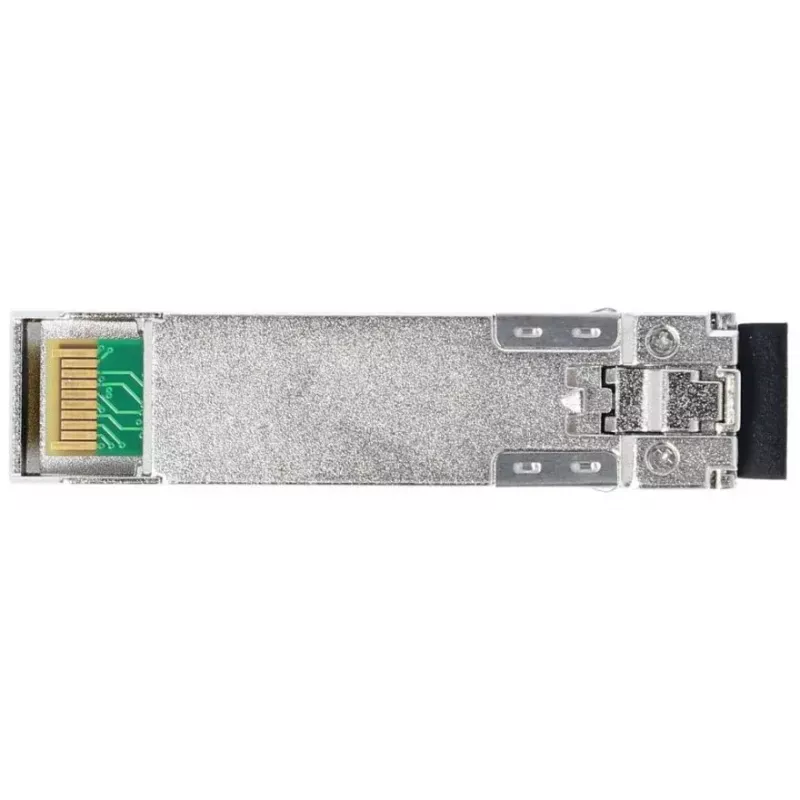

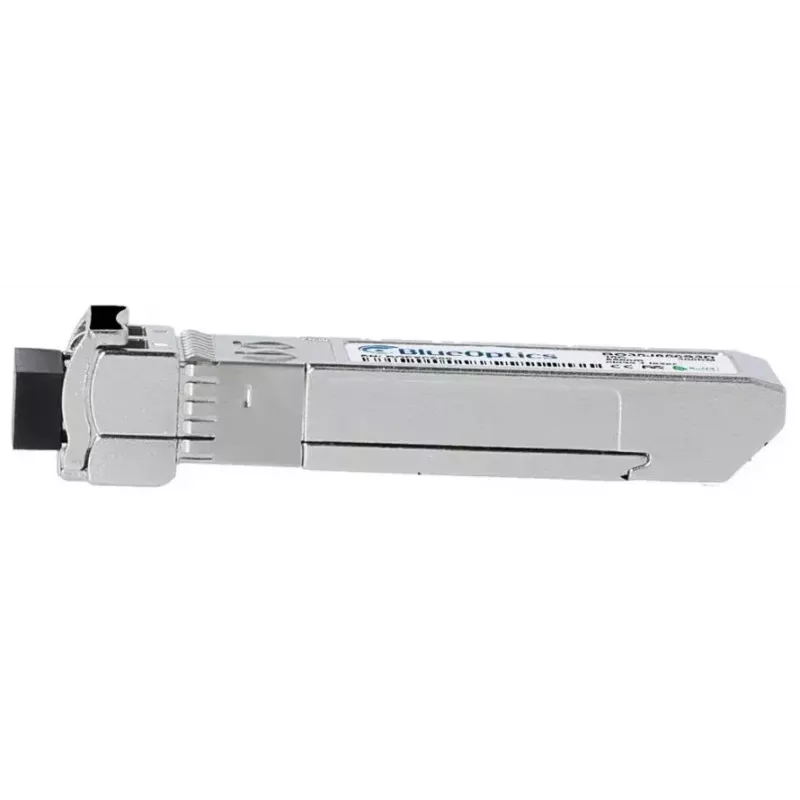

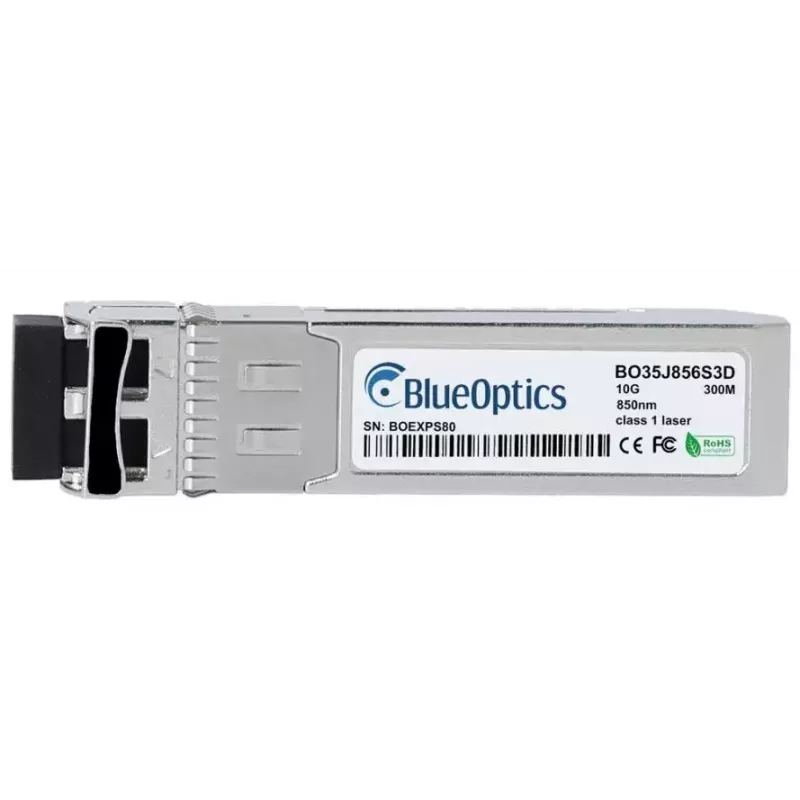

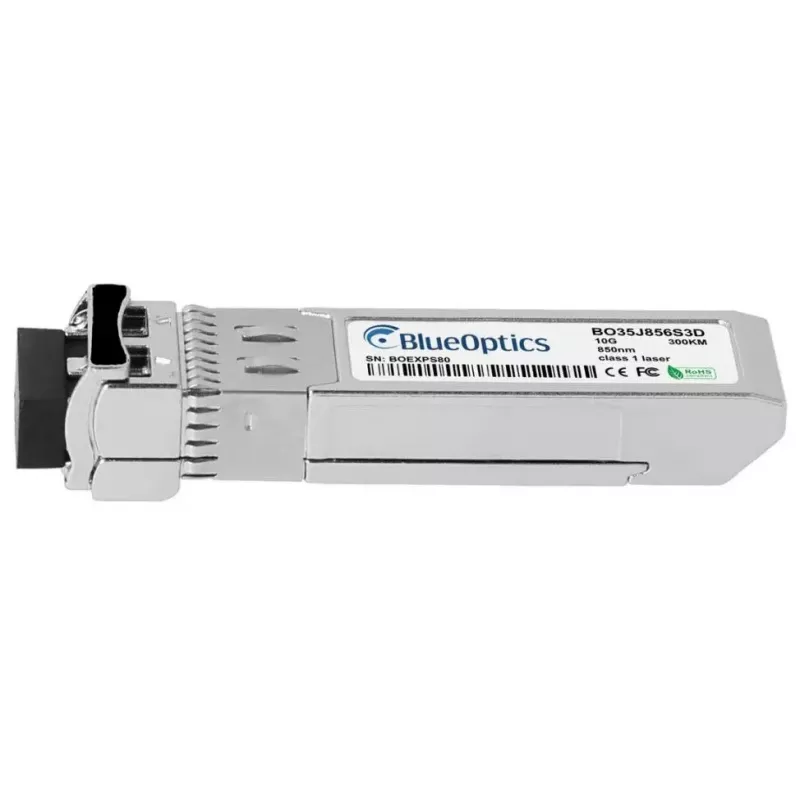

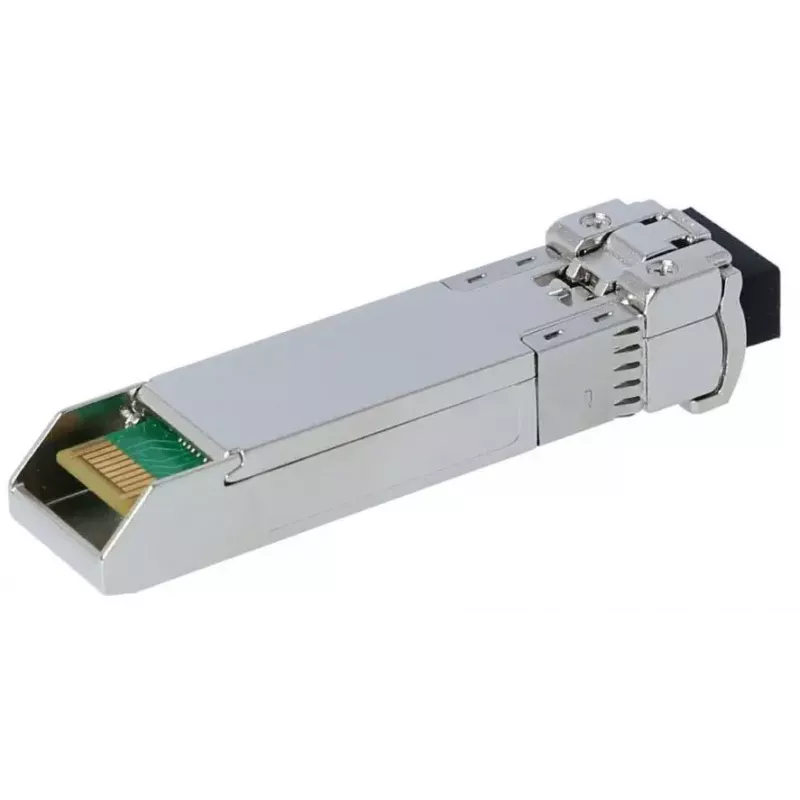

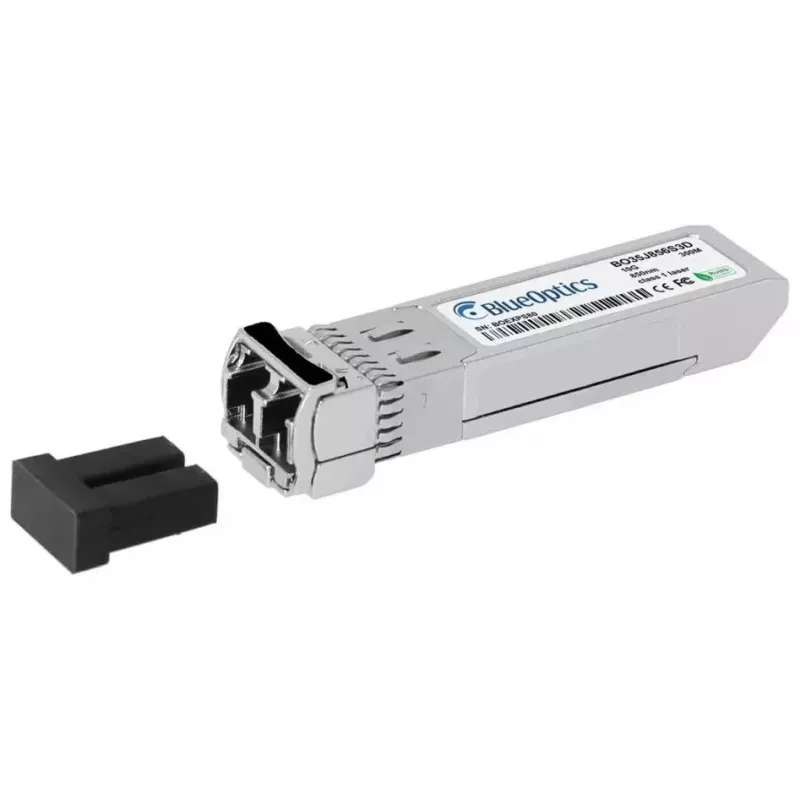

Módulo transceptor SFP+ BlueOptics 3HE09326AA-BO fibra ótica LC alumínio

The BlueOptics 3HE09326AA-BO is a 10G SFP+ fiber optic transceiver module with an LC duplex connector and an aluminium housing. Designed for multimode fiber links, this module supports 10 Gigabit Ethernet and similar high-speed optical protocols over short-reach multimode cabling. The compact SFP+ form factor and a lightweight construction (approximately 20 g) make it suitable for a wide range of network equipment that accepts MSA-compliant SFP+ modules.

Advantages

The aluminium housing provides mechanical robustness and EMI resilience while maintaining a low weight for flexible installation. The module follows common SFP+ mechanical and electrical standards, enabling compatibility with many networking platforms that support MSA-compliant 10G SFP+ transceivers. It supports simultaneous transmit and receive operation via an LC duplex interface and includes digital diagnostic monitoring functionality when used in hardware that exposes DDM/DOM parameters.

Suitable for

• 10 Gigabit Ethernet short-reach multimode fiber links
• Interconnection of switches, routers and storage systems supporting SFP+
• Data centre uplinks and aggregation ports
• Fiber patch panel to switch connections within campus and enterprise LANs

Key specifications

• Form factor: SFP+
• Connector: LC duplex
• Transmission type: multimode fiber (850 nm optics for short reach)
• Supported data rate: up to 10 Gbit/s
• Housing material: aluminium (product colour: aluminium)
• Weight: approximately 0.02 kg
• MSA-compliant mechanical and electrical interface
• Supports digital diagnostic monitoring (DDM/DOM) where platform-supported

How to use

Install the module into an SFP+ slot of a compatible network device until it latches. Connect an LC duplex multimode fiber patch cable (matching transmit and receive fibers) between the transceiver and the remote transceiver or patch panel. Ensure the host device is configured to recognize SFP+ modules and, if required, enable any vendor-specific settings. Verify link status and, if available, monitor DDM/DOM parameters to confirm optical power, supply voltage and temperature.

Recommendations

Use OM3/OM4 multimode fiber for reliable short-reach 10G links and keep connectors clean to avoid signal loss. Confirm that the target network hardware supports third-party SFP+ modules and DDM if you need real-time diagnostics.
