Módulo transceptor SFP+ BlueOptics 430-4585-BO fibra ótica 40000 m

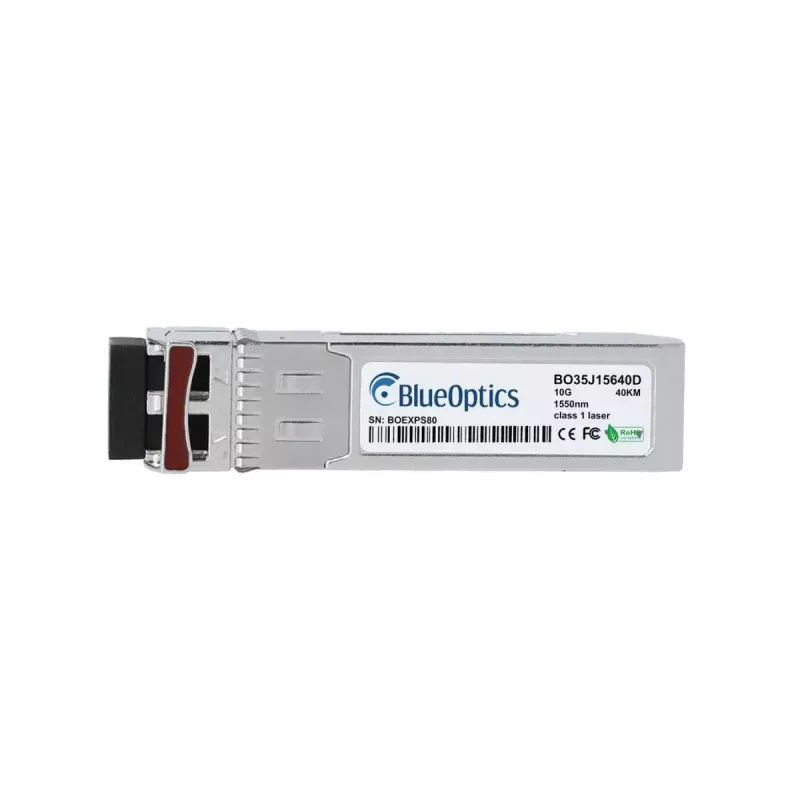

The BlueOptics 430-4585-BO SFP+ transceiver module is a fiber optic 10GBASE-ER solution designed for long-distance single-mode links up to 40,000 meters. Housed in an aluminium casing and weighing approximately 20 grams, this SFP+ module supports LC duplex connections and transmits and receives at 1550 nm, following MSA standards for interoperable hot-pluggable use in compatible network equipment. The module is intended for applications requiring sustained 10 Gbit/s throughput over extended distances with immunity to electromagnetic interference.

Advantages

The compact aluminium housing provides mechanical robustness and low weight while aiding heat dissipation. Compliance with SFP+ MSA standards and LC duplex interface enables broad compatibility with major network switches, routers and storage systems that accept 10GBASE-ER SFP+ transceivers. Single-mode fiber operation at 1550 nm supports long reach up to 40 km and the module can operate with digital diagnostic monitoring (DDM/DOM) when supported by the host hardware. The design focuses on reliable optical performance and long operational lifetime.

Suitable for

• 10 Gbit/s long-reach single-mode fiber links (up to 40 km)
• Data center interconnects between switches and routers
• Metro and campus backbone connections
• Storage area network links and high-speed Ethernet or Fibre Channel over Ethernet

Key specifications

• Form factor: SFP+
• Optical wavelength: 1550 nm (TX/RX)
• Maximum reach: up to 40,000 meters (40 km) over single-mode fiber
• Connector type: LC duplex
• Supported data rate: 10 Gbit/s (10GBASE-ER)
• Housing material: aluminium
• Weight: approximately 0.02 kg
• Digital diagnostics: supported when enabled by host hardware (DDM/DOM, SFF-8472 compliant)

How to use

Install the SFP+ transceiver into an SFP+ slot on a compatible switch, router or storage device while the host is powered down or following the vendor’s hot-swap instructions. Use LC duplex single-mode fiber patch cables to connect transceivers on each end of the link, ensuring correct polarity. Verify link parameters and enable DDM/DOM in your host system if you require real-time diagnostic data such as TX power, RX power and temperature. Confirm the device firmware accepts third-party SFP+ modules if the host implements vendor checks.

Recommendations

For optimal link quality and range, pair the module with single-mode LC duplex patch cords and, where possible, use low-loss connectors and properly installed fiber panels. Ensure host hardware supports 10GBASE-ER optics and DDM/DOM if diagnostics are required. Observe ESD precautions and keep optical ports capped when not in use to protect the transceiver and fiber endfaces.
