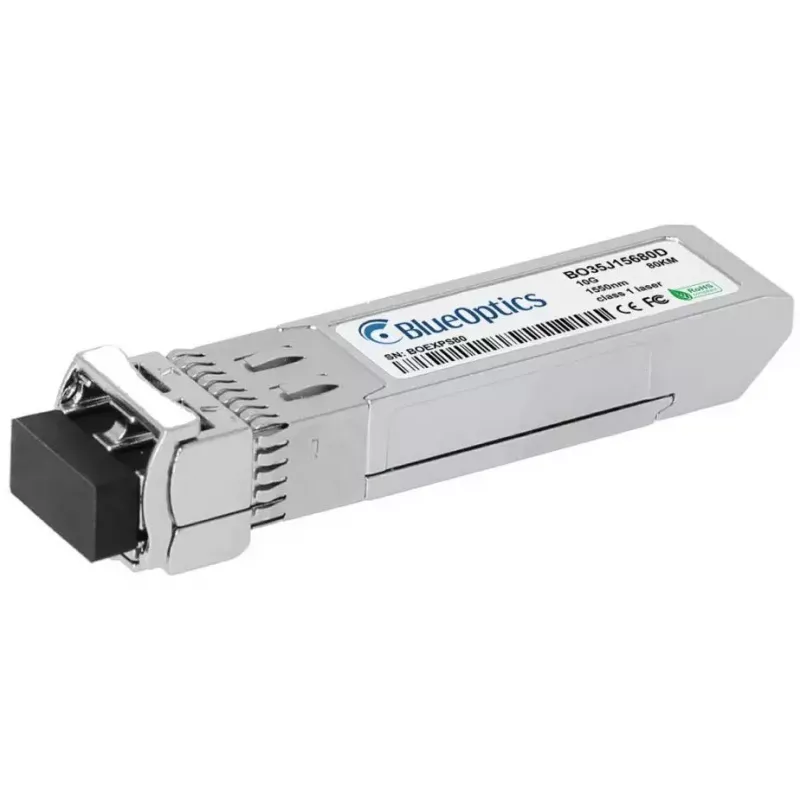

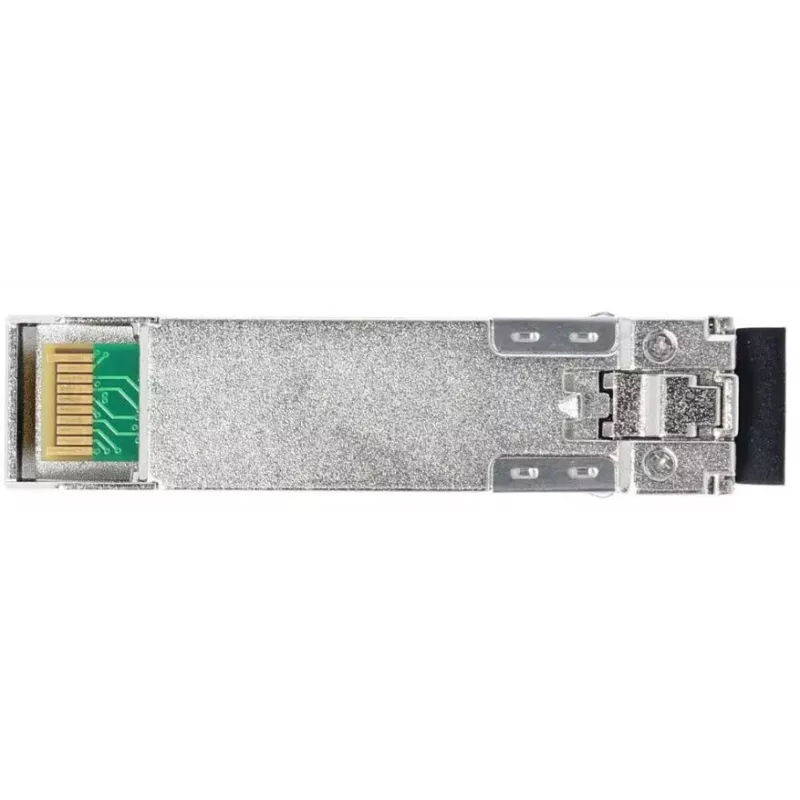

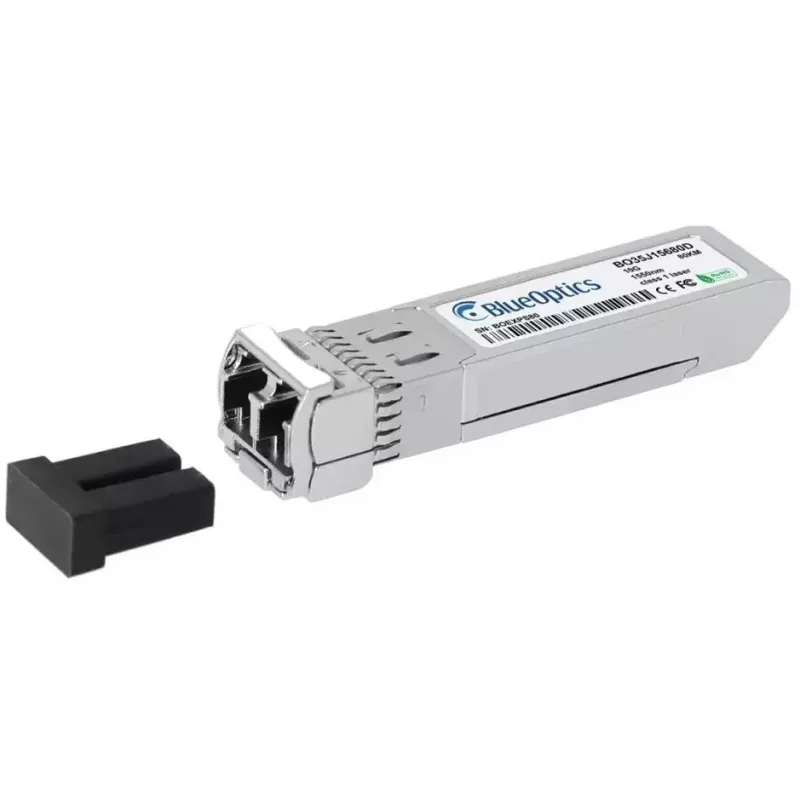

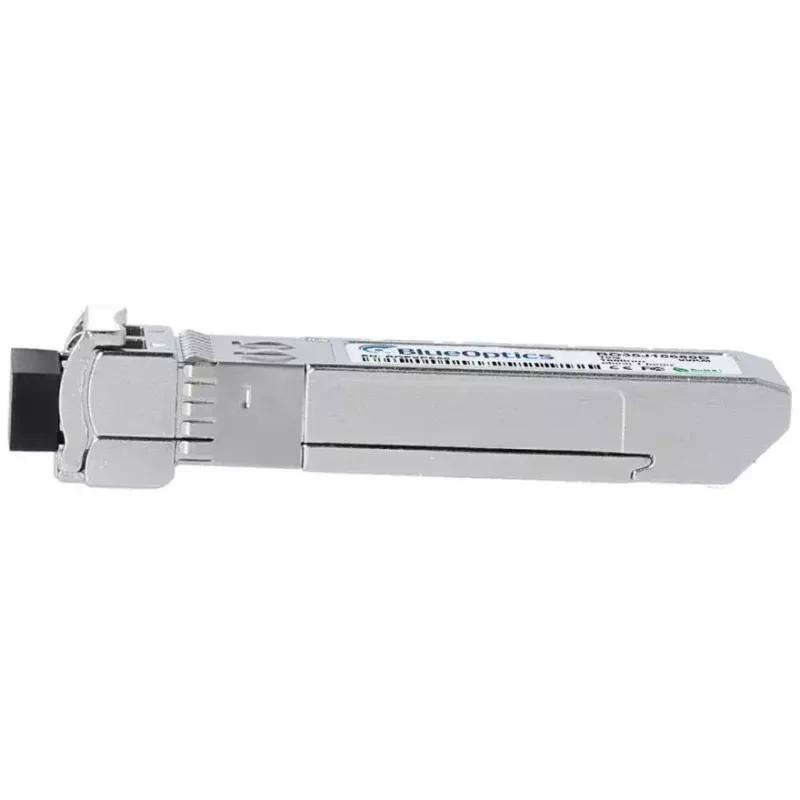

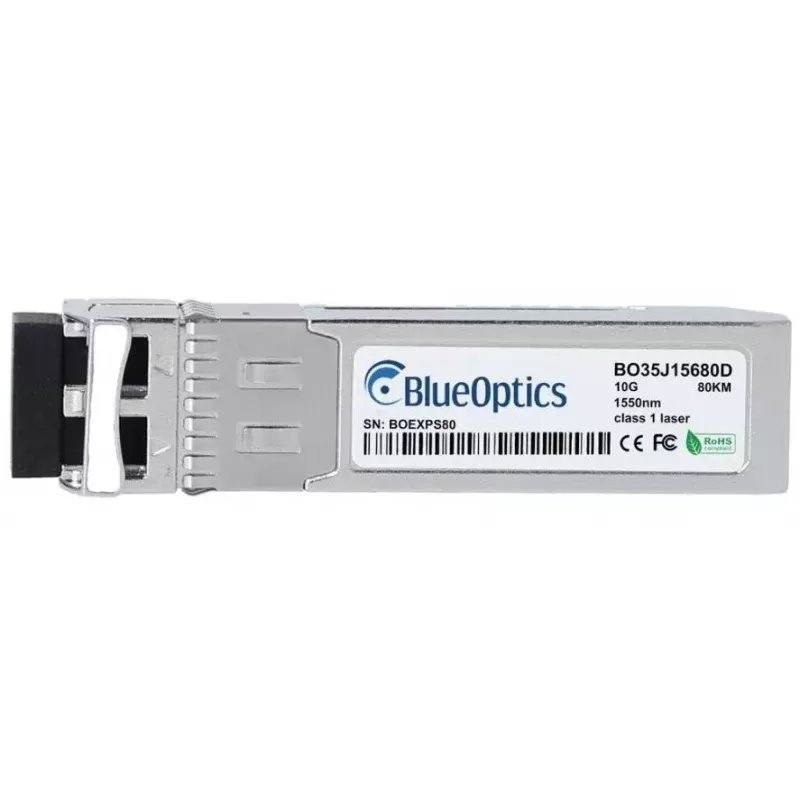

Módulo transceptor SFP+ BlueOptics 740-052562-BO 80000 m alumínio 20 g

The BlueOptics 740-052562-BO SFP+ transceiver module is a single-mode fiber optic 10GBASE-ZR compatible unit designed for high-speed data transmission up to 80,000 m. Encased in an aluminium housing and weighing approximately 20 g, this compact SFP+ module uses an LC duplex connector and operates with 1550 nm transmit and receive wavelengths. It follows MSA standards and is intended for use in compatible networking equipment that supports 10GBASE-ZR optics.

Advantages

This SFP+ module supports long-range 10 Gbps optical links over single-mode fiber with reduced electromagnetic interference and stable signal quality. The aluminium casing provides mechanical protection and thermal dissipation while the small, hot-pluggable SFP+ form factor allows straightforward installation in switches, routers and storage systems. The module is manufactured to industry MSA specifications and includes digital diagnostics monitoring (DDM/DOM) capability when supported by the host hardware.

Suitable for

• Long-distance 10 Gbps links over single-mode fiber (up to 80 km)
• Core and aggregation switches and routers with SFP+ slots
• Storage area networks and data center uplinks
• Redundant or geographically separated network segments

Key specifications

• Interface type: SFP+
• Data rate: 10 Gbps (10GBASE-ZR compatible)
• Reach: up to 80,000 m (80 km) over single-mode fiber
• Wavelength: 1550 nm (transmit and receive)

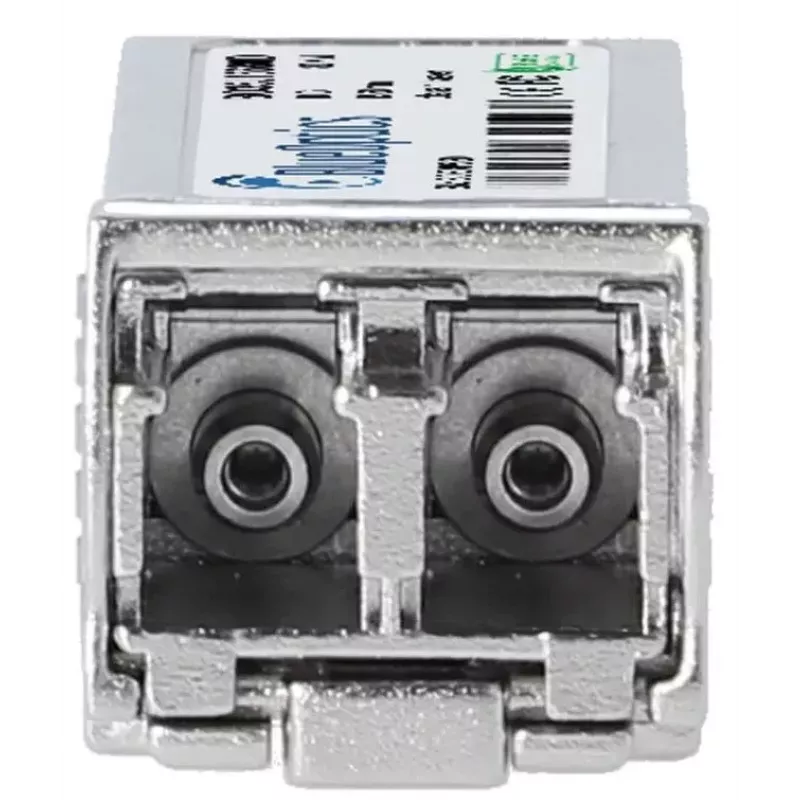

• Connector: LC Duplex
• Form factor: hot-pluggable SFP+
• Enclosure: aluminium
• Weight: approx. 20 g
• Digital diagnostics monitoring: supported when host hardware provides DDM/DOM support

How to use

Insert the BlueOptics SFP+ module into a compatible SFP+ slot of your network device while the system is powered according to the device manual; the transceiver is hot-pluggable but following the host vendor’s guidelines reduces the risk of configuration issues. Connect an LC duplex single-mode fiber patch cord to the module’s LC ports ensuring correct TX/RX orientation. Verify the link state and module recognition in the device management interface and enable DDM/DOM monitoring if available in the host to observe power, temperature and other diagnostics parameters.

Recommendations

Use quality single-mode fiber and LC duplex patch cords suited for long-reach 1550 nm transmission, keep fiber connectors clean, and ensure host device firmware supports third-party SFP+ modules and DDM/DOM functions. For best long-term reliability, follow the network equipment manufacturer’s installation and maintenance procedures.
