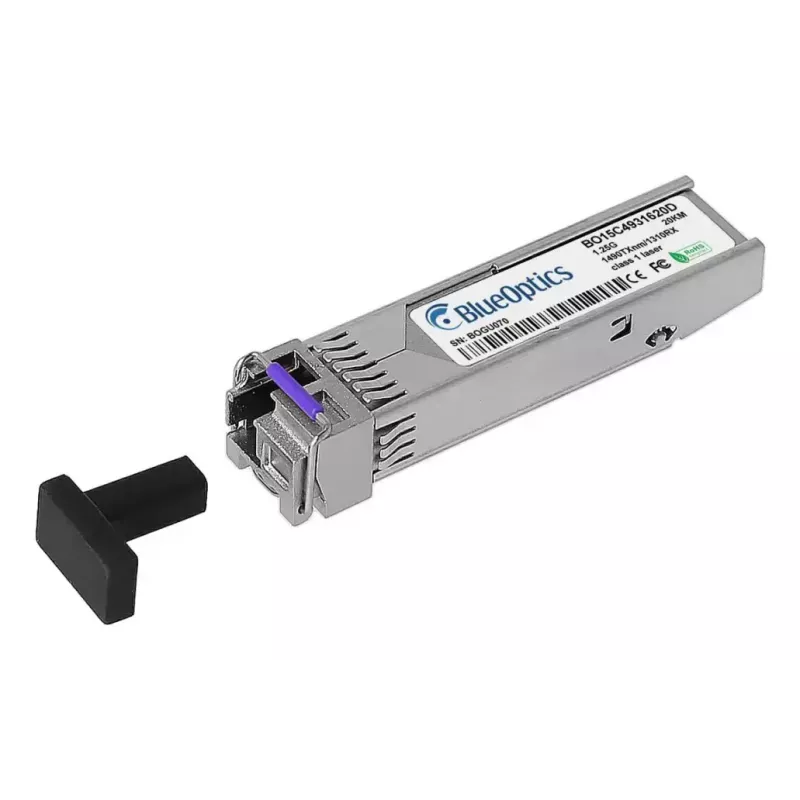

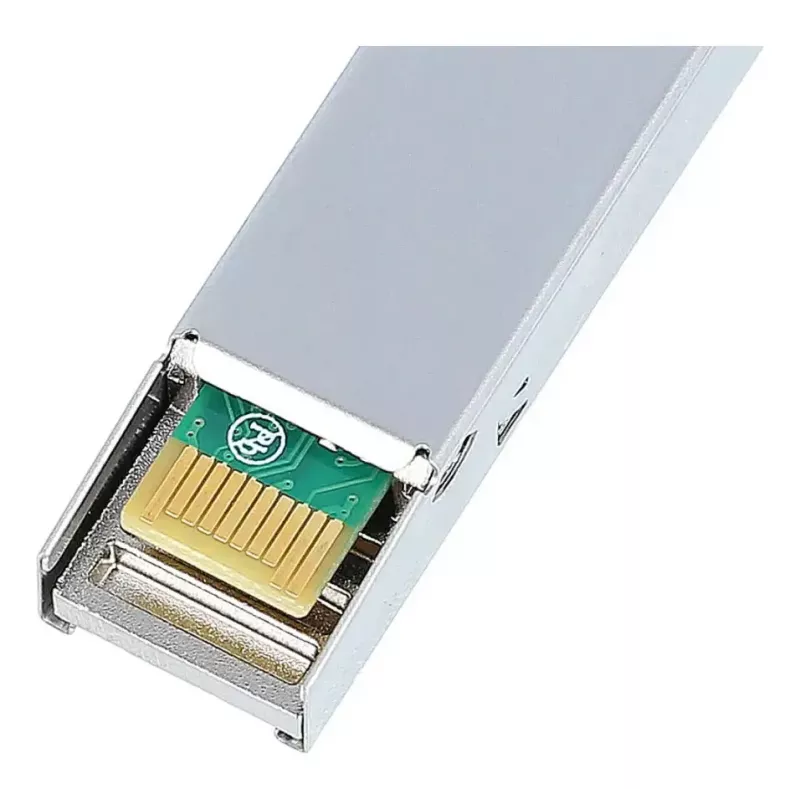

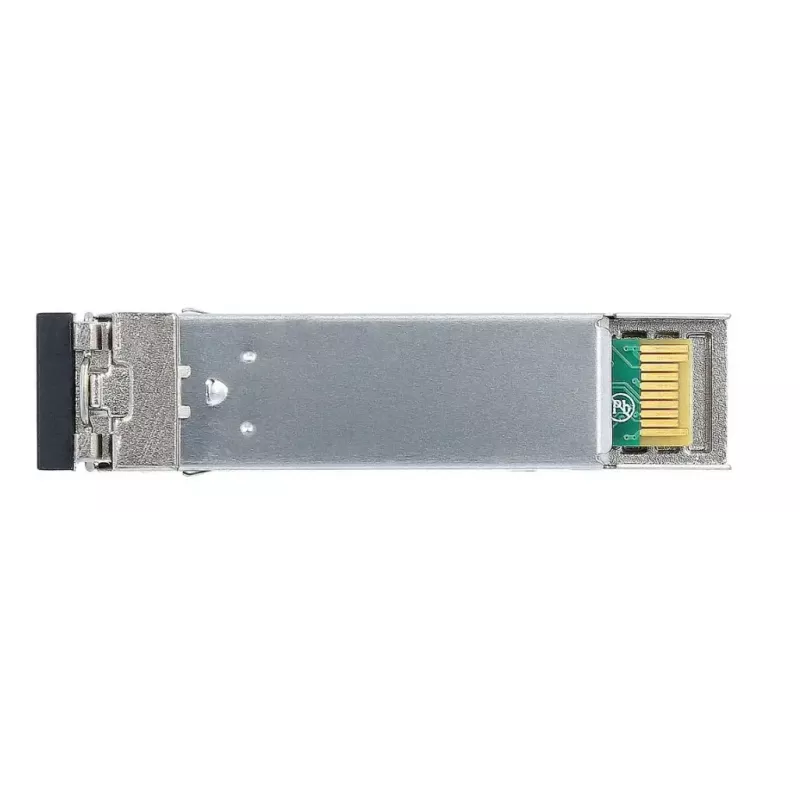

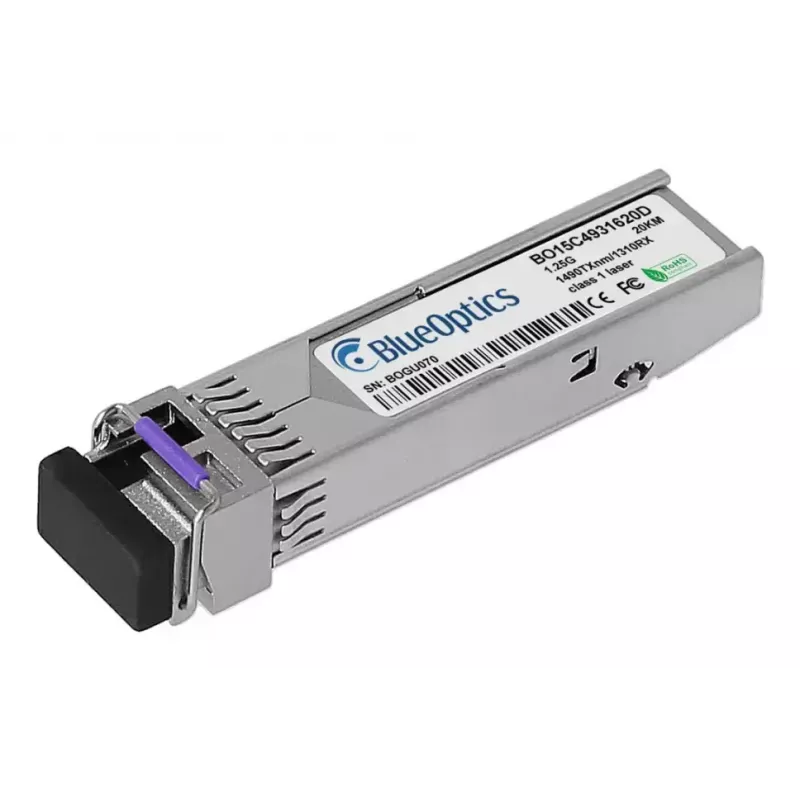

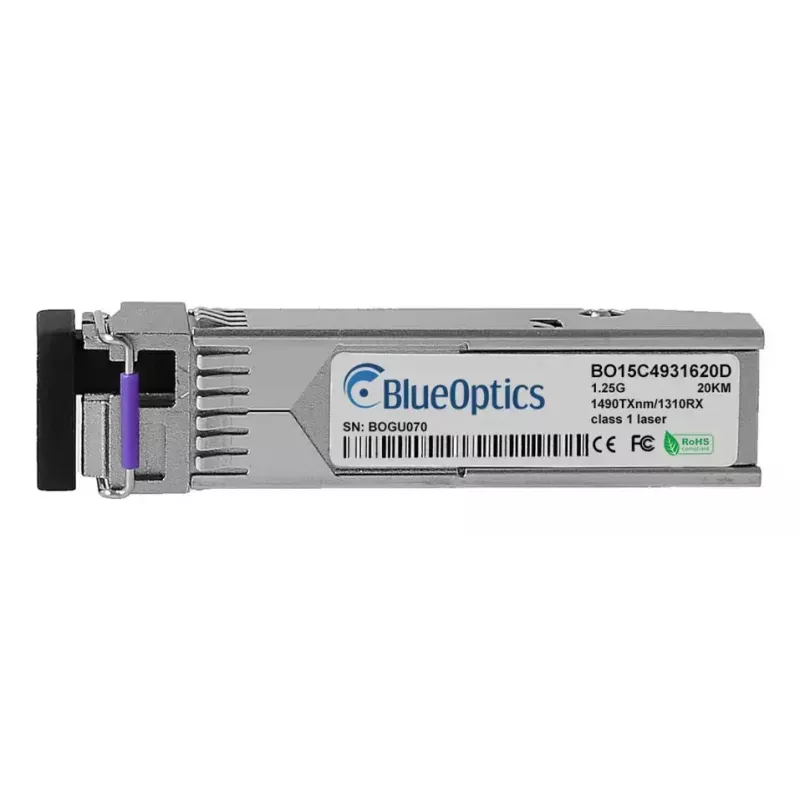

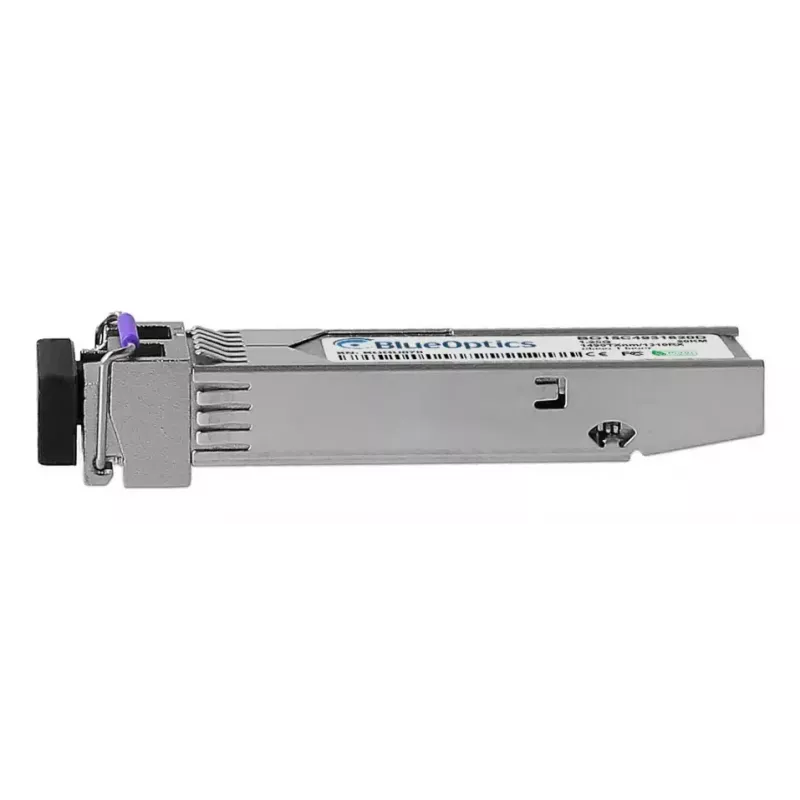

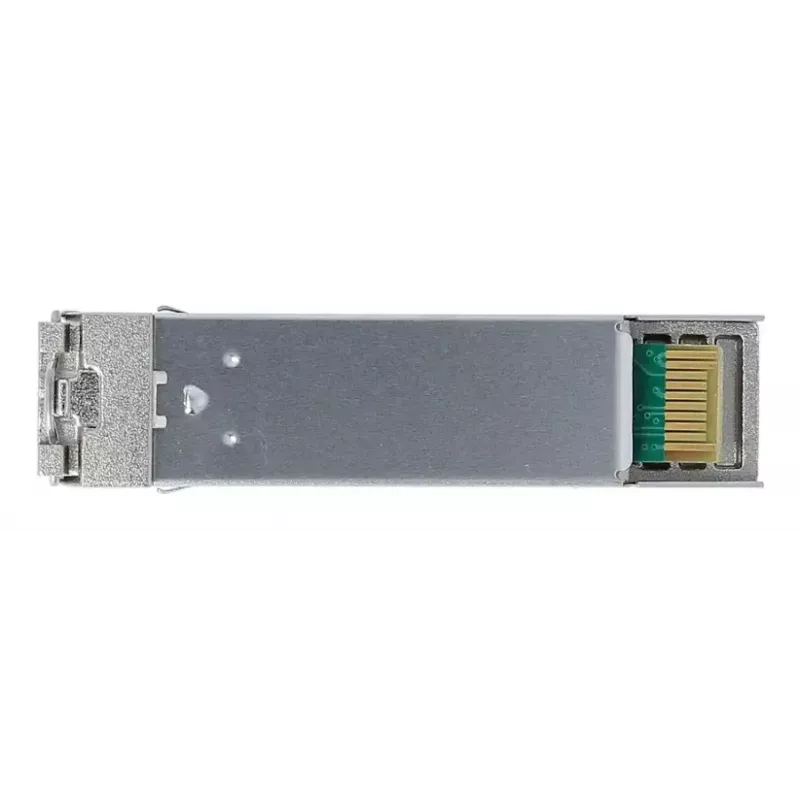

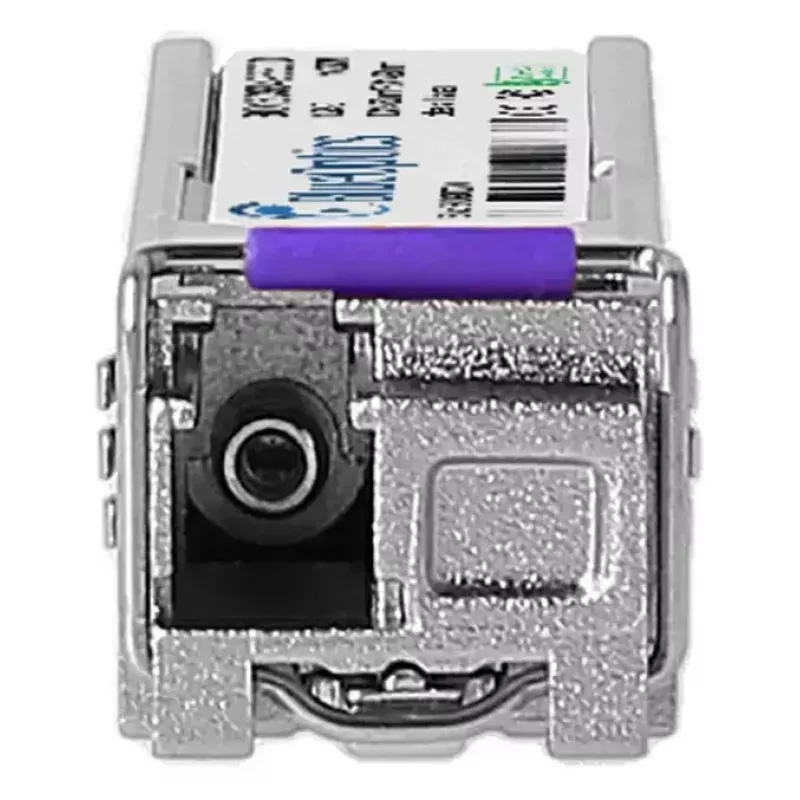

Módulo transceptor SFP BlueOptics BO15C4931620DIN 1250 Mbit/s fibra ótica

The BlueOptics BO15C4931620DIN SFP transceiver module is a compact fiber optic interface designed for use in network switches, routers and media converters. It supports a maximum data transfer rate of 1250 Mbit/s over multimode or singlemode fiber links (depending on cable type) and uses an LC connector in a standard SFP form factor. The module is finished in silver, has a small physical footprint and an MTBF of 3,000,000 hours, meeting CE, FCC and RoHS compliance for safe integration into enterprise and industrial networks.

Advantages

The module offers a standard SFP form factor for hot-swappable installation and broad compatibility with networking equipment. With support for up to 1250 Mbit/s and a maximum link distance of 20,000 m, it provides the performance needed for many access and distribution layer connections. Its high MTBF value indicates long-term reliability while compliance with CE, FCC and RoHS ensures regulatory and environmental conformity.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP module into an available SFP port on a compatible switch, router or media converter until it clicks into place. Connect an LC-terminated fiber cable to the module’s LC connector, observing correct transmit/receive pairing. After insertion and cable connection, verify link status via the host device’s LEDs or management interface. To remove the module, power down the related port if required by the host device’s maintenance procedures, then depress the latch and slide the module out.

Recommendations

Use appropriate fiber type and quality-rated LC cables to achieve the specified maximum distance, ensure proper end-face cleaning before connection to prevent signal loss, and operate the module within the host device’s supported temperature and power specifications for reliable performance.
