Módulo transceptor SFP BlueOptics SFP-10G-ER-F5-BO 10000 Mbit/s 1550 nm

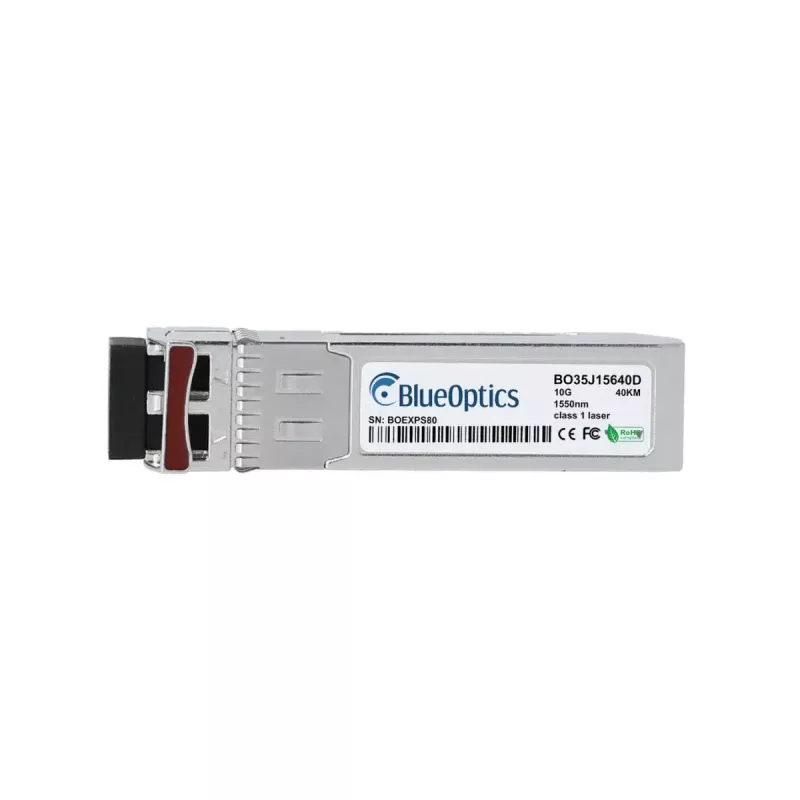

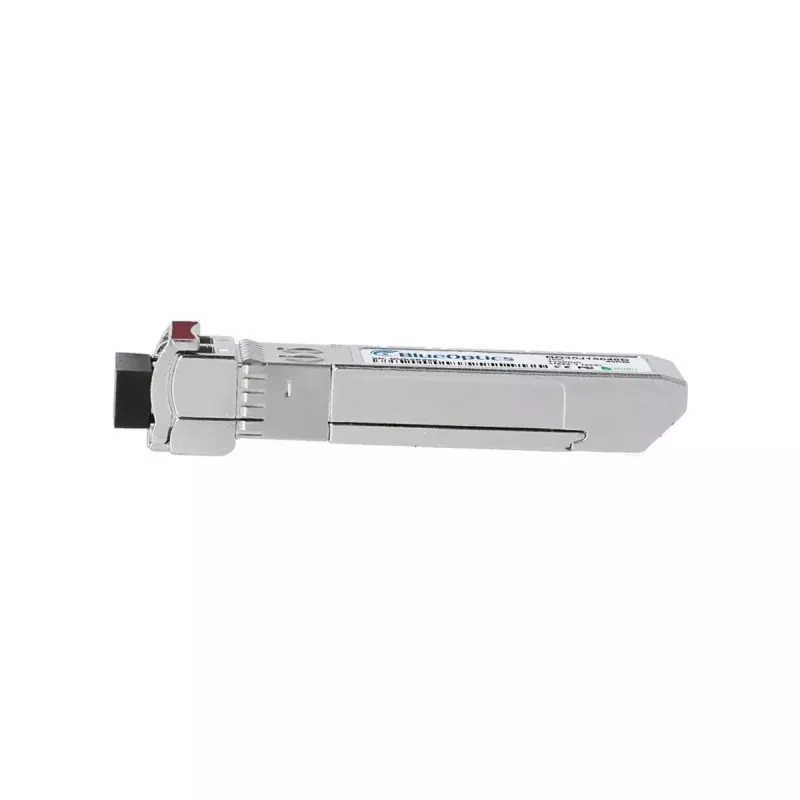

The BlueOptics SFP-10G-ER-F5-BO is a single-mode fiber SFP+ transceiver module designed for 10 Gbit/s optical links. Operating at a wavelength of 1550 nm, it supports 10GBASE-ER applications and uses an LC duplex connector in a compact metal housing. The module requires a 3.3 V supply and weighs approximately 3 g, making it suitable for installation in switches, routers and other network hardware that accept SFP+ modules and support 10GBASE-ER optics.

Advantages

This transceiver provides long-reach single-mode transmission up to typical 40 km distances while remaining compliant with MSA SFP+ mechanical and electrical standards. The metal enclosure offers mechanical robustness and thermal stability. Integrated digital diagnostics (DDM/DOM) enables real-time monitoring of parameters such as supply voltage, laser bias current, transmit power, receive power and temperature, which simplifies troubleshooting and maintenance. The module is compatible with standard 10G Ethernet and related high-speed protocols.

Suitable for

• Long-distance 10 Gbit/s Ethernet links over single‑mode fiber
• Interconnection of data center switches and routers
• Metro and campus backbone links requiring 1550 nm optics
• Applications that require remote optical diagnostics and monitoring

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Optical wavelength: 1550 nm
• Connector: LC duplex
• Suitable fiber type: single-mode fiber
• Typical reach: up to 40 km (depending on fiber and link margin)
• Power supply: 3.3 V input
• Housing: metal
• Weight: approx. 0.003 kg
• Digital diagnostics: DDM / DOM (MSA SFF-8472 compatible)

How to use

Install the BlueOptics SFP-10G-ER-F5-BO into any compatible SFP+ slot following the host hardware manufacturer instructions and ensuring the device firmware supports third-party 10GBASE-ER modules. Connect LC duplex single‑mode patch cords between transceivers on each link end, observing proper transmit/receive orientation. Power is provided by the host slot (3.3 V), and the module begins optical transmission after link negotiation. Use the host management interface or the module's DDM/DOM registers to view real‑time diagnostic parameters.

Recommendations

For optimal link performance, use single‑mode fiber with appropriate attenuation and splicing quality, route fibers to avoid tight bends, and select LC duplex patch cords rated for long‑reach 1550 nm transmission. Verify that the host system supports DDM/DOM and that firmware settings allow third‑party SFP+ modules where required. Where maximum reach is required, check link budget and consider using amplification or dispersion compensation if recommended by your network design.
