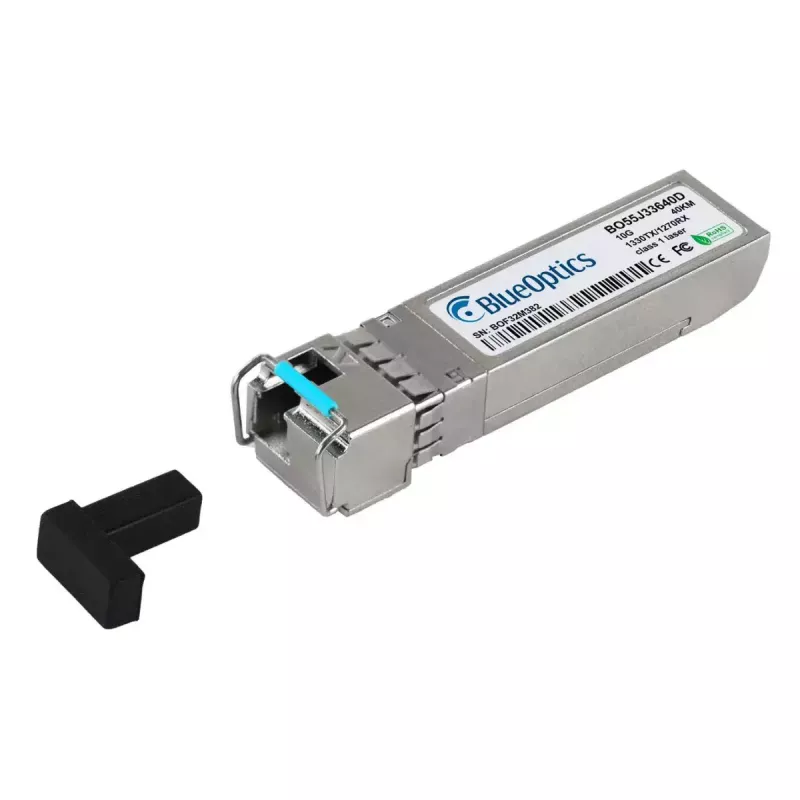

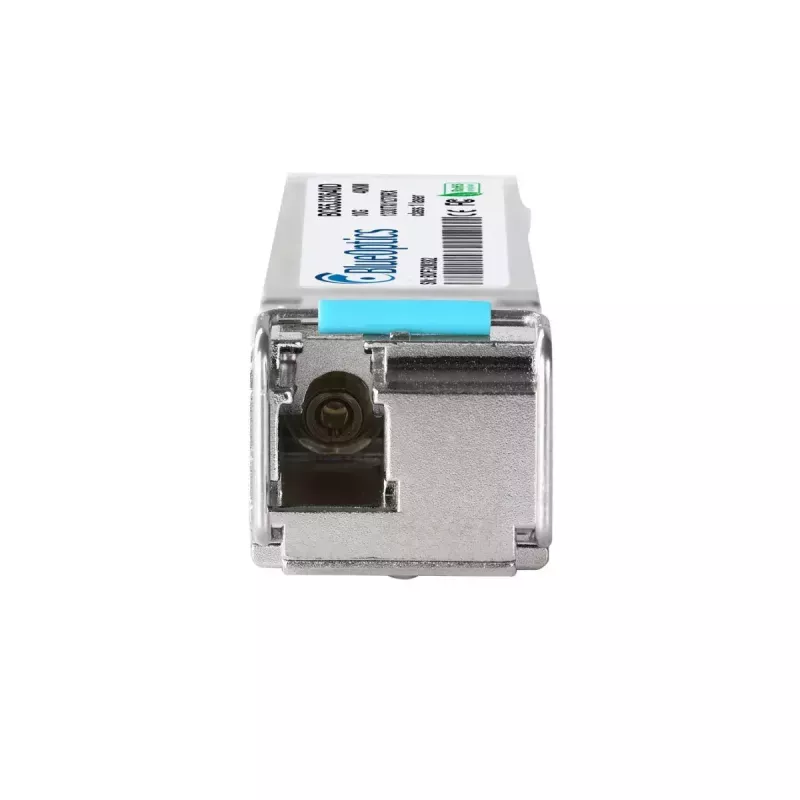

Módulo transceptor SFP BlueOptics SFP-10G-ERBD-D-BO 1000 Mbit/s 1330 nm

The BlueOptics SFP-10G-ERBD-D-BO is an SFP fiber optic transceiver module designed for single-fiber bidirectional links. It supports a data transfer rate of up to 1000 Mbit/s and transmits at a wavelength of 1330 nm. The module has an LC simplex interface, is RoHS compliant, weighs approximately 20 g and is compatible with Arista Networks hardware. Its design follows MSA standards and includes digital diagnostic monitoring for real-time link information when supported by the host device.

Advantages

The module provides stable optical transmission over single-fiber links using separate transmit and receive wavelengths, enabling simultaneous send and receive on one fiber. Built to MSA standards and tested for compatibility with Arista Networks platforms, it uses high-quality components to achieve long service life and an MTBF of 3,000,000 hours. The integrated Digital Diagnostics Monitoring (DDM/DOM) facilitates remote monitoring of voltage, laser current, optical power and temperature when the host supports this feature.

Suitable for

• Single-fiber bidirectional optical links between switches and routers
• Interconnects in data center equipment and storage systems
• Optical uplinks for enterprise networks and telecom equipment
• Replacement or expansion modules compatible with Arista Networks platforms

Key specifications

• Interface type: SFP (LC simplex)
• Maximum data transfer rate: 1000 Mbit/s
• Transmit wavelength: 1330 nm (with complementary receive at 1270 nm)
• Form factor: SFP/SFP+ compatible module following MSA
• Compliance: RoHS
• Weight: approx. 0.02 kg
• Color: silver
• Digital Diagnostics Monitoring (DDM/DOM): supported (host-dependent)
• Expected MTBF: 3,000,000 hours

How to use

Insert the SFP transceiver into a compatible SFP/SFP+ slot on the network device until it latches. Connect an LC simplex fiber patch cable between this module and the corresponding single-fiber transceiver at the other end, observing correct orientation for transmit and receive wavelengths. Ensure the host device supports the required DDM/DOM functions if you need real-time diagnostic data. Follow the vendor instructions for enabling or verifying the link and check optics status in the device management interface.

Recommendations

Use high-quality single-fiber LC patch cables and ensure the remote transceiver uses the complementary wavelengths (1270 nm receive / 1330 nm transmit) for bidirectional operation. Keep fiber connectors clean and avoid excessive bending of the fiber to preserve signal integrity. Verify DDM/DOM availability on the host system before relying on remote diagnostics.
