Módulo transceptor SFP BlueOptics SFP-1G10BLC-T-BO 1250 Mbit/s

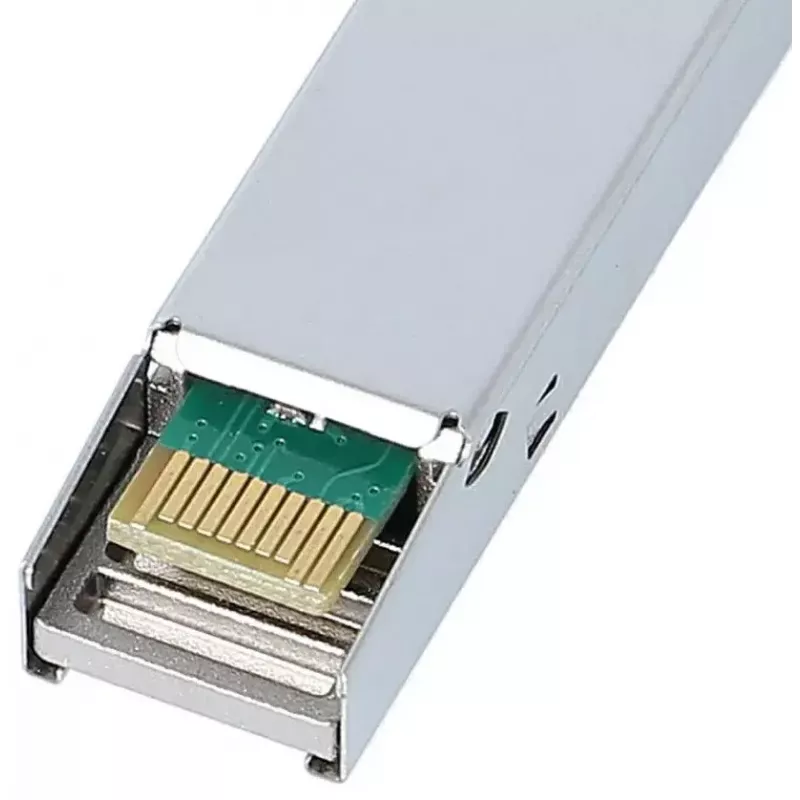

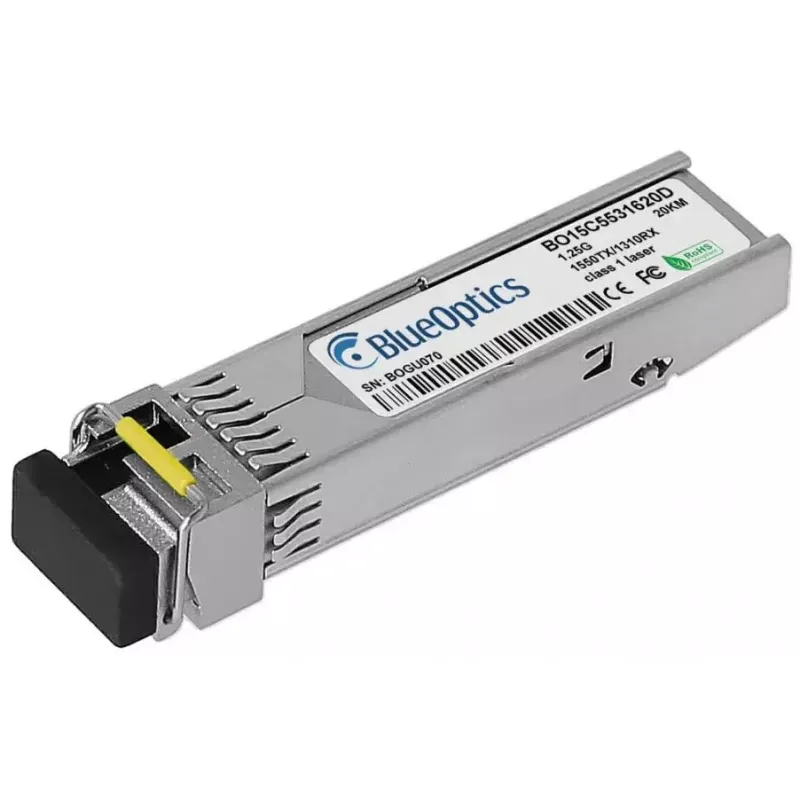

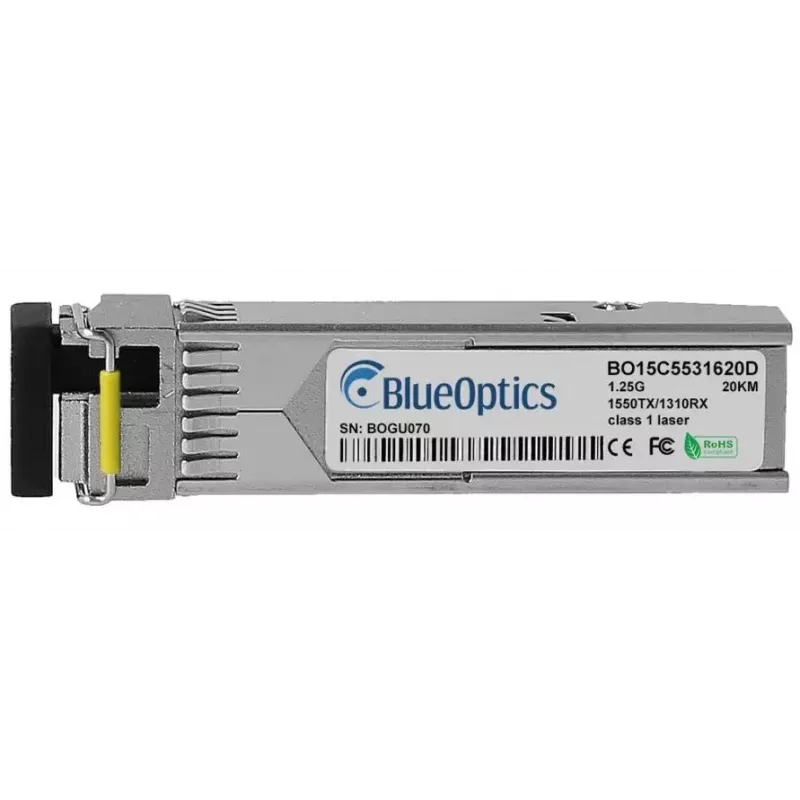

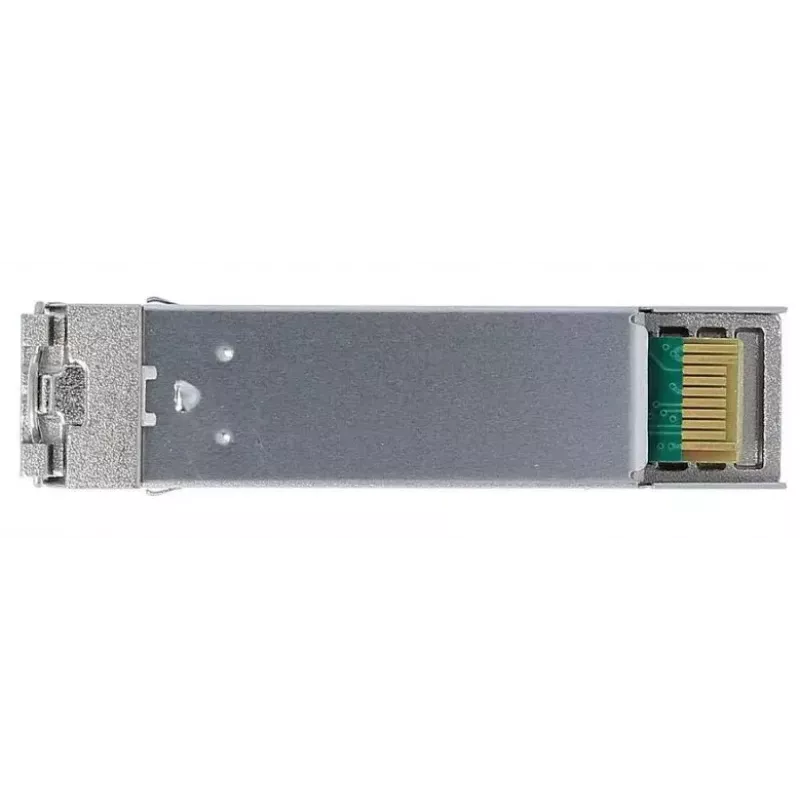

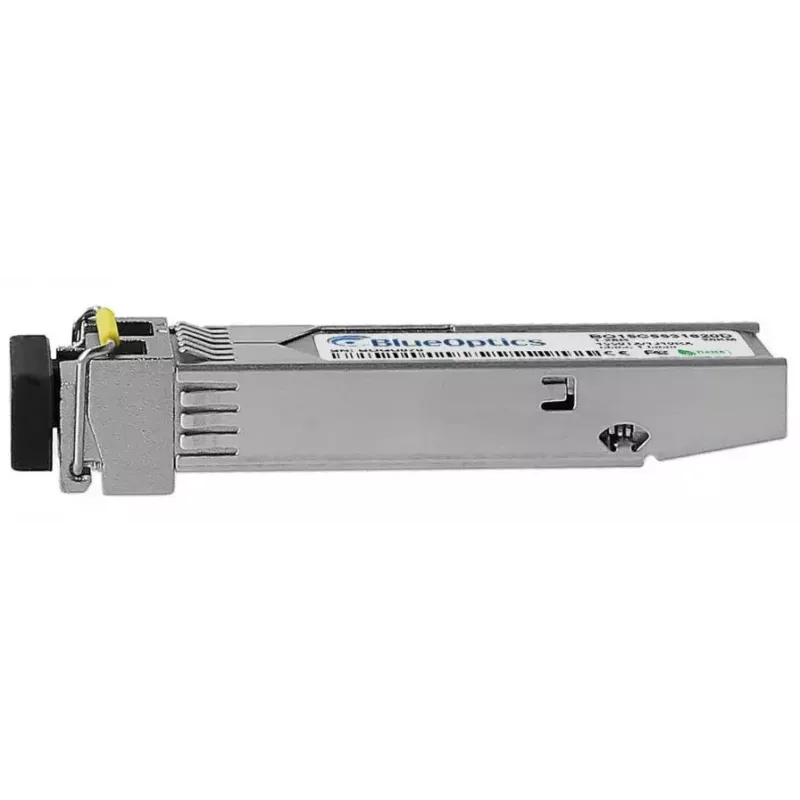

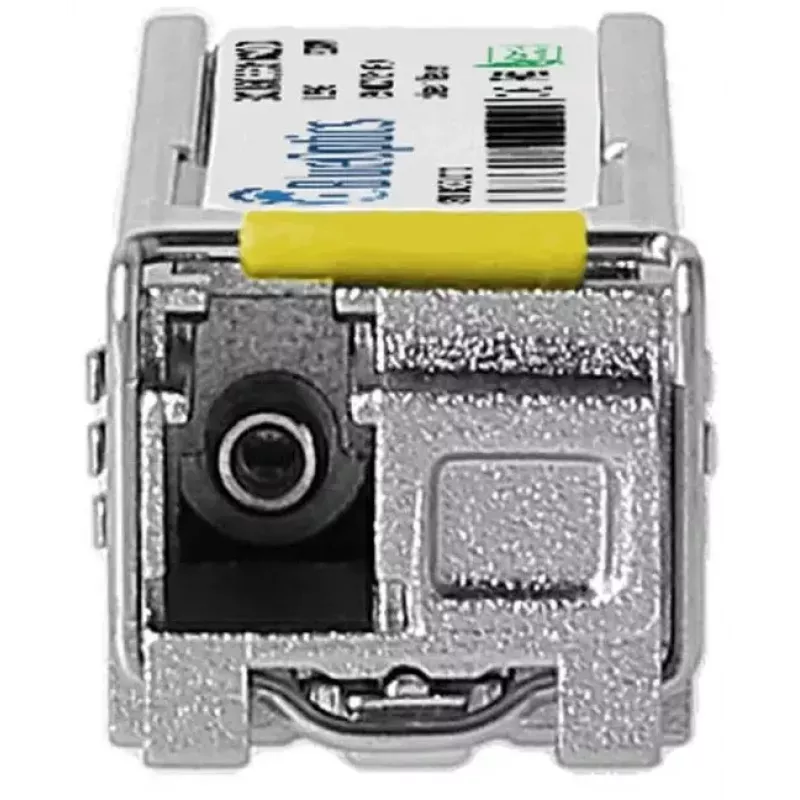

The BlueOptics SFP-1G10BLC-T-BO is a single-mode fiber optic SFP transceiver module designed for 1000BASE-BX-D applications with a maximum data rate of 1250 Mbit/s. The module comes in a compact metal housing, operates from a 3.3 V supply and weighs approximately 3 g. It uses an LC simplex connector and implements separate transmitter and receiver wavelengths suitable for long-distance single-fiber links up to typical 20 km ranges when used according to the relevant transmission protocol and fiber type.

Advantages

This transceiver follows MSA standards and is built to be compatible with devices supporting the corresponding 1000BASE-BX-D SFP form factor. The metal enclosure provides mechanical robustness and EMI shielding while the compact SFP size enables flexible installation in switches, routers and other network equipment. The module supports optical transmission and reception on a single fiber using distinct TX and RX wavelengths and offers support for digital diagnostics (DDM/DOM) when the host hardware exposes that interface.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into any compatible SFP slot on network equipment while the device is powered down or following the vendor's hot-swap instructions. Connect an appropriate single-mode LC simplex fiber patch cord, observing the correct orientation for the TX and RX channels. Configure the host device to enable the corresponding 1000BASE-BX-D interface and verify link status. If the host supports DDM/DOM, monitor supply voltage, laser current, output power, received power and temperature via the device management interface for ongoing diagnostics.

Recommendations

Use single-mode fiber and appropriate LC simplex patch cords rated for the expected distance. Confirm host device compatibility with 1000BASE-BX-D SFP modules and ensure the DDM/DOM function is supported by the hardware if real-time diagnostics are required. Handle the optical connector with dust caps until installation and follow standard ESD precautions when handling the transceiver.
