Módulo transceptor SFP BlueOptics SFP-BIDI1270-LC10-BO 10000 Mbit/s

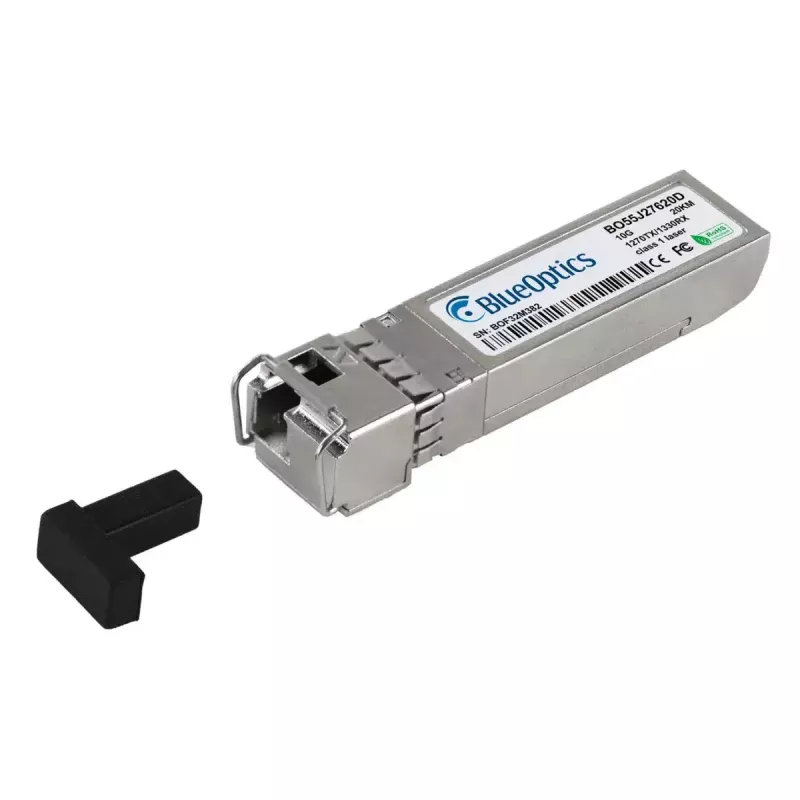

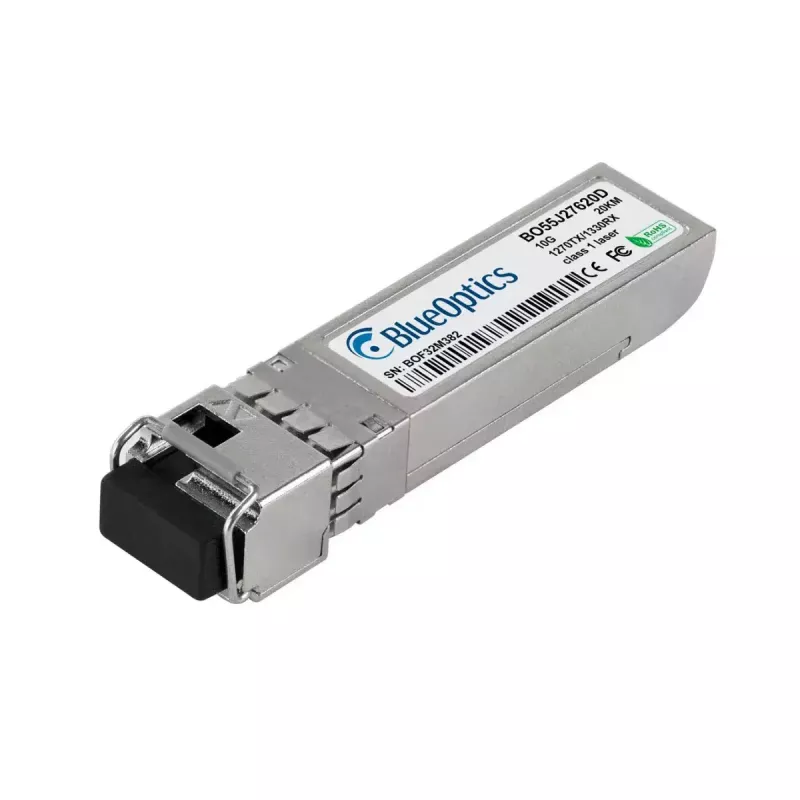

The BlueOptics SFP-BIDI1270-LC10-BO is a single-mode SFP+ fiber optic transceiver module designed for 10 Gbit/s networks. It uses an LC simplex connector and supports bidirectional transmission over a single fibre, combining a 1270 nm receiver with a 1330 nm transmitter. The module is supplied in a compact SFP+ form factor, finished in silver and weighing approximately 20 g, and is intended for integration into network equipment that accepts MSA-compliant SFP/SFP+ transceivers.

Advantages

This SFP transceiver supports up to 10000 Mbit/s data rate and a maximum optical reach of 20,000 m over single-mode fiber, providing a balance of high bandwidth and extended distance for metropolitan and long-reach links. The module follows MSA mechanical and electrical standards and uses an LC connector for simple integration into existing fibre infrastructures. Its compact SFP+ form factor allows use in a wide range of switches, routers and storage devices that accept SFP/SFP+ modules.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-BIDI1270-LC10-BO by inserting the module into a compatible SFP/SFP+ slot on network equipment while the device is powered down or following the host vendor's hot-swap instructions. Terminate the single-mode fibre with an LC connector and connect to the module’s LC port. For bidirectional operation, pair the module with a complementary transceiver at the remote end that uses the opposite wavelengths. Verify link parameters and, if available, enable and monitor digital diagnostic functions through the host system to confirm operational status.

Recommendations

Use single-mode fibre with appropriate LC patch cords and ensure the remote transceiver is compatible with the BiDi wavelength pair. Confirm that the host device supports SFP+ modules and, if digital diagnostics (DDM/DOM) are required, that the device exposes these monitoring features. Observe standard fibre handling and ESD precautions during installation and maintenance.
