Módulo transceptor SFP BlueOptics SFP-P-5ADH-20-BO 10000 Mbit/s SFP+

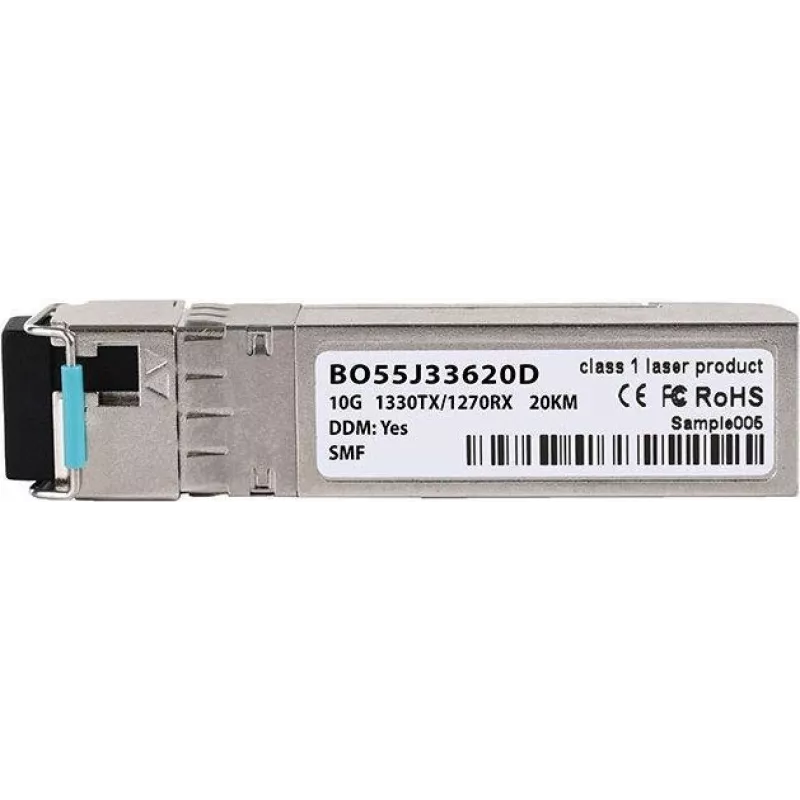

The BlueOptics SFP-P-5ADH-20-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s Ethernet and compatible high-speed optical applications. Housed in a metal casing and weighing only 3 g, the module operates at 3.3 V and supports single-mode fiber links up to 20,000 m using an LC simplex connector. It implements 10GBASE-BX-D functionality with separate transmit and receive wavelengths for bidirectional transmission over a single fiber and supports Digital Diagnostics Monitoring (DDM/DOM) for real-time link status.

Advantages

The module provides 10 Gbit/s data transfer performance combined with a compact metal housing that ensures mechanical robustness and thermal stability. Support for long-reach single-mode links up to 20 km enables flexible network design for metro and long-haul segments. Integrated Digital Diagnostics Monitoring simplifies remote diagnostics by reporting parameters such as supply voltage, laser bias current, output and received power, and temperature.

Suitable for

Key specifications

How to use

Insert the SFP+ module into a compatible SFP+ port on a switch, router or transceiver-capable network device while the device is powered off or following the vendor's hot-swap guidance. Connect a single-mode LC patch cord between matched BX-D transceivers (one configured for 1270 nm transmit / 1330 nm receive and the complementary device reversed) to establish a bidirectional single-fiber link. Verify link parameters and DDM readings via the host device management interface to confirm proper operation.

Recommendations

Use quality single-mode LC patch cords and, where possible, patch panels or transceiver pairs tested for BX-D wavelength matching to achieve the specified 20 km reach. Ensure the host equipment supports SFP+ modules and DDM/DOM if remote diagnostics are required. Follow manufacturer guidelines for ESD handling and proper insertion/removal to avoid damage.
