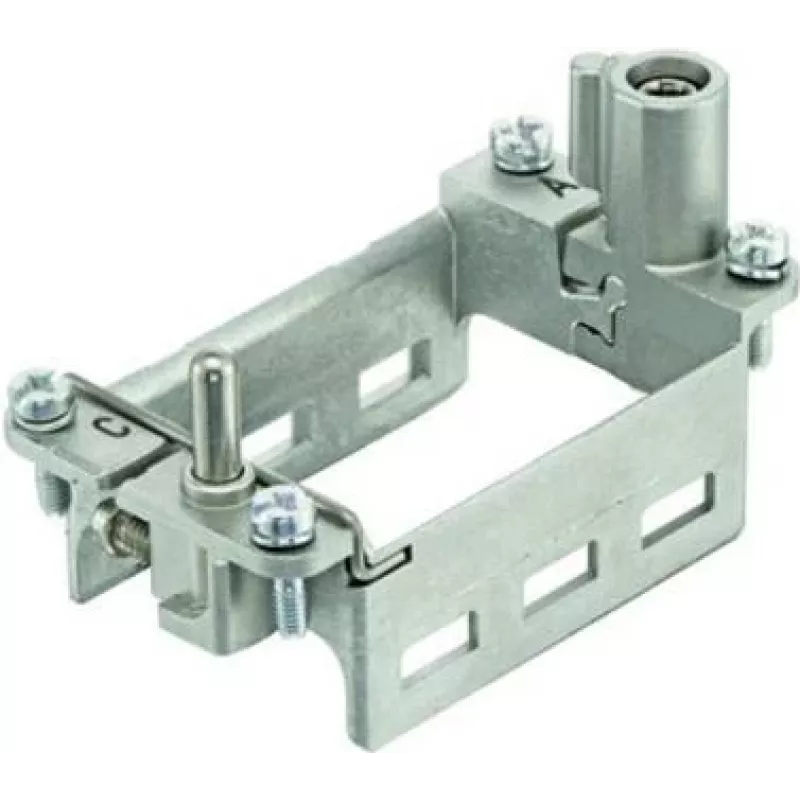

Moldura basculante Harting 09140100361 para conector de 3 módulos

The Harting articulated frame 09140100361 for a 3-module connector provides a mechanical housing interface for modular connector inserts. It is designed to secure three-module connector inserts within panels and enclosures, allowing controlled articulation and alignment flexibility during installation and maintenance. The frame supports reliable electrical connections and simplifies access for replacement or servicing of connector modules in industrial and machinery environments.

Advantages

The articulated frame is constructed to ensure stable mounting and precise alignment of 3-module connector inserts. Its design enables easy insertion and removal of modules, reduces strain on contact interfaces during movement, and helps maintain consistent mating performance. The frame’s compatibility with standard modular inserts ensures straightforward integration into existing panels and control cabinets.

Suitable for

• Panel and enclosure installations in industrial machinery
• Electrical distribution and control panels requiring modular connectors
• Applications needing alignment flexibility and articulated mounting
• Maintenance environments where connector replacement is frequent

Key specifications

• Configuration: articulated frame for 3-module connector
• Material: durable mechanical housing suitable for industrial use
• Mounting: panel or enclosure mounting interface with articulation
• Compatibility: designed for standard 3-module modular inserts
• Function: provides mechanical support and alignment flexibility for connector modules

How to use

Install the articulated frame into the prepared panel cutout or enclosure opening, ensuring alignment with mounting holes and support structure. Insert the compatible 3-module connector inserts into the frame until they engage securely; check articulation movement to confirm that alignment is correct. Route cable assemblies and secure contacts according to the connector insert instructions. For removal, disconnect electrical connections first, then disengage the insert from the frame and remove the frame from the panel if required.

Recommendations

The frame should be used with compatible 3-module modular inserts and installed according to panel cutout dimensions and mounting guidelines. Regular inspection of mechanical mounting points and contact alignment is recommended to maintain reliable electrical connections, especially in applications with frequent movement or maintenance cycles.
