Moldura de montagem Neutrik MFD 30200642 para instalação em painel, moldura metálica para recortes de caixa

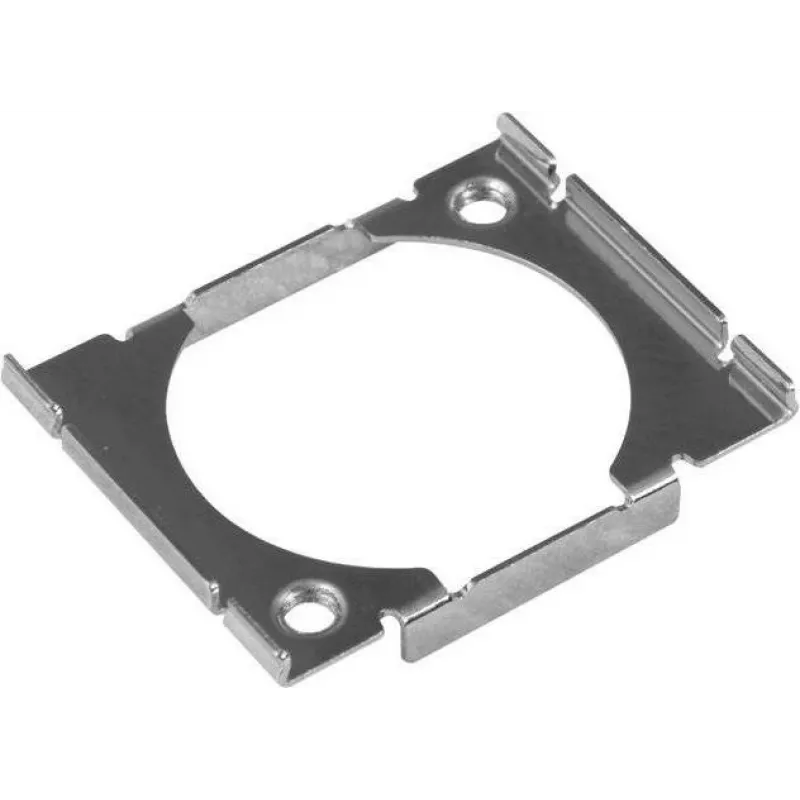

Neutrik MFD 30200642 is a metal mounting frame engineered for panel and chassis installation of Neutrik connectors. Designed to fit standard chassis cutouts, this mounting frame provides a rigid support for connector bodies and helps ensure consistent positioning and secure attachment during assembly or replacement. The metal construction contributes to mechanical durability in professional audio, video and data equipment environments.

Advantages

The metal mounting frame offers precise alignment with standard cutouts and reduces movement or stress on the connector and cable terminations. Its robust construction improves the lifespan of installed connectors and simplifies maintenance by allowing repeatable removal and reinstallation without degrading the panel or connector fit. The product is compatible with common panel thicknesses and is intended to maintain stable mechanical contact under normal operating conditions.

Suitable for

Key specifications

How to use

Position the mounting frame into the prepared chassis cutout, aligning the frame with the panel holes. Secure the frame to the panel using appropriate fasteners through the provided mounting points. Insert the connector into the frame from the front or rear as applicable and fasten the connector according to the connector manufacturer's instructions. Verify alignment and mechanical stability, and check that cable terminations are not under strain after installation.

Recommendations

Use compatible Neutrik connector models and correct fastener sizes to ensure reliable mounting. Inspect panel cutouts for proper dimensions before installation and avoid over-tightening fasteners to prevent deformation of the frame or panel.
