Moldura para tablet ALLNET ALLTCover10NWv1 — branca, 309 × 228 mm, 280 g

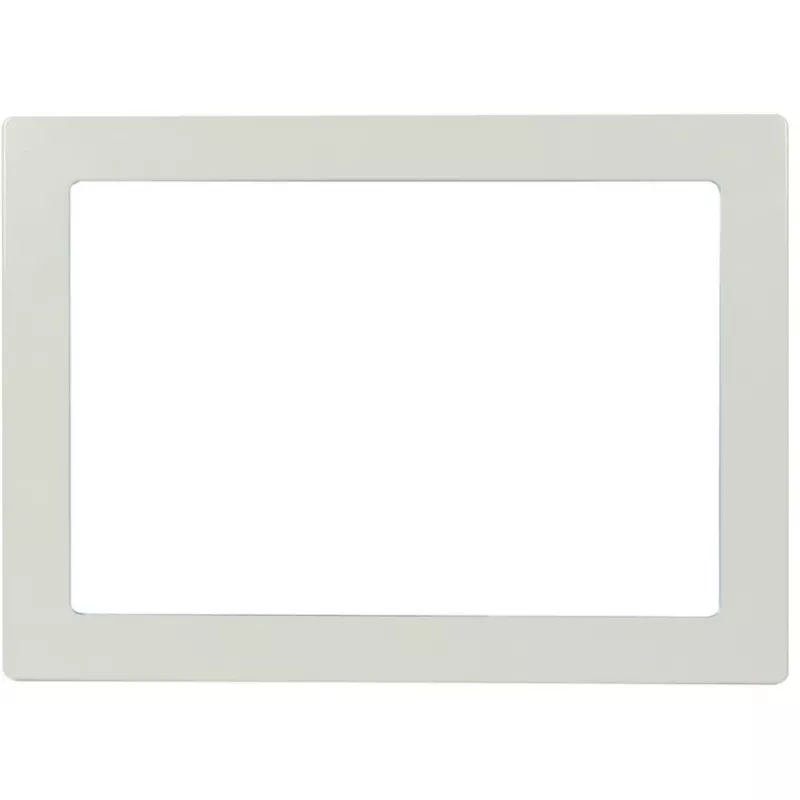

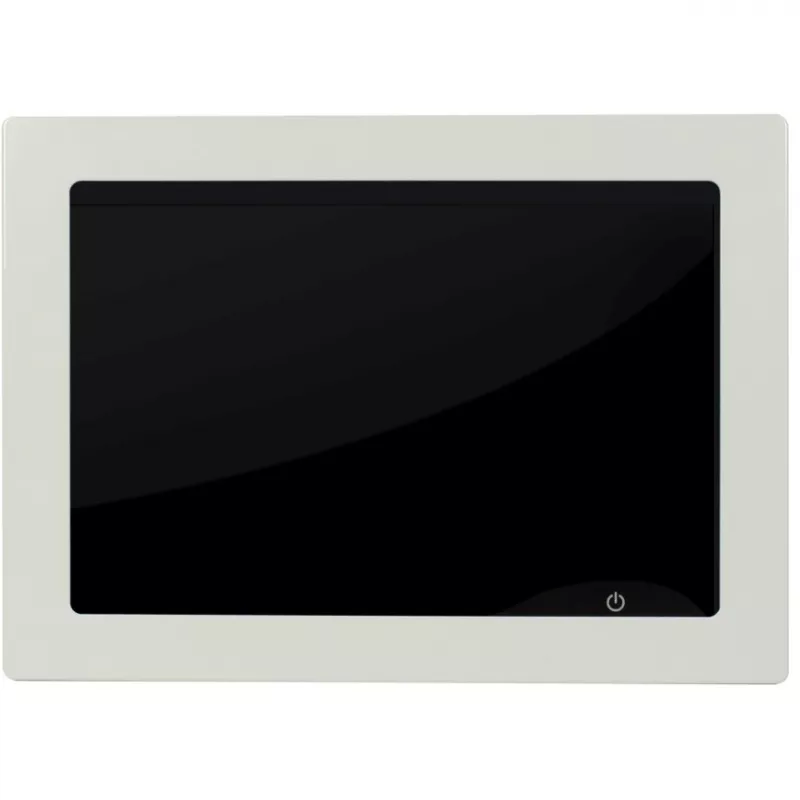

Replacement bezel for ALLNET tablet ALLTCover10NWv1 in white, sized 309 × 228 mm and weighing 280 g. This plastic front frame is designed for 10" touch display tablet installations and flush-mount enclosures, serving to finish device edges, provide a clean mounting appearance and protect the display margins during installation. The bezel rests on the surface and sits flush with the mounting frame and wall; recessed screwable magnets are integrated without protrusion. The redesigned aluminium panels are flush with the mounting frame, reducing the distance to the touchscreen and improving access to peripheral touch areas.

Advantages

The bezel provides a neat, finished look for in-wall or framed tablet installations while protecting the display edges during mounting. Its narrow white profile and flush design minimise visible gaps between the tablet and surrounding frame, and the reduced distance to the touchscreen improves usability at the display margins. Recessed screwable magnets allow secure attachment without exposed fasteners.

Suitable for

• 10" ALLNET touch display tablet installations
• Flush-mount enclosures and in-wall installations
• Replacement of damaged or worn front frames
• Situations requiring a narrow, white bezel to match interior fittings

Key specifications

• Material: plastic front frame with aluminium panels (redesigned, flush)
• Colour: white

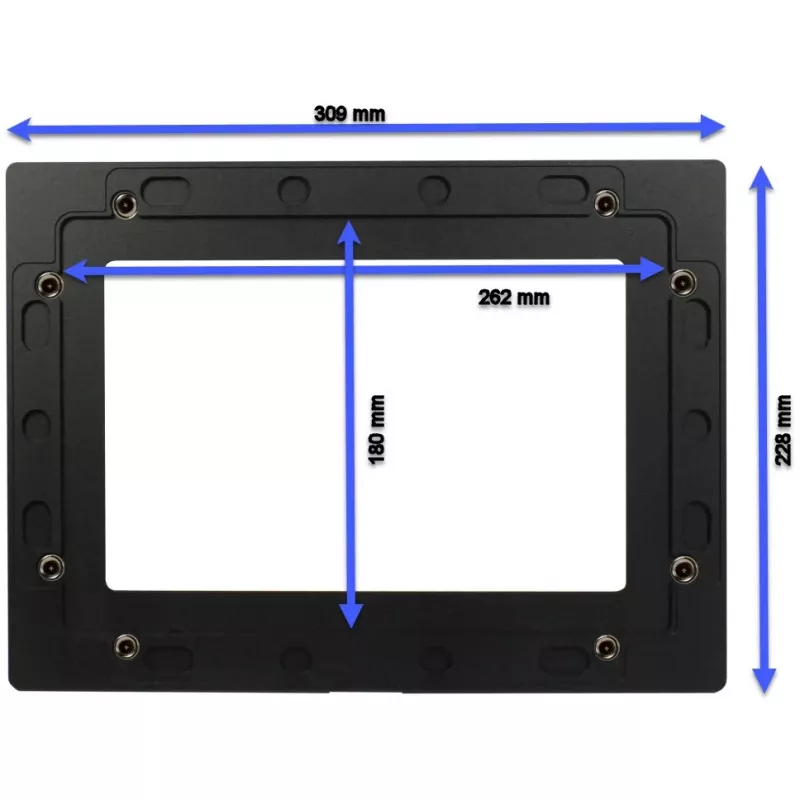

• External dimensions: 309 × 228 mm
• Weight: 280 g
• Compatibility: designed for 10" touch display tablet mounting and compatible with ALLNET mounting frame designs

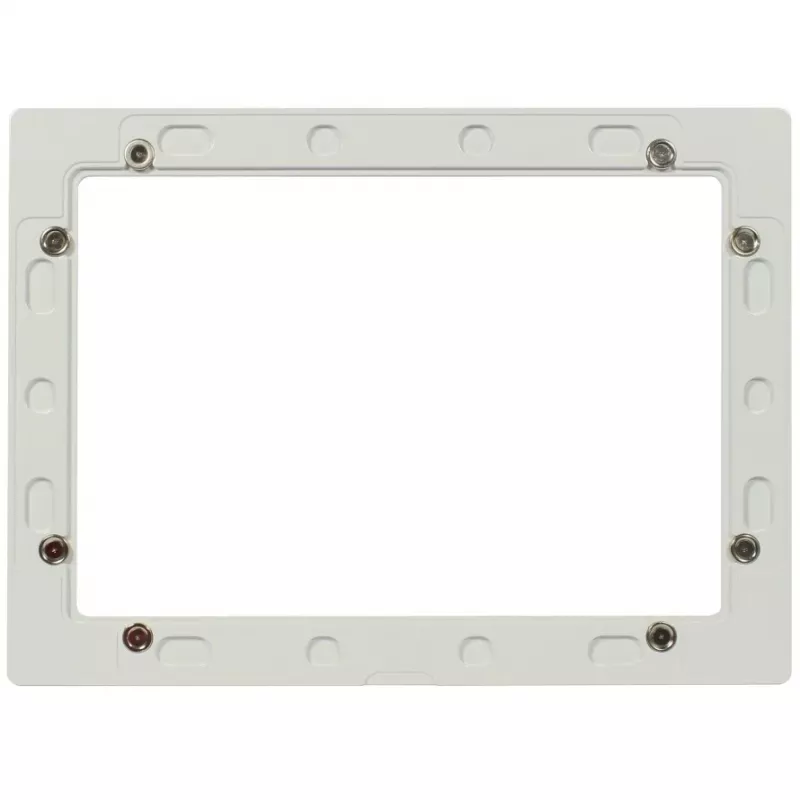

• Mounting features: rests on surface, sits flush with frame and wall; recessed screwable magnets integrated

How to use

Position the bezel over the tablet or mounting frame so that it rests on the surface and aligns flush with the wall or frame. Secure the bezel using the recessed screwable magnets or the recommended fasteners for the chosen mounting frame. Ensure the bezel sits evenly around the display margin and that the reduced gap between bezel and touchscreen does not obstruct touch operation. If replacing an existing bezel, remove the old frame carefully and verify that screw locations and magnet recesses align before final installation.

Recommendations

Handle the bezel by its edges during installation to avoid fingerprints on the display area. Use appropriate screws and tools when fastening the recessed magnets to prevent damage to the bezel or mounting frame. After installation, check touchscreen responsiveness at the edges to confirm correct alignment.
