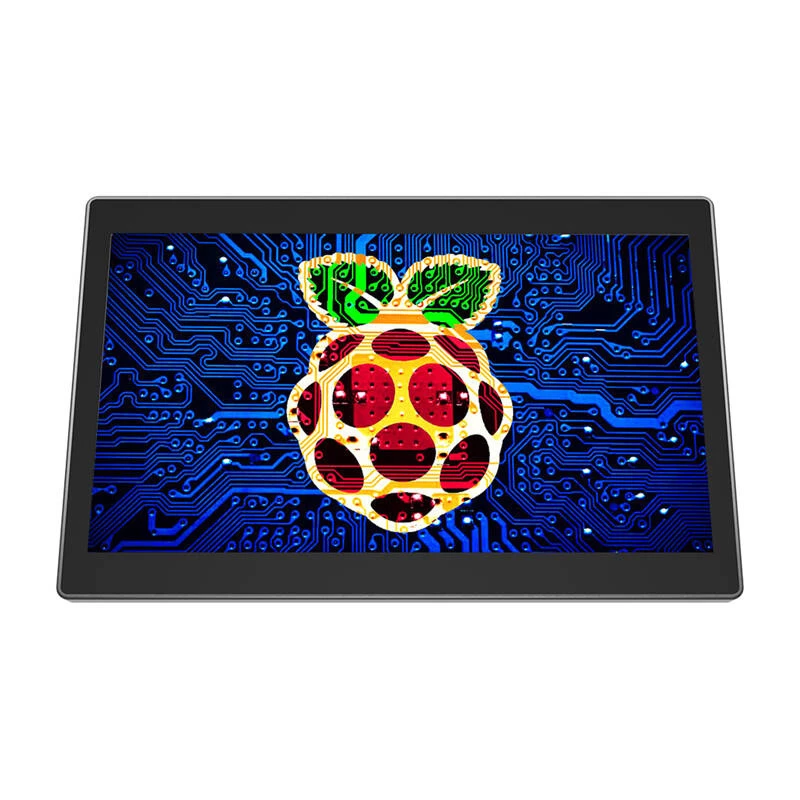

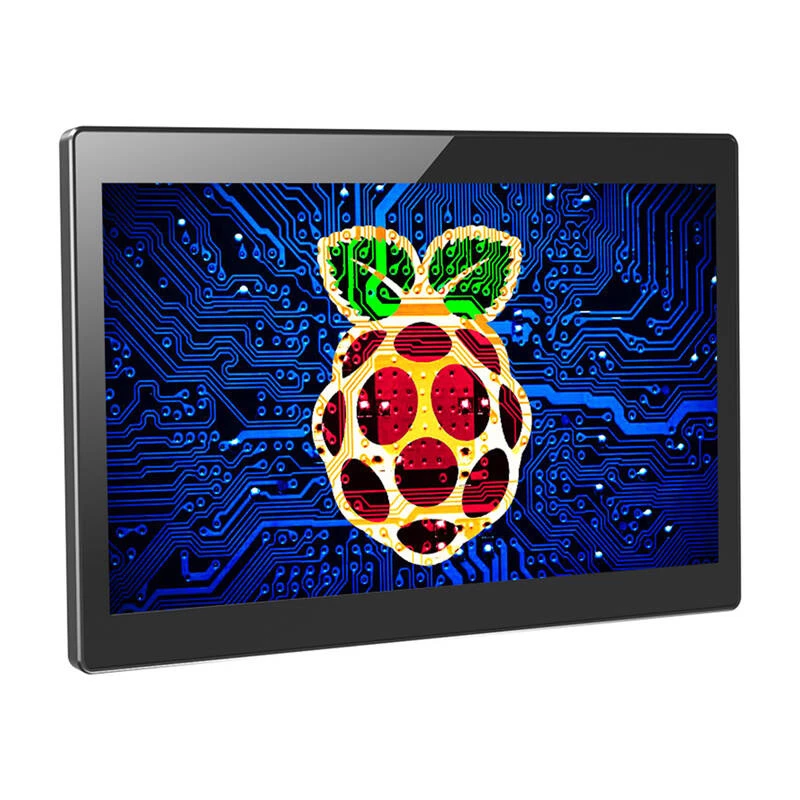

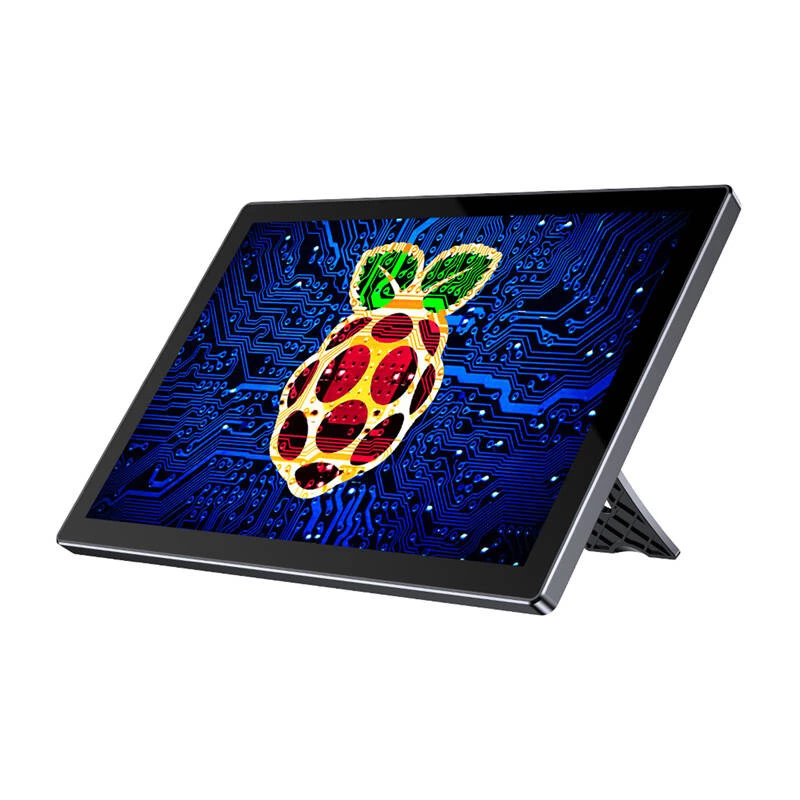

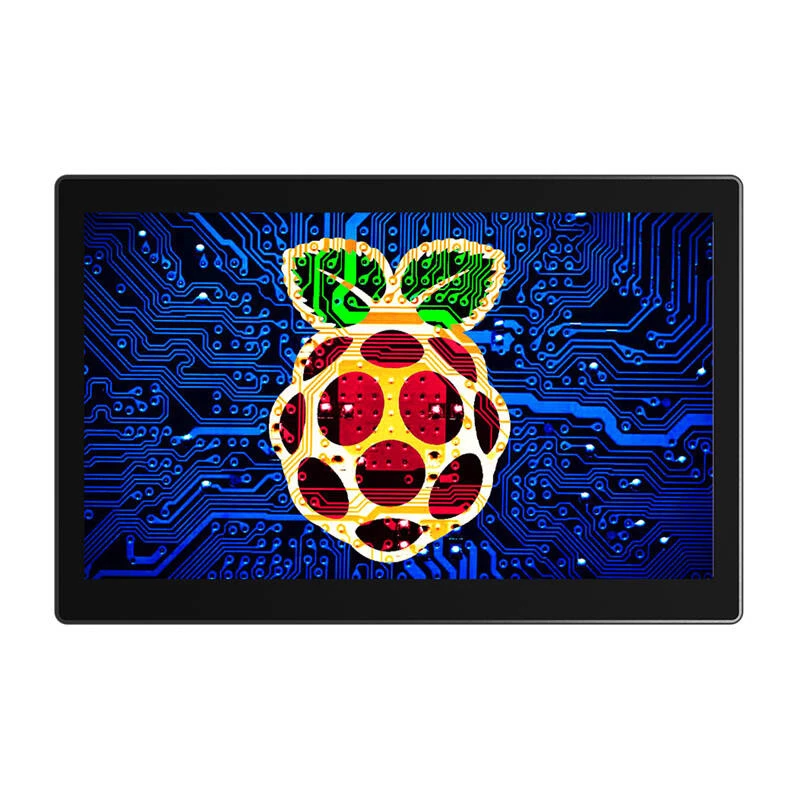

Monitor portátil Uperfect UPi B7 25,7 cm (10,1 polegadas) IPS LCD 1920x1200

The Uperfect UPi B7 is a 10.1" portable monitor with an IPS LCD panel and 1920 × 1200 (16:10) resolution designed primarily for Raspberry Pi 4, 4B and 5 while remaining compatible with computers, laptops and gaming consoles. It features 10-point touch input, dual built-in speakers, a lightweight compact design and an adjustable stand for desk or dash mounting. The monitor supports USB-C (audio/video), HDMI (audio/video) and a DC power input and includes VESA 75×75 mm mounting holes for flexible installation.

Advantages

The UPi B7 provides a high-resolution 1920×1200 IPS display with wide 178° viewing angles and 370 cd/m² brightness for clear images. Ten-point touch responsiveness enables precise interaction and the dual speakers deliver basic stereo audio. Built-in fans improve thermal stability during extended use. The monitor is lightweight (0.62 kg), includes multiple interface options (USB-C, HDMI, DC) and ships with the necessary cables and adapter boards for easy setup with Raspberry Pi and other devices.

Suitable for

• Working with Raspberry Pi 4 / 4B / 5 for projects and development
• Portable secondary display for laptops and desktop PCs
• In-car navigation or dashboard display
• 3D printer monitoring and machine status display
• Home monitoring / CCTV preview screen

Key specifications

• Screen: 10.1" IPS LCD, 1920 × 1200 (16:10)
• Refresh rate: 60 Hz
• Response time: 35 ms
• Brightness: 370 cd/m²
• Contrast ratio: 800:1
• Color gamut: 75% sRGB, 16.7M (8 bit)
• Viewing angle: 178°
• Touch: 10-point capacitive touchscreen
• Speakers: 2 × 8 Ω, 1 W each

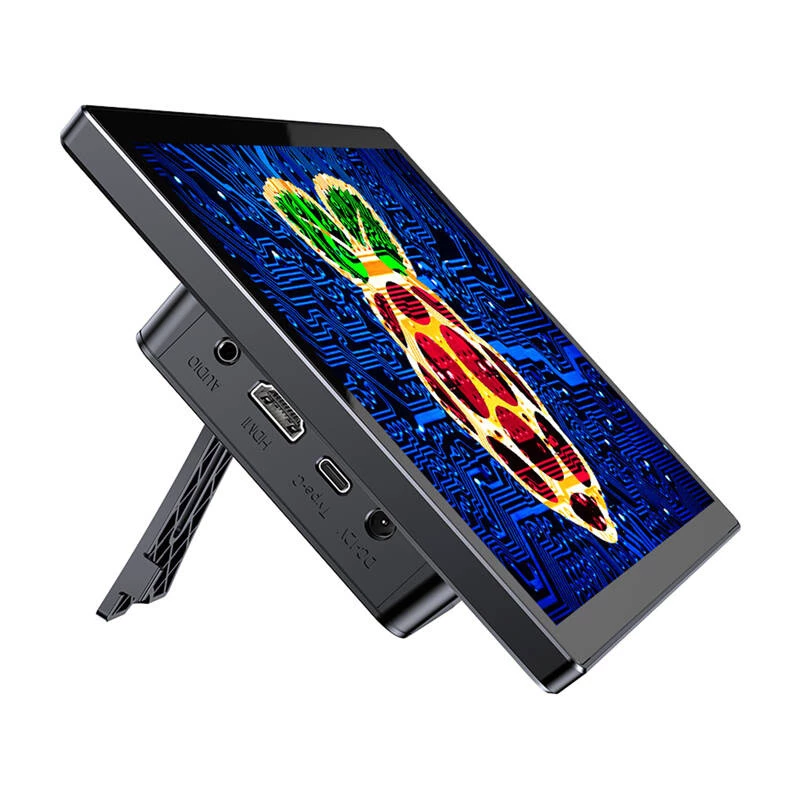

• Interfaces: USB-C (audio/video), HDMI (audio/video), DC power port
• VESA: 75 × 75 mm (M3 × 6 mm)
• Dimensions: 245 × 160 × 41 mm; Weight: 0.62 kg
• Rated power: 8 W

How to use

Connect the monitor to a Raspberry Pi or another device using the included HDMI board for video signal and the USB-C board for power; use the supplied USB cable for touch functionality. For USB-C devices that carry video, connect a single USB-C cable for audio and video. Adjust the integrated stand between approximately 15° and 50° for a comfortable viewing angle. Mounting on a desk or wall is possible via the 75×75 mm VESA holes. Use the included fans and keep ventilation unobstructed for sustained operation.

Recommendations

For Raspberry Pi setups, use the provided USB-C board for stable power and the HDMI board for signal. Keep the monitor ventilated and avoid blocking VESA or fan openings. Use the supplied cables and accessory parts for proper installation and consult the user manual for board placement and connector orientation.
