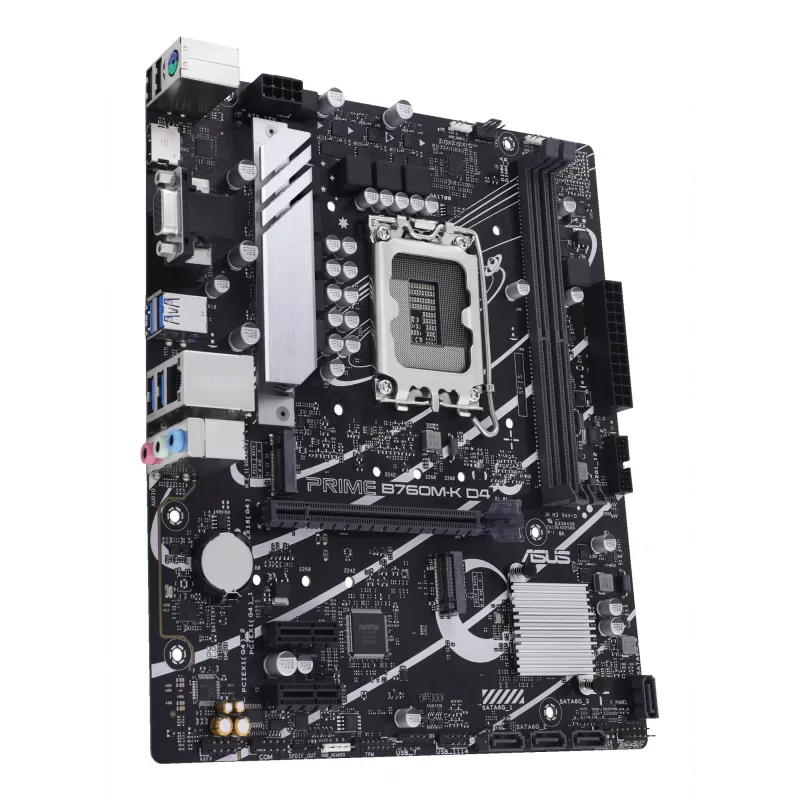

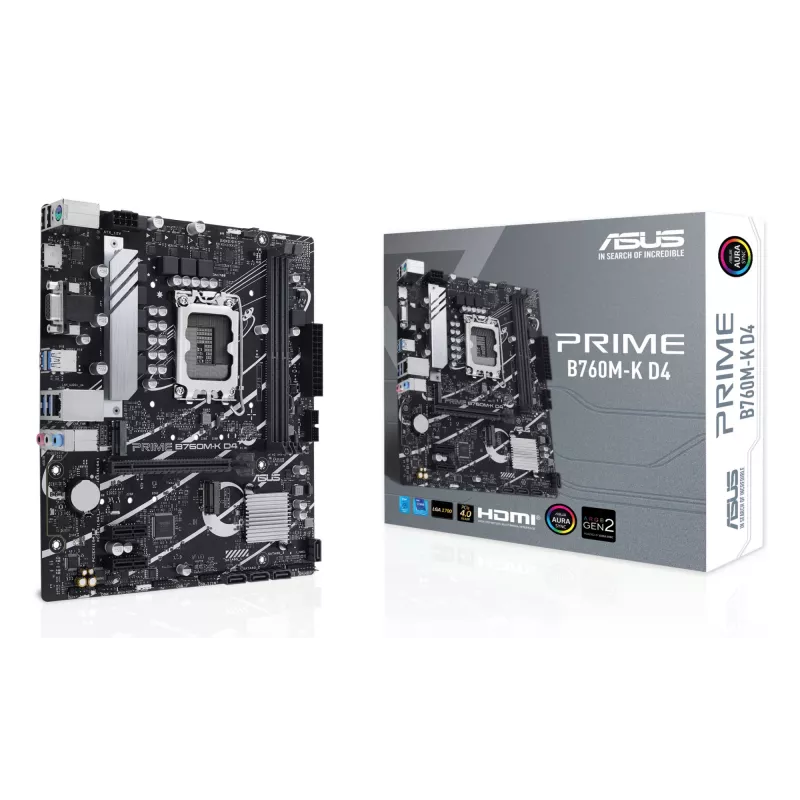

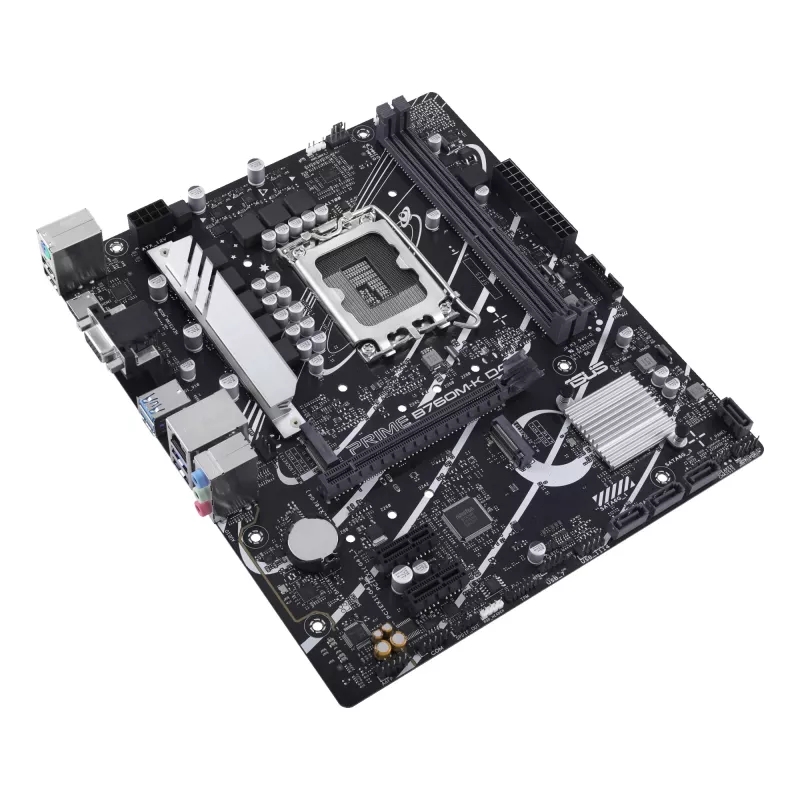

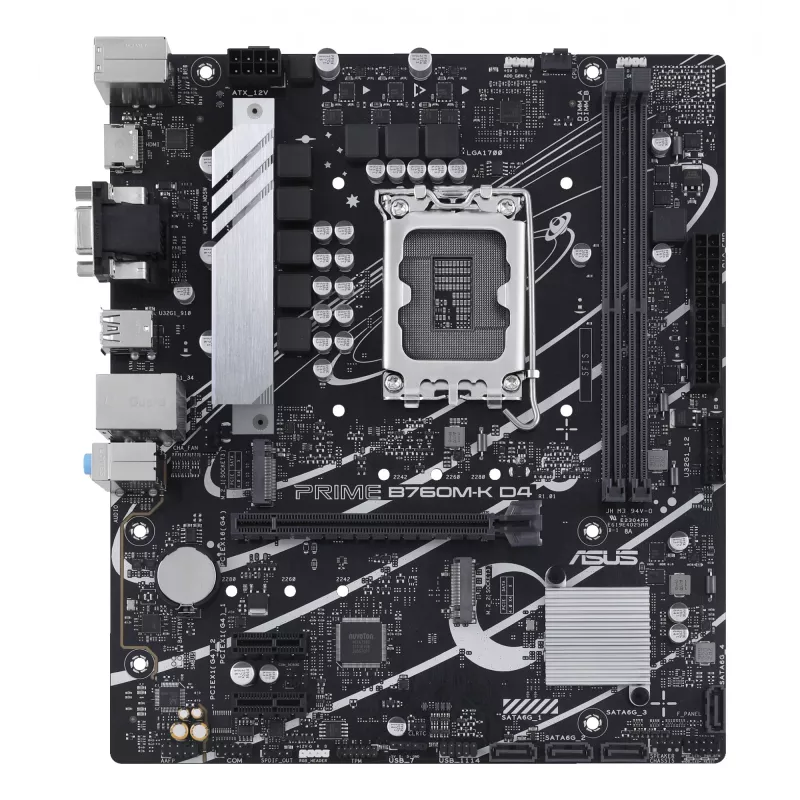

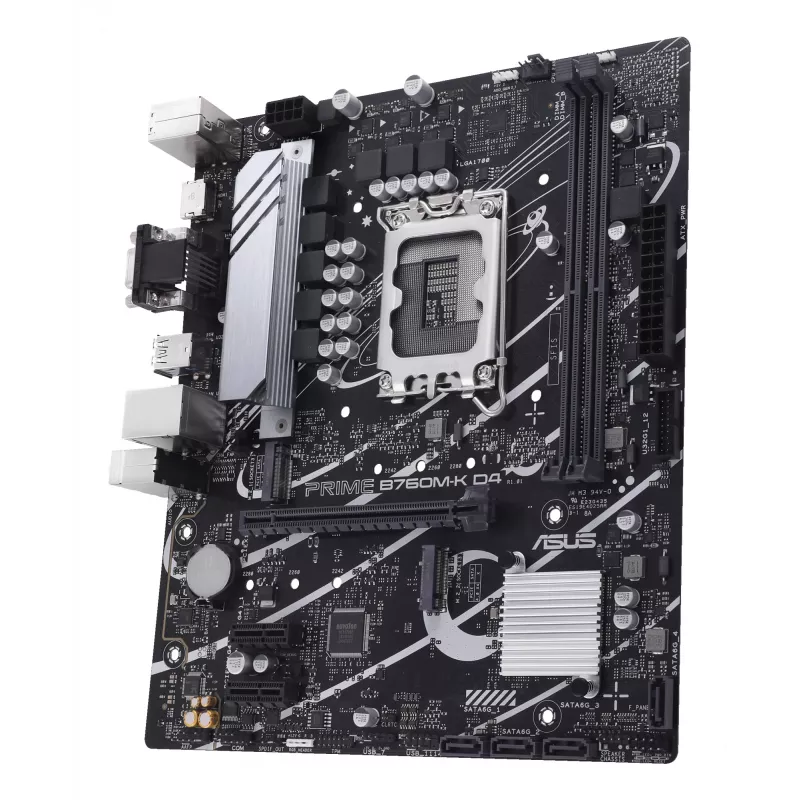

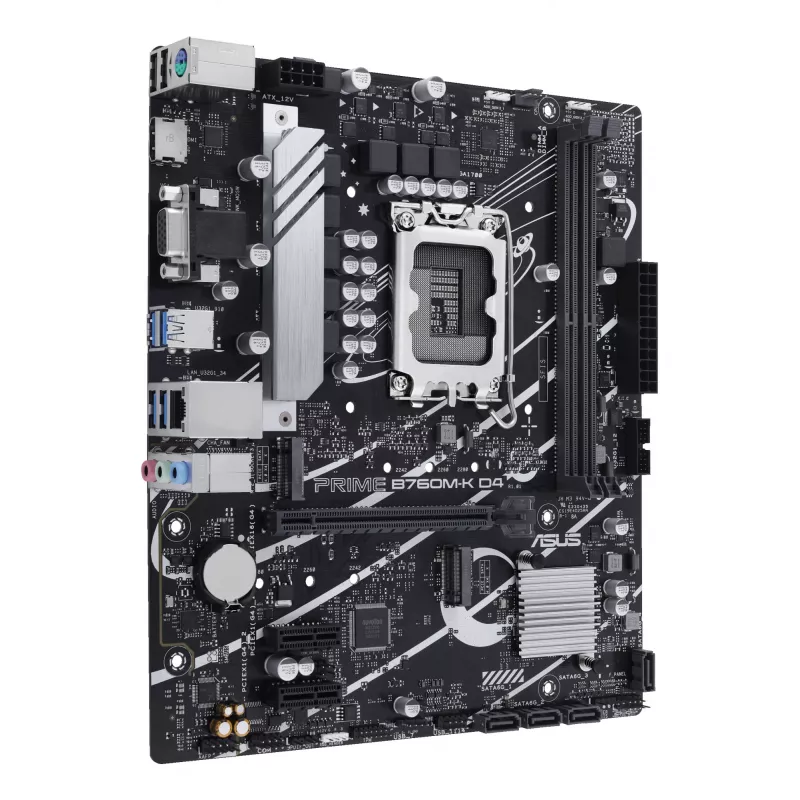

Motherboard ASUS PRIME B760M-K D4 — Intel B760, LGA 1700, Micro ATX, 2x DDR4 DIMM, 64 GB, M.2, SATA III, Ethernet 2.5Gb

The ASUS PRIME B760M-K D4 is a micro ATX motherboard based on the Intel B760 chipset with an LGA 1700 socket. It is compatible with a wide range of Intel processors including Celeron, Pentium Gold, and 12th/13th/14th generation Core i3, i5, i7 and i9 series. The board supports up to 64 GB of DDR4 memory across two DIMM slots and offers M.2 and SATA III storage interfaces for SSD and HDD installations. Integrated networking and legacy/modern display outputs provide flexible connectivity for desktop builds.

Advantages

The board’s micro ATX form factor allows installation in compact cases while retaining essential expansion and connectivity. Support for DDR4 memory and two DIMM slots enables straightforward memory upgrades up to 64 GB. M.2 and SATA III interfaces accommodate NVMe and SATA storage drives. Multiple USB Type-A ports and a 2.5 Gb LAN interface deliver convenient peripheral and network connectivity. Onboard audio provides multichannel output for basic multimedia use.

Suitable for

• Home and office desktop computers
• Compact PC builds using micro ATX cases
• Light to moderate productivity tasks and web browsing
• Systems requiring a mix of M.2 NVMe and SATA storage

Key specifications

• Form factor: Micro ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (supports Intel Celeron, Pentium Gold, Core i3/i5/i7/i9)
• Memory type: DDR4-SDRAM, 2 × DIMM slots, up to 64 GB total
• Storage interfaces: M.2 and SATA III

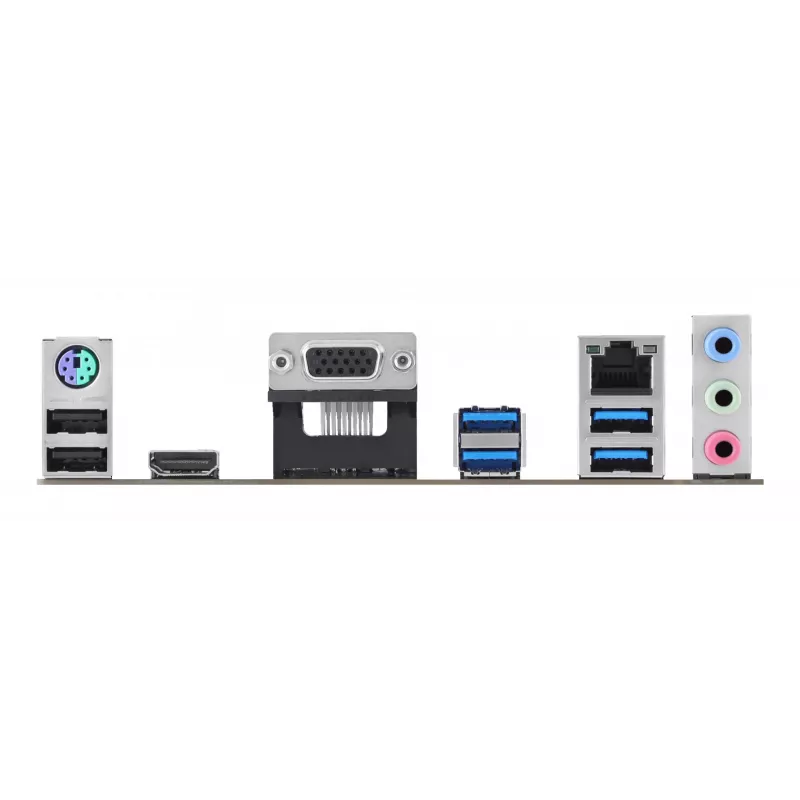

• Rear I/O: HDMI, VGA (D-Sub)
• USB ports: 2 × USB 2.0, 4 × USB 3.2 Gen 1 (Type-A)
• LAN: 2.5 Gigabit Ethernet (RJ-45)
• Onboard audio: 7.1-channel capability
• Weight: 528 g

How to use

Install the motherboard into a compatible micro ATX case following the case and motherboard standoff layout. Fit an LGA 1700 CPU and the appropriate cooler, insert DDR4 DIMM modules into the two memory slots, and connect an M.2 SSD and/or SATA drives as required. Connect front-panel headers, power supply cables, and rear I/O devices such as monitor(s), keyboard, mouse and network cable. After assembly, enter the BIOS/UEFI to verify processor, memory, storage and boot order settings, and install the operating system and drivers provided by the manufacturer.

Recommendations

Use DDR4 memory modules matched in speed and capacity for best stability, attach the CPU cooler according to the manufacturer’s instructions to ensure proper thermal contact, and keep BIOS/firmware updated for processor and memory compatibility. When using multiple storage devices, configure RAID in BIOS only after backing up data.
