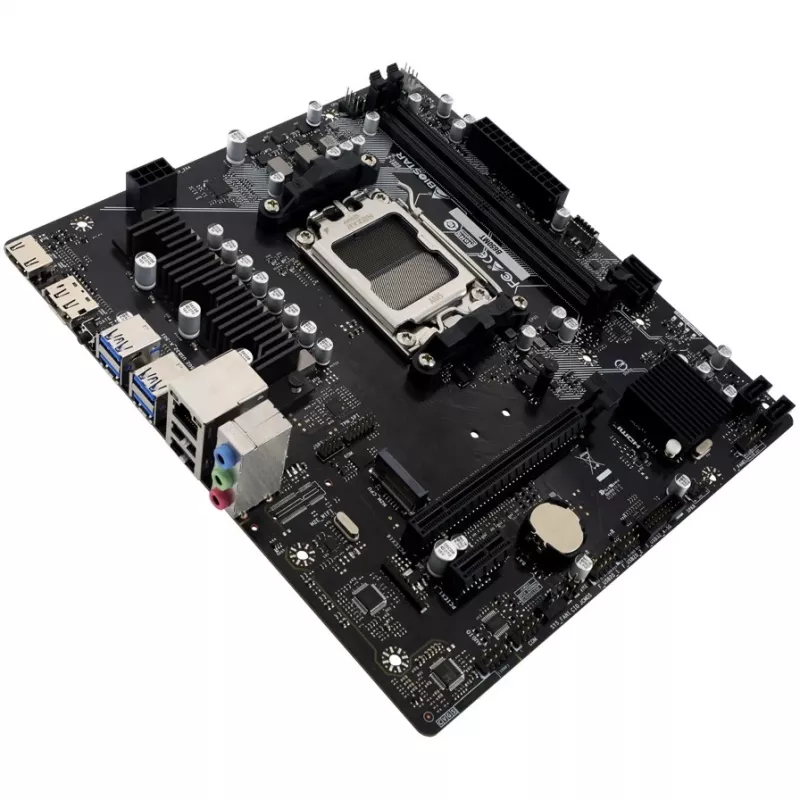

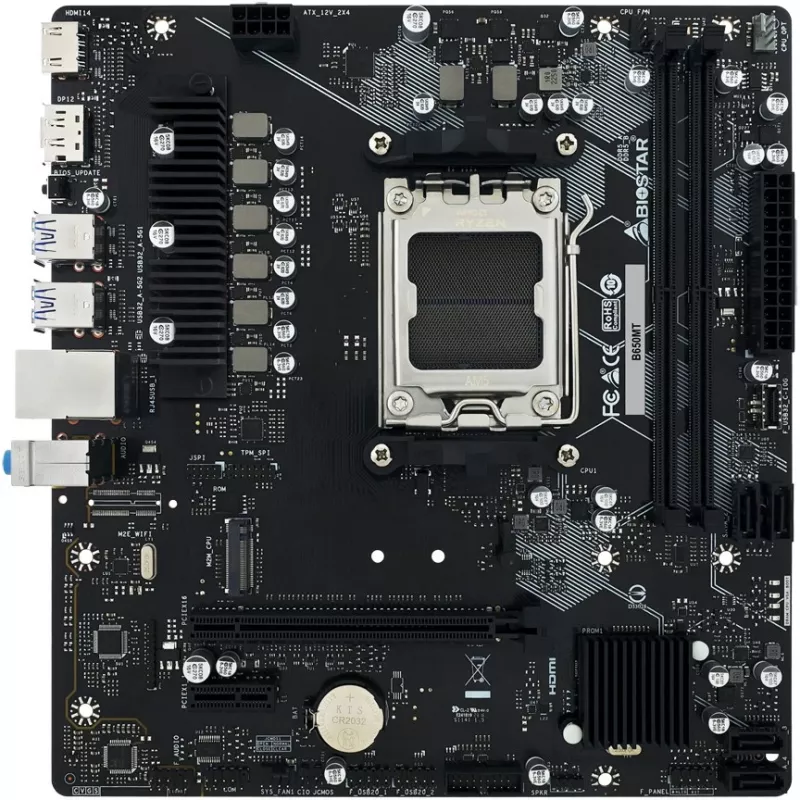

Motherboard BIOSTAR B650MT Micro ATX, AMD B650, Socket AM5, DDR5, 2x DIMM, 96GB, 1x M.2, 4x SATA III, Gigabit LAN

The Biostar B650MT is a Micro ATX motherboard with the AMD B650 chipset and Socket AM5, designed for AMD Ryzen™ processors. It supports DDR5 memory across two DIMM slots for up to 96 GB, offers PCIe 4.0 M.2 and PCI Express expansion, SATA III storage with RAID 0/1/10 support, integrated Gigabit Ethernet (Realtek RTL8111H) and multiple video outputs including HDMI and DisplayPort with up to 4096 x 2160 resolution. The board includes enhanced audio features, robust power delivery, and a UEFI BIOS with utilities for BIOS updates and fan control.

Advantages

The motherboard provides PCIe® 4.0 M.2 and PCIe 4.0 expansion lanes for fast NVMe storage and GPUs, DDR5 support with up to 6000+ MHz (OC) potential, and SATAIII 6 Gbps ports for legacy drives. Integrated HD audio with Hi‑Fi Ground, Hi‑Fi AMP and Smart Ear utility improves headphone and front-panel audio quality. Durable components such as solid capacitors, high‑capacity inductors and a moistureproof PCB increase reliability. Protection features include Super LAN surge protection, ESD safeguards and OC/OV/OH protections to help prevent damage from electrical faults.

Suitable for

• Gaming systems with AMD Ryzen processors
• Compact Micro ATX builds
• Workstations requiring fast NVMe storage and DDR5 memory
• Home and office PCs needing Gigabit Ethernet and multiple display outputs

Key specifications

• Form factor: Micro ATX
• Chipset: AMD B650
• Socket: AM5
• Memory: 2 × DDR5 DIMM slots, up to 96 GB
• Storage interfaces: PCIe 4.0 M.2, SATA III 6 Gbps (RAID 0/1/10)
• Expansion: PCIe 4.0 slots and PCIe x1 (Gen3) slot
• LAN: Gigabit Ethernet (Realtek RTL8111H) with Super LAN Surge Protection
• Audio: HD Audio, Hi‑Fi Ground, Hi‑Fi AMP, Smart Ear

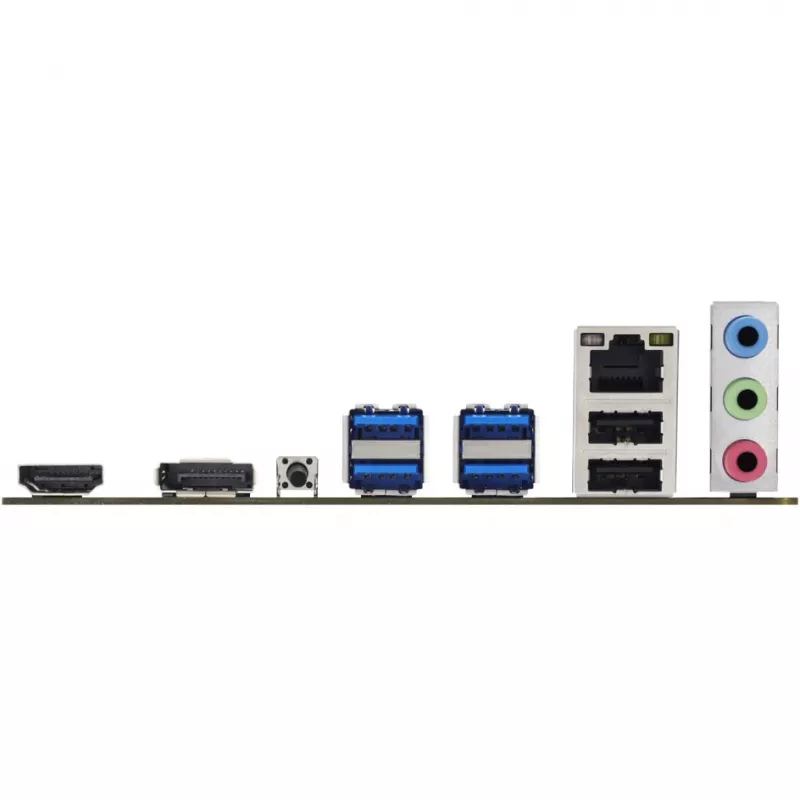

• Video outputs: HDMI (4K2K) and DisplayPort
• USB: USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A
• BIOS/Tools: UEFI BIOS, BIO‑Flasher, Smart Update, SMART BIOS UPDATE

How to use

Install the motherboard into a compatible Micro ATX case and mount an AM5 processor according to the CPU and cooler manufacturer instructions. Populate DDR5 DIMMs into the two memory slots, connect PCIe devices and M.2/SATA storage as required, and attach front-panel connectors, fans and power cables. Use the UEFI BIOS for initial configuration, enabling required RAID modes for SATA drives and adjusting memory/XMP or AMD EXPO profiles for DDR5. Update BIOS using BIO‑Flasher or the SMART BIOS USB port if a newer firmware version is needed.

Recommendations

For stable performance, use a quality 4‑ or 6‑pin CPU cooler and a power supply with adequate wattage for your CPU and GPU. Enable AMD EXPO or correct memory profiles in UEFI for optimized DDR5 timing, and connect high‑end headphones to the front-panel output with Smart Ear settings adjusted for low or high gain as needed.
