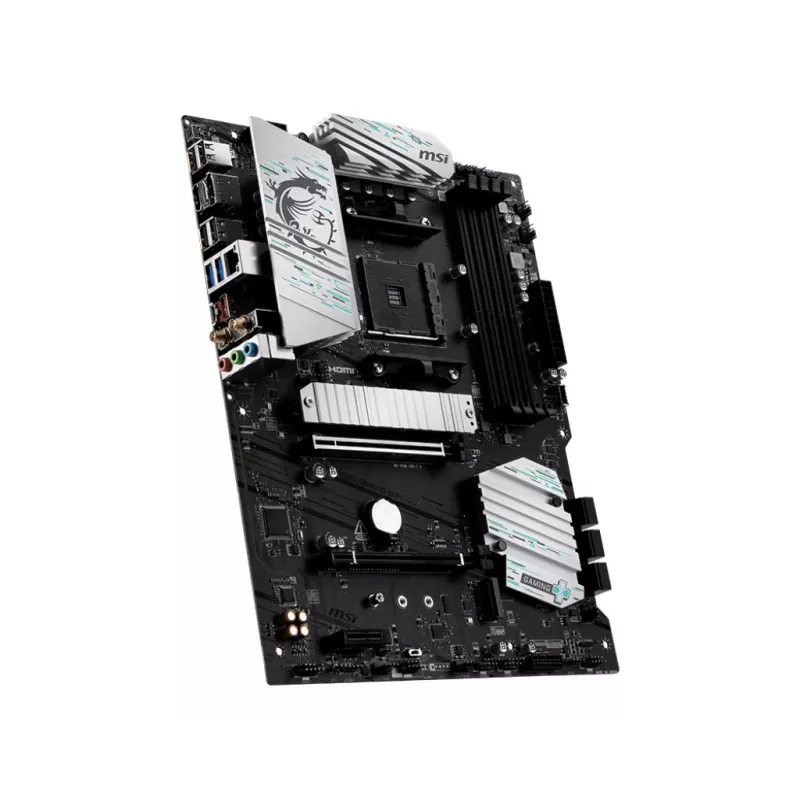

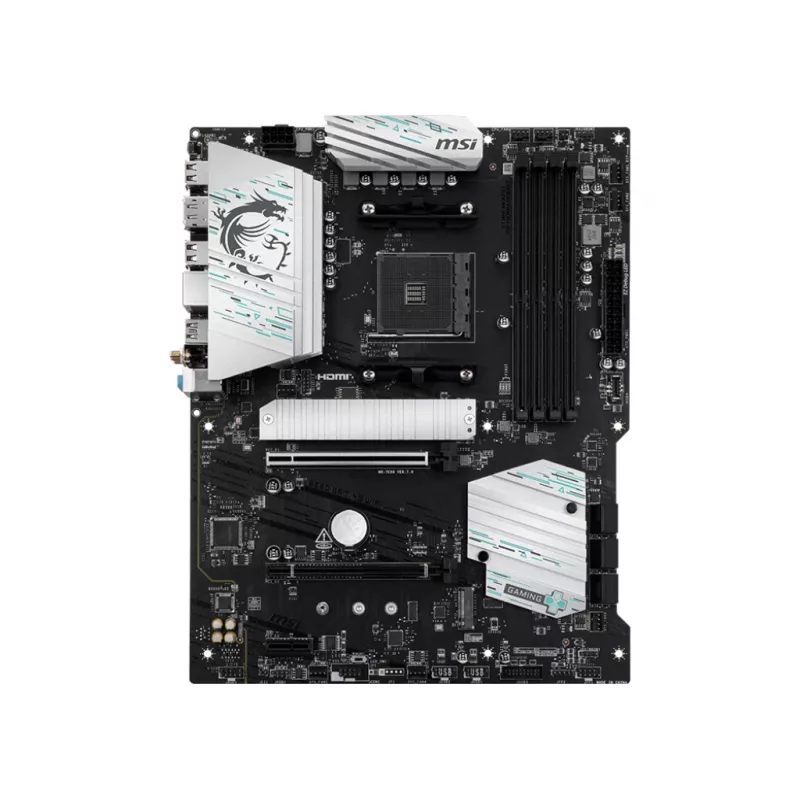

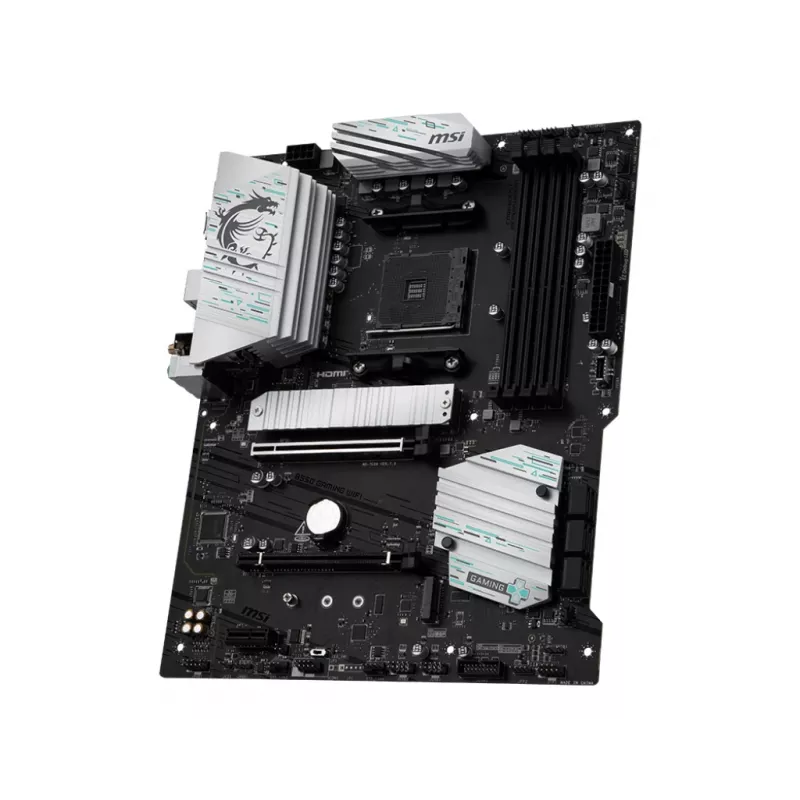

Motherboard MSI B550 GAMING WIFI ATX — AMD B550, Socket AM4, DDR4, 4 DIMM, 128 GB, Wi-Fi 5, Gigabit LAN

The B550 GAMING WIFI is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

One Finger for EZ GPU Installation
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

Clear CMOS Button
Restore the BIOS to the default settings – helpful in 99% of the cases to successfully boot again.

10+2+1 Duet Rail POWER system
Unleash and sustain maximum performance with a flagship VRM design built with a total of 10 + 2 + 1 digital power phases. With a 8-pin power connector, B550 GAMING WIFI is ready for the challenge of heavy-loading tasks.

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink
The PCH heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

FAST AND FUTURE-READY STORAGE
MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

MSI B550 GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

How to use

Install the MSI B550 GAMING WIFI into a compatible ATX case and connect the 8‑pin CPU power cable and 24‑pin ATX power connector from your PSU. Fit an AM4‑compatible Ryzen processor and the appropriate CPU cooler, populate DDR4 DIMM slots according to the manual for dual‑channel operation, and mount M.2 SSD(s) using the EZ M.2 clip and M.2 Shield Frozr for thermal protection. Insert the graphics card into the reinforced PCIe x16 slot and secure it with the enlarged PCIe clip. Connect SATA drives, front panel headers and case fans, then attach the Wi‑Fi antennas. Power on and enter the UEFI BIOS to configure boot order, memory XMP/OC settings and network options.

Recommendations

For stable performance under sustained heavy load, ensure proper case airflow and use the MOSFET thermal pads and extended heatsinks provided. Update the UEFI BIOS to the latest version for optimal CPU and memory compatibility and enable recommended memory XMP/OC profiles only if adequate cooling and power delivery are in place.
