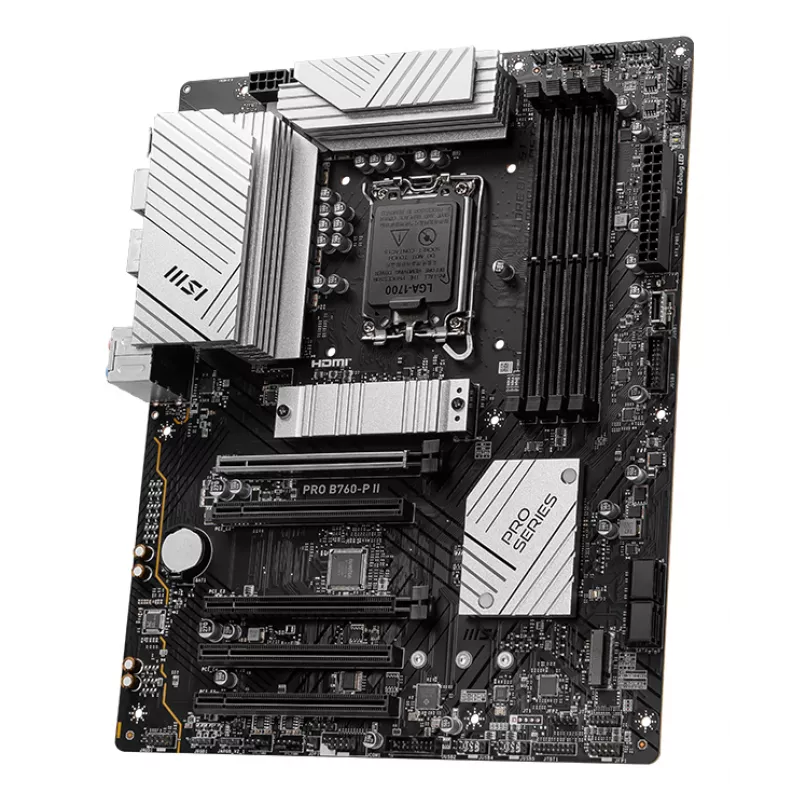

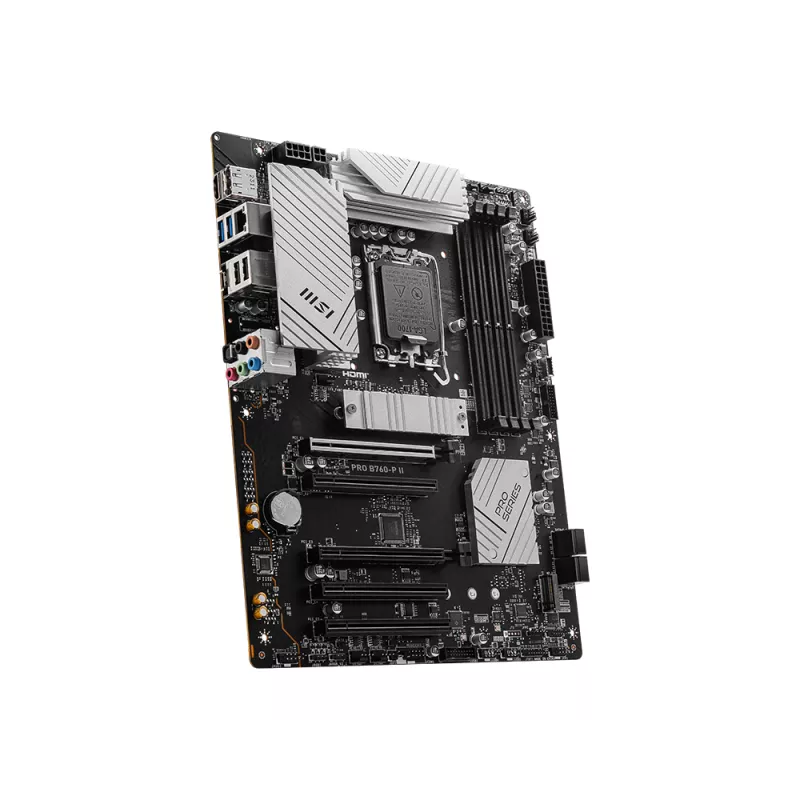

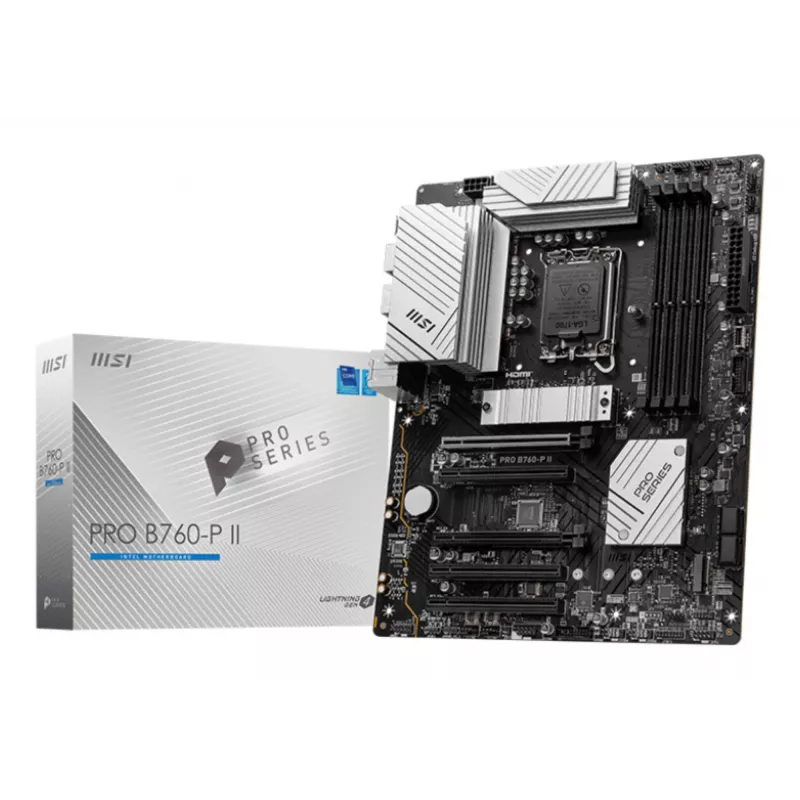

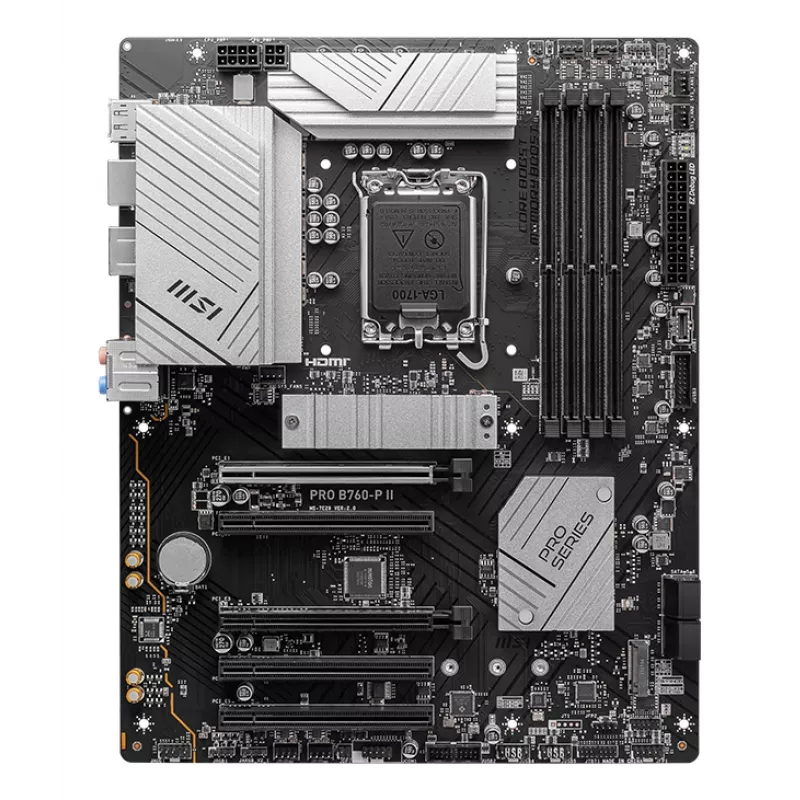

Motherboard MSI PRO B760‑P II ATX – Intel B760, LGA 1700, DDR5, 4x DIMM, 256 GB, LAN 2.5Gb, HDMI 2.1, 2x M.2

The MSI PRO B760-P II is an ATX motherboard with the Intel B760 chipset and LGA 1700 socket, compatible with Intel® Celeron®, Pentium® Gold and Core™ i3/i5/i7 processors. It supports DDR5 memory up to 256 GB across four DIMM slots, PCIe 4.0 connectivity, SATA III storage with RAID 0/1/5/10 support, and a 2.5 Gigabit Ethernet port (Realtek RTL8125-BG). Designed for reliable thermal management, the board incorporates enlarged heatsinks, reinforced solder points and optimized support for water cooling to maintain stable performance under heavy loads.

Advantages

The motherboard features an extended heatsink and a reinforced VRM heatsink to improve heat dissipation for sustained CPU performance. An M.2 Shield Frozr protects and thermally stabilizes M.2 SSDs while 7W/mK thermal pads and additional choke pads provide efficient heat transfer for MOSFETs and chokes. The chipset heatsink reduces dust and noise and enhances cooling efficiency. PCIe Gen4 x16 lanes provide increased bandwidth and heavy-soldered PCIe connections add mechanical strength for large graphics cards. A dedicated water pump header supports up to 3 A for custom or AIO water cooling setups.

Suitable for

• Building mid- to high-performance desktop PCs with Intel LGA 1700 CPUs
• Systems requiring fast NVMe and SATA storage with RAID configurations
• Workloads that demand stable power delivery and sustained thermal performance
• Setups using AIO or custom water cooling systems

Key specifications

• Form factor: ATX
• Chipset: Intel B760
• CPU socket: LGA 1700 (Intel® Celeron®, Pentium® Gold, Core™ i3/i5/i7)
• Memory: DDR5, 4 DIMM slots, up to 256 GB
• Expansion: PCI Express 4.0 (x16), reinforced heavy-soldered connections
• Storage: M.2 with M.2 Shield Frozr, SATA III, RAID 0/1/5/10
• LAN: 2.5 Gigabit Ethernet (Realtek RTL8125-BG)
• Cooling: extended heatsinks, chipset heatsink, 7W/mK thermal pads, dedicated water pump header (up to 3 A)

How to use

Install the LGA 1700 CPU into the socket following the processor manufacturer’s instructions, populate DDR5 DIMMs across the slots according to the motherboard manual, and mount storage devices into M.2 slots or SATA connectors. Secure expansion cards in PCIe slots using the reinforced brackets and soldered points. Connect the chassis and CPU fans or a water pump to the provided headers, and apply thermal pads or heatsinks only where specified by the manual. Configure BIOS settings for memory, storage RAID, and boot order before installing an operating system.

Recommendations

For best thermal results, ensure good case airflow or use an AIO/custom water cooling solution; verify M.2 SSD seating under the M.2 Shield Frozr and keep BIOS and driver firmware up to date to maintain stability and performance.
