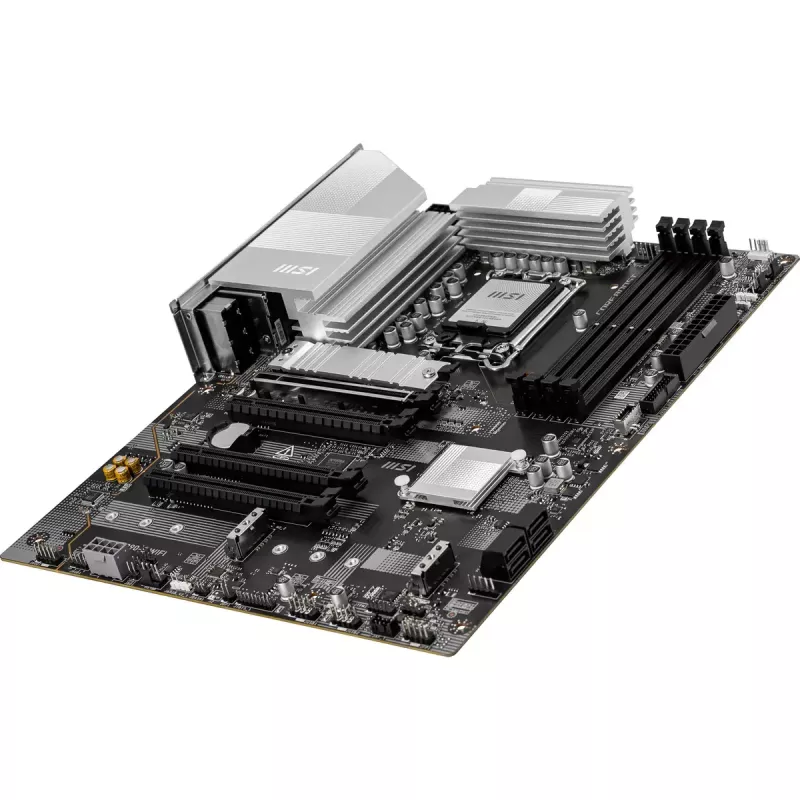

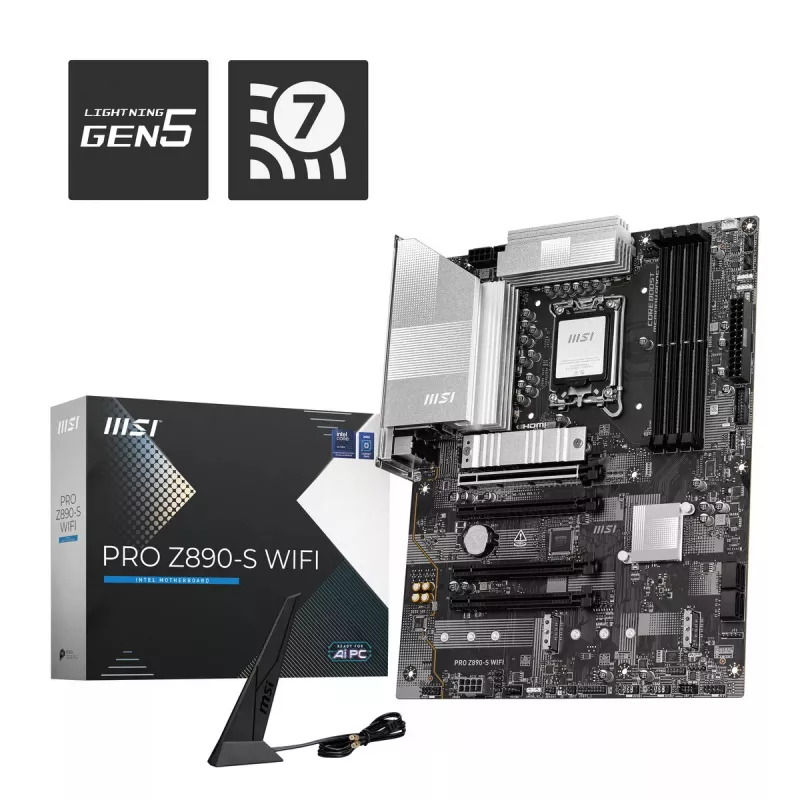

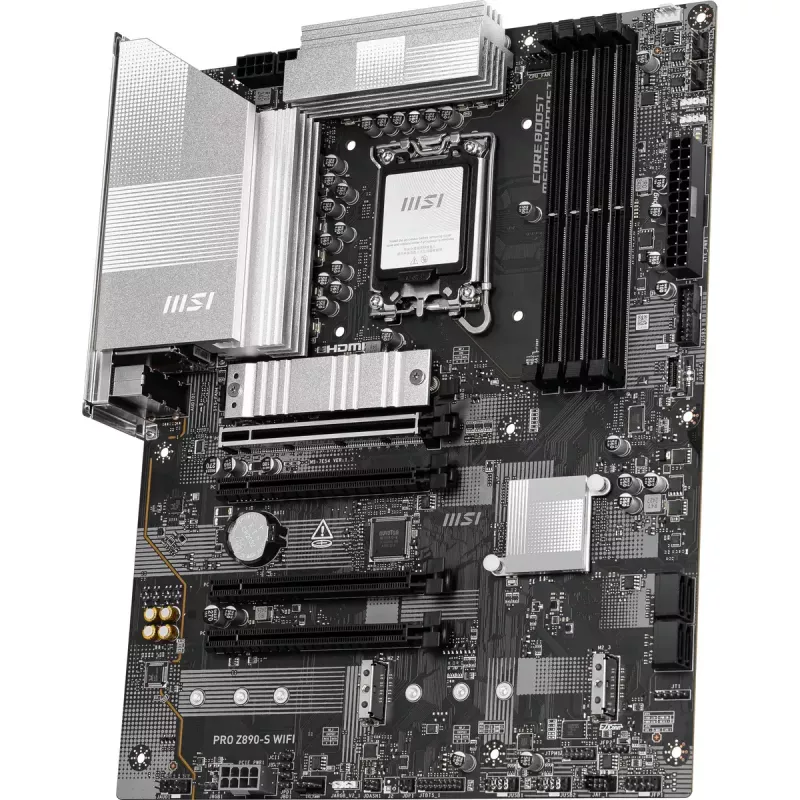

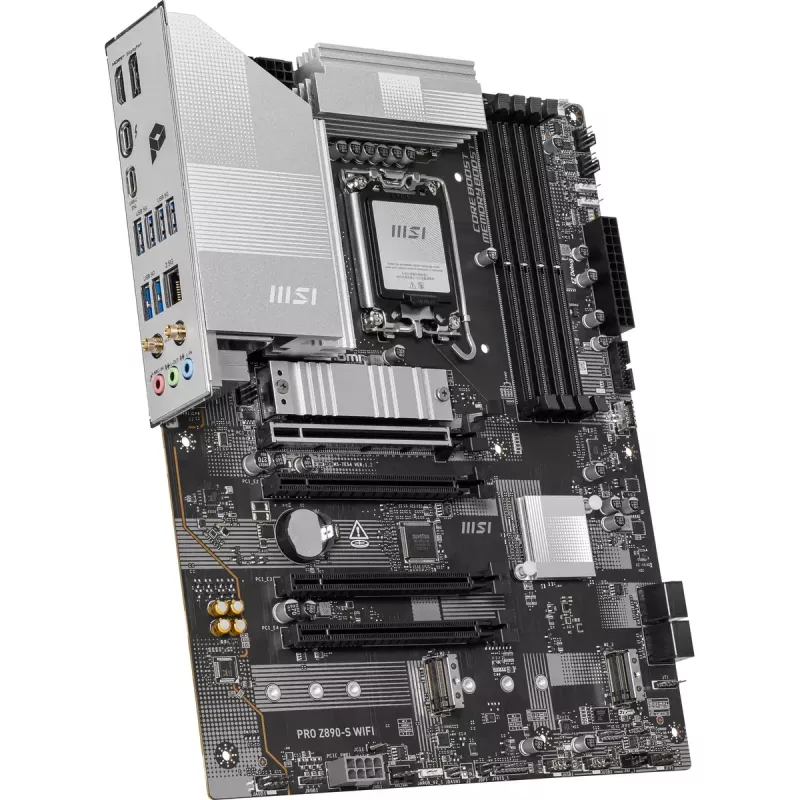

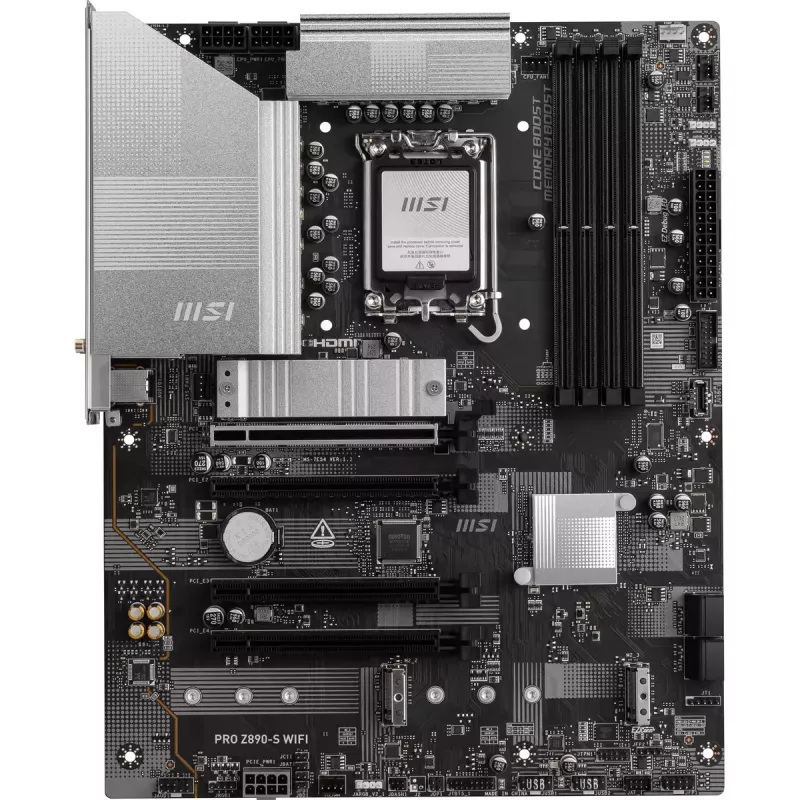

Motherboard MSI PRO Z890-S WIFI Intel Z890 LGA 1851 (Socket V1) ATX

The MSI PRO Z890-S WIFI is an ATX motherboard with an LGA 1851 (Socket V1) for Intel Core Ultra and other supported Intel processors. It features an Intel Z890 chipset, support for DDR5 memory up to 256 GB across four DIMM slots, PCIe 5.0 M.2 storage, multiple SATA III ports, and a robust connectivity suite including Wi‑Fi 7 and 2.5 Gigabit Ethernet. The board uses a silver color scheme designed to match both light and dark PC builds and includes MSI-specific utilities such as MSI Center and BIOS enhancements with AI features.

Advantages

PRO Z890-S WIFI combines a flagship VRM layout with a 12+1+1+1 digital power phase design and dual power connectors to support high-end processors and sustained workloads. The board offers modern high-speed I/O — Wi‑Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, and PCIe 5.0 M.2 — and convenience features like the EZ PCIe Clip II for one-finger GPU installation and removal. Its ATX form factor provides multiple expansion options for storage and add-in cards.

Suitable for

• Workstations and professional productivity PCs
• Content creation and multi-threaded workloads
• Enthusiast builds requiring PCIe 5.0 storage and Thunderbolt 4
• Home or office systems needing Wi‑Fi 7 and 2.5G Ethernet

Key specifications

• Form factor: ATX
• Chipset: Intel Z890
• Socket: LGA 1851 (Socket V1)
• Memory: 4× DDR5 DIMM slots, up to 256 GB
• Storage: PCIe 5.0 M.2 support, SATA III ports
• Networking: Wi‑Fi 7 (EZ Antenna), 2.5 Gb LAN
• Expansion: PCIe slots with EZ PCIe Clip II
• I/O: Thunderbolt 4 support

How to use

Install the motherboard into a compatible ATX case and connect the LGA 1851 CPU following the processor and socket manufacturer instructions. Populate DDR5 modules into the four DIMM slots according to the motherboard manual for optimal channel configuration, and attach storage devices to M.2 or SATA connectors as required. Use the EZ PCIe Clip II to secure or remove a graphics card by pressing the tail-like lock with one finger. Connect power using the board's dual CPU power connectors and standard 24-pin ATX connector, then configure firmware settings in BIOS or MSI Center and install necessary drivers.

Recommendations

For stable operation with high-performance processors, use quality cooling for VRM and CPU, install matched DDR5 modules in the recommended slots, and keep BIOS and MSI drivers up to date. When installing a GPU in tight cases, use the EZ PCIe Clip II to avoid strain on the slot.
