Motor de passo Samsung NEMA 17 1,2A 5,2W 2,2V 17PM-K049-P6WS JC31-00158A

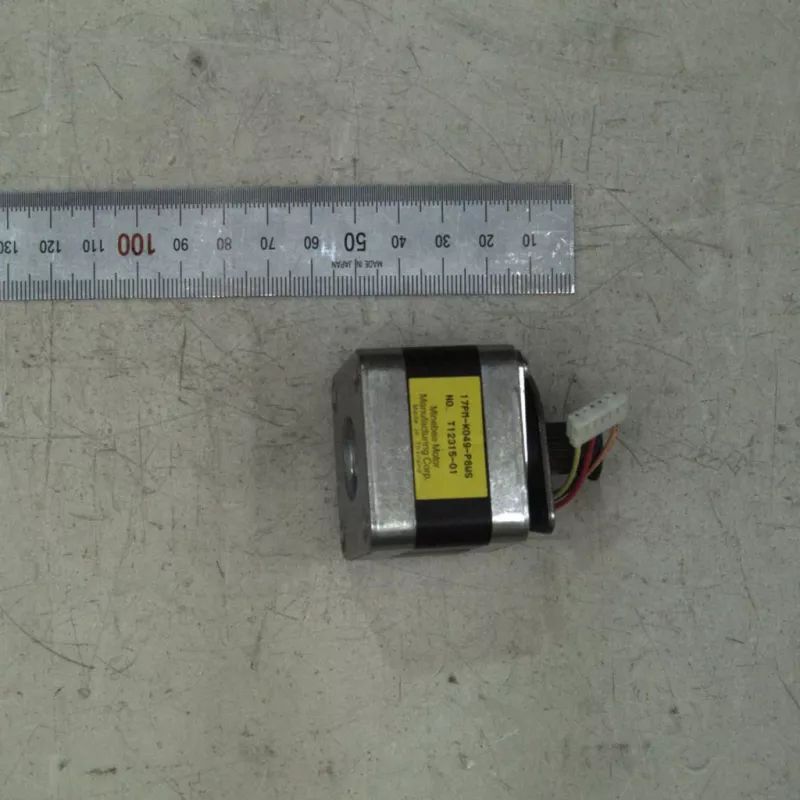

The Samsung Stepper Motor (JC31-00158A) is a high-precision NEMA 17 bipolar stepper motor designed for reliable motion control in industrial and commercial applications. With a step angle of 1.8° and 200 steps per revolution, it delivers accurate positioning and smooth operation. This motor is ideal for use in printers, scanners, CNC machines, and other automation equipment.

Advantages

This stepper motor offers excellent torque at low speeds, precise positioning without feedback, and long service life. Its compact NEMA 17 frame size (42.3 x 42.3 mm) allows easy integration into space-constrained designs. The bipolar winding configuration provides efficient power usage and high holding torque.

Suitable for

• 3D printers and CNC routers
• Office equipment such as printers and scanners
• Medical devices and laboratory instruments
• Industrial automation and robotics

Key specifications

• Motor Type: Stepper Motor
• Frame Size: NEMA 17
• Rated Current per Phase: 1.2 A
• Rated Voltage per Phase: 2.2 V
• Rated Power: 5.2 W
• Step Angle: 1.8°
• Steps per Revolution: 200
• Number of Phases: 2-Phase Bipolar
• Phase Resistance: Approx. 1.83 Ω
• Flange Dimensions: 42.3 x 42.3 mm
• Mounting Hole Spacing: 31 mm
• Shaft Diameter: 5 mm
• Manufacturer Part Number: JC31-00158A
• Motor Model: 17PM-K049-P6WS

Recommendations

For optimal performance, pair this motor with a suitable stepper motor driver capable of supplying 1.2 A per phase. Ensure proper heat dissipation in high-duty-cycle applications. Compatible with standard NEMA 17 mounting patterns.
