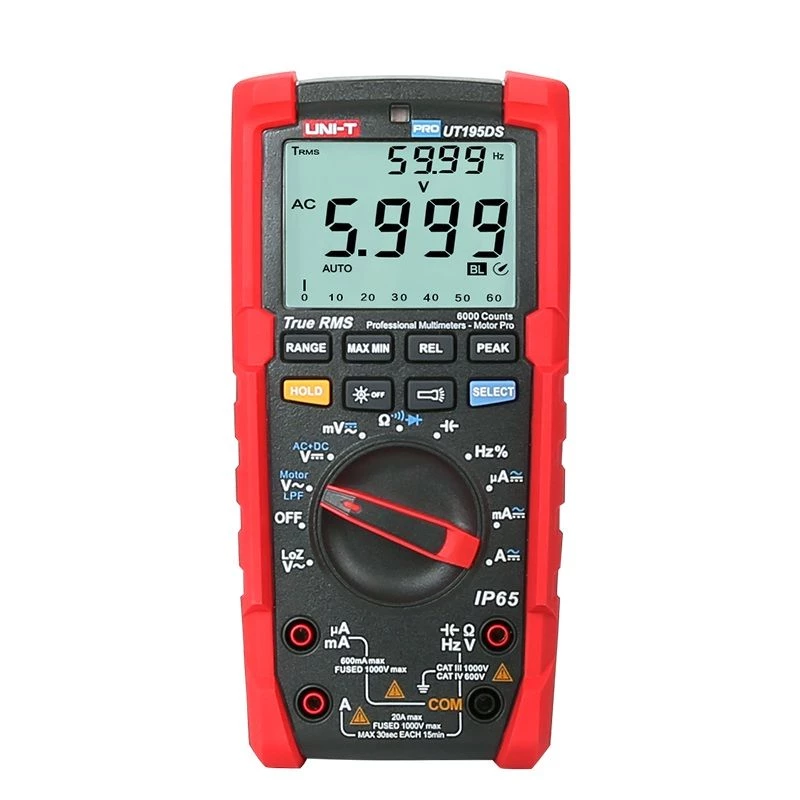

Multímetro digital ILIKE UT195DS True RMS com proteção IP65, CAT III 1000V/CAT IV 600V, 60000 contagens, LoZ, LPF, Data Hold, retroiluminação

Electrical troubleshooting demands precision, safety, and reliability—especially in harsh environments where dust and moisture threaten instrument longevity. The ILIKE UT195DS digital multimeter answers that call with a rugged IP65-rated design, true RMS accuracy, and a 60000-count display that reveals even the smallest signal fluctuations. Whether you're diagnosing industrial machinery, verifying HVAC systems, or testing automotive circuits, this meter delivers the confidence to work faster and safer.

Who is it for

Professional electricians, maintenance technicians, and field service engineers who need a dependable tool for high-energy environments. It's equally suited for advanced hobbyists tackling complex electronics projects where accurate measurements are non-negotiable.

Main features

• True RMS measurement for precise AC voltage and current readings on non-sinusoidal waveforms
• Wide measurement ranges: DC/AC voltage up to 1000V, DC/AC current up to 20A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, and temperature from -40°C to 1000°C
• Safety rated CAT III 1000V and CAT IV 600V for use in high-energy circuits
• IP65 dustproof and waterproof protection for reliable operation in tough conditions
• Special functions: LoZ (low impedance) to prevent ghost voltage, LPF (low pass filter) for variable frequency drives, Data Hold, Relative mode, Peak Hold, and backlight for low-light work
• Auto and manual ranging for flexibility, plus diode test and continuity buzzer for quick checks
• Powered by 6 AA batteries (not included) for extended field use

Specifications

• Display count: 60000
• DC voltage range: 60mV – 1000V
• AC voltage range: 60mV – 1000V (45Hz – 5kHz bandwidth)
• DC current range: 600µA – 20A
• AC current range: 600µA – 20A
• Resistance range: 600Ω – 60MΩ
• Capacitance range: 6nF – 60mF
• Frequency range: 60Hz – 10MHz
• Temperature range: -40°C to 1000°C (-40°F to 1832°F)
• Safety rating: CAT III 1000V, CAT IV 600V
• IP rating: IP65
• Power source: 6 x 1.5V AA batteries
• Diode test: Yes
• Continuity buzzer: Yes
• Backlight: Yes

Tips

For accurate temperature readings, use a compatible K-type thermocouple. When working near variable frequency drives, activate the LPF function to filter out high-frequency noise. Always verify the meter's CAT rating matches your working environment, and replace batteries promptly when the low-battery indicator appears to maintain measurement accuracy.
