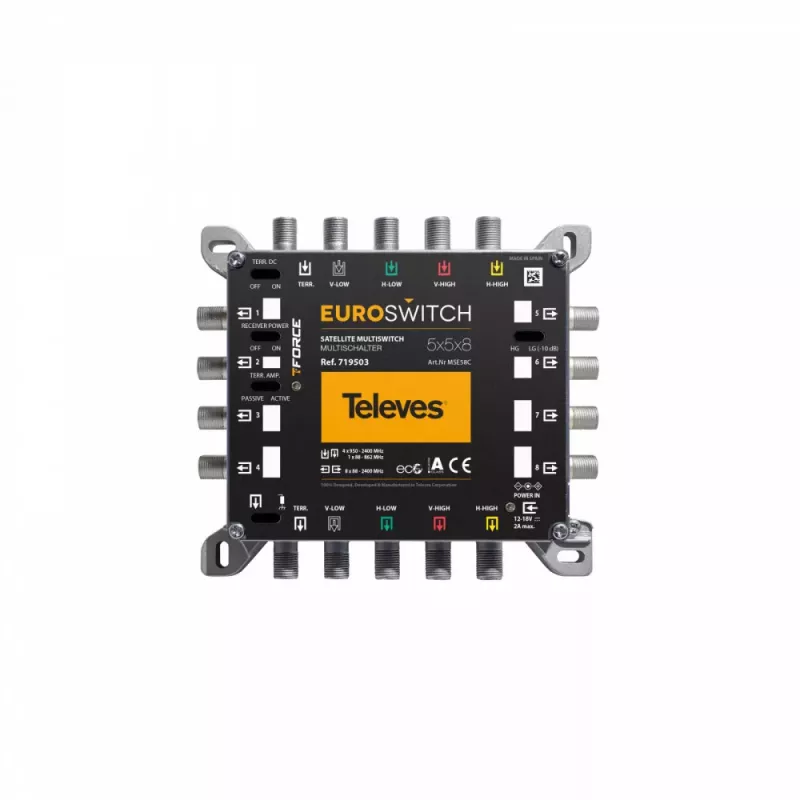

Televes EuroSwitch 5x5x8 Multiswitch, ref. 719503

The Televes EuroSwitch 5x5x8 Multiswitch (ref. 719503) is a compact and lightweight multiswitch designed for satellite and terrestrial signal distribution. It features very low through and tap losses, excellent isolation between inputs and outputs, and TForce technology that automatically adjusts the terrestrial output level to the optimal value. The switch includes a Low Gain (LG) / High Gain (HG) 10dB attenuation switch for the satellite input for each group of 8 users.

Key features

• Very compact dimensions and weight
• Very low through and tap losses
• Excellent isolation between inputs and outputs
• TForce technology: terrestrial output level automatically adjusted (TERR. AMP. ACTIVE) to optimal level
• Low Gain (LG) / High Gain (HG) 10dB switch for satellite input attenuation for each group of 8 users
• Multiple power options: from power supply, from cascade via satellite inputs or outputs, or from satellite receiver (RECEIVER POWER ACTIVE)
• 100% European design, quality and manufacturing
• High shielding (class A)
• Die-cast housing (zamak)
• Switch for cascade and terminal modes
• Low power consumption under standard conditions; ECO mode reduces consumption as the number of connected users decreases
• Wide power supply range 12-18V, compatible with most existing systems
• Power pass between all inputs and cascades
• Identification (colours) on input and output

Specifications

• Brand: Televes
• Model: 719503
• Reference: 719503
• Type: EuroSwitch 5x5x8 Multiswitch
