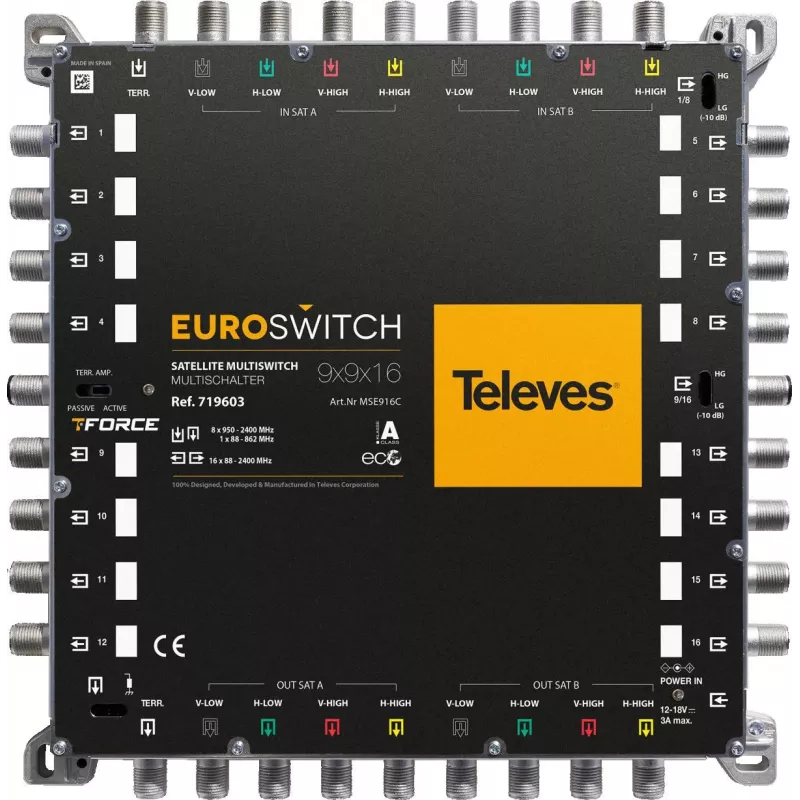

Multiswitch Televes EUROSWITCH 9x9x16 ref. 719603

The Televes EUROSWITCH 9x9x16 is a high-performance cascaded multiswitch designed for distributing satellite and terrestrial TV signals to up to 16 users. It features 8 satellite inputs for two Quattro LNBs, 1 terrestrial input, and 9 trunk outputs for cascading additional switches. Ideal for multi-dwelling units and small to medium installations, it ensures reliable signal distribution with minimal loss.

Advantages

Supports up to 16 user outputs with flexible cascading capability. Compatible with DiSEqC 2.0 and standard switching commands (13/18V, 0/22kHz). High isolation between inputs and outputs (>30 dB) ensures minimal interference. Compact design for wall mounting.

Suitable for

• Multi-dwelling buildings (apartments, condos)
• Small hotels or offices
• Single-family homes with multiple TV points

Key specifications

• Multiswitch Type: Cascaded
• Satellite Inputs: 8 (for 2 Quattro LNBs)
• Terrestrial Inputs: 1
• User Outputs: 16
• Trunk Outputs: 9 (8 SAT + 1 Terr.)
• Satellite Frequency Range: 950-2150 MHz
• Terrestrial Frequency Range: 47-862 MHz
• Return Path: 5-65 MHz (passive)
• Connectors: F-type
• Power Supply: External (not included)

Recommendations

For optimal performance, use with Televes power supply unit (e.g., ref. 732101) and high-quality F-type connectors. Ensure proper grounding and surge protection.
