Multiswitch de satélite Televes 714508 5 entradas 5 saídas

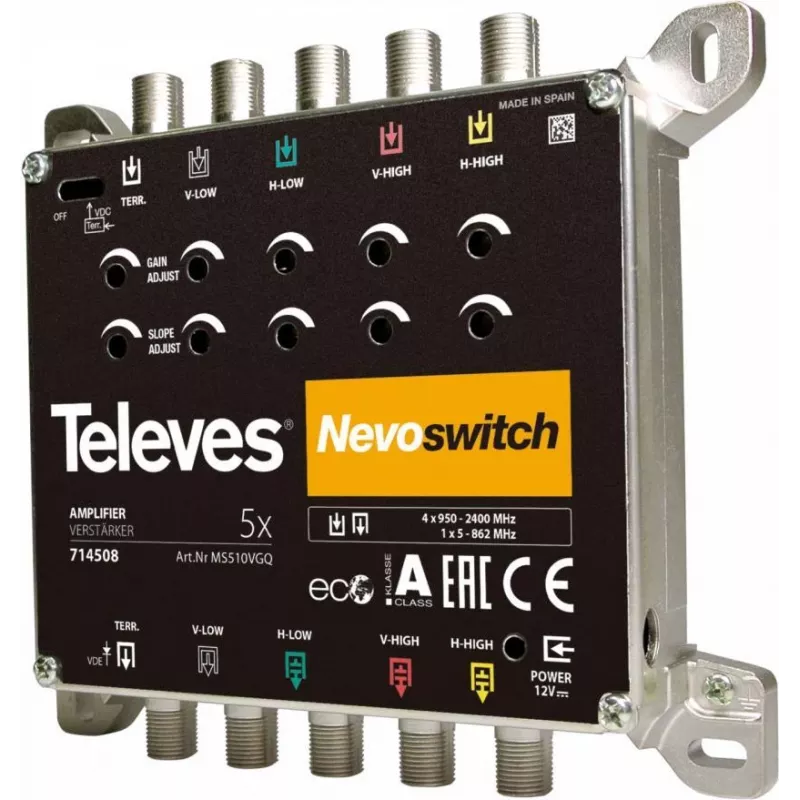

The Televes 714508 satellite multiswitch (NevoSwitch) provides five inputs — one terrestrial and four satellite polarities — and five independent outputs. It distributes and amplifies terrestrial and satellite signals to multiple users while preserving signal quality. The device supports a frequency range of 950–2400 MHz and is designed for stable distribution in shared installations where several receivers require access to the same aerial and LNB inputs.

Advantages

The multiswitch offers compact distribution of one terrestrial and four satellite polarities to five outputs with built-in amplification: approximately 10 dB gain for terrestrial signals and around 11 dB gain for satellite inputs. It supports the specified input voltage levels and draws 300 mA of current, providing consistent performance across connected receivers. The Televes 714508 is suitable for installations that require reliable signal boosting and straightforward connection of multiple users.

Suitable for

• Small apartment buildings or multi-room homes requiring up to five independent outputs
• Distributing one terrestrial antenna and a single LNB (four polarities) to multiple receivers
• Shared installations where equalized signal levels and amplification are needed

Key specifications

• Brand: Televes
• Model / MPN: 714508
• Inputs / Outputs: 5 inputs (1 terrestrial + 4 satellite polarities) / 5 outputs
• Frequency range: 950–2400 MHz
• Amplification: ~10 dB (terrestrial), ~11 dB (satellite)
• Input voltage range: 114–118 dBμV
• Current consumption: 300 mA
• EAN: 8424450181614

How to use

Install the multiswitch in a dry, ventilated location near the antenna/LNB feed. Connect the terrestrial antenna to the terrestrial input and the LNB outputs (vertical/horizontal, low/high) to the four satellite inputs. Use coaxial cables of appropriate quality and secure F-type connectors to each input and output. Connect receiver cables to the five outputs. Power the unit as specified and verify signal levels on each receiver; adjust cabling or position if required to achieve optimal reception.

Recommendations

For best results, use high-quality coaxial cable and maintain short, direct runs where possible. Check connectors for corrosion and ensure the LNB and terrestrial antenna are properly aligned. If signal levels are marginal at the receivers, consider a professional signal measurement and adjustment to balance levels across outputs.
