Multiswitch de satélite Televes 714403 5 entradas 13 saídas

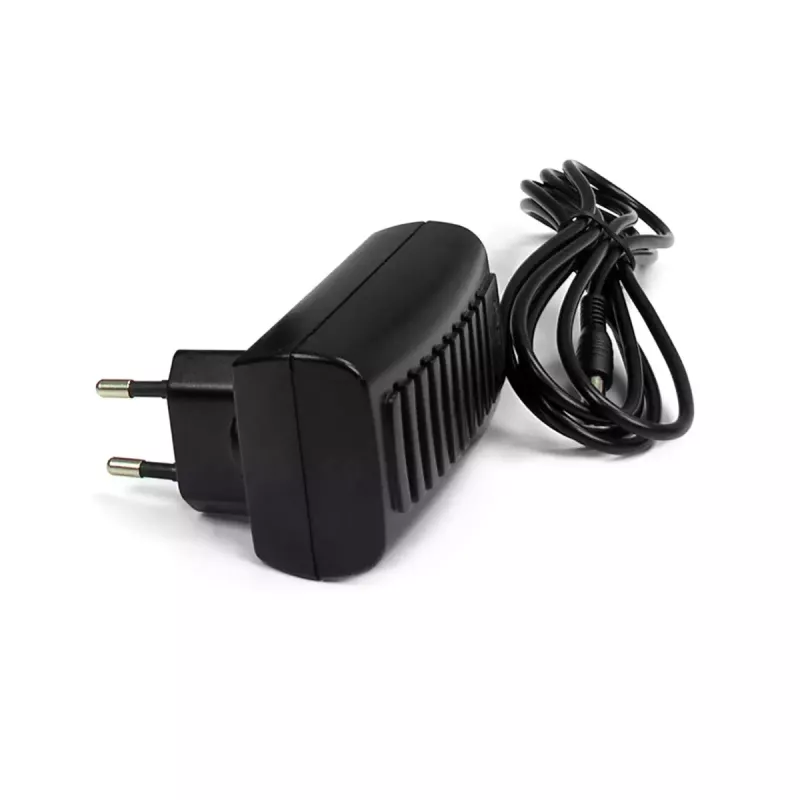

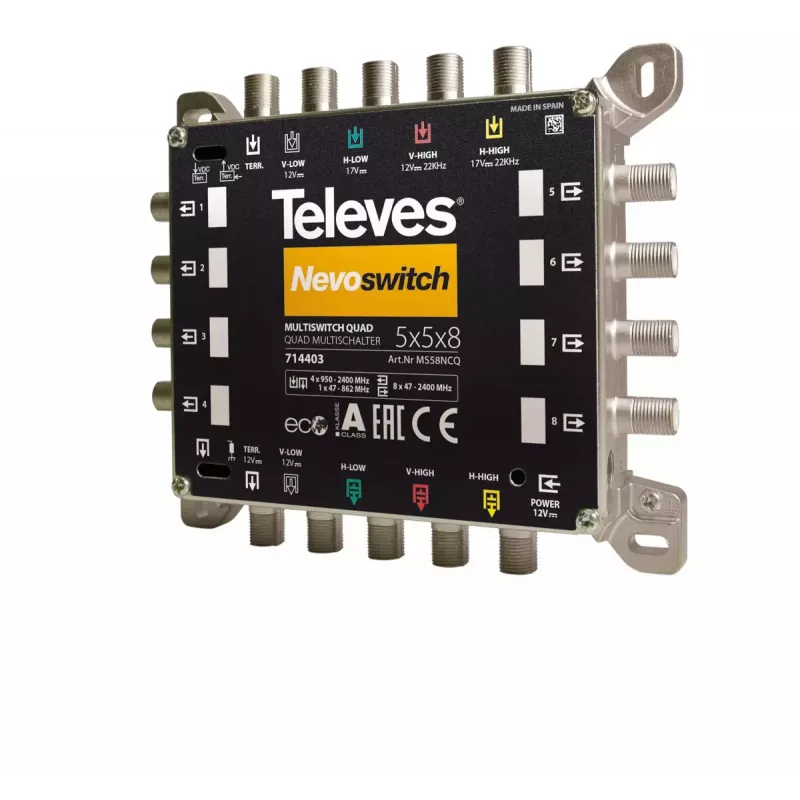

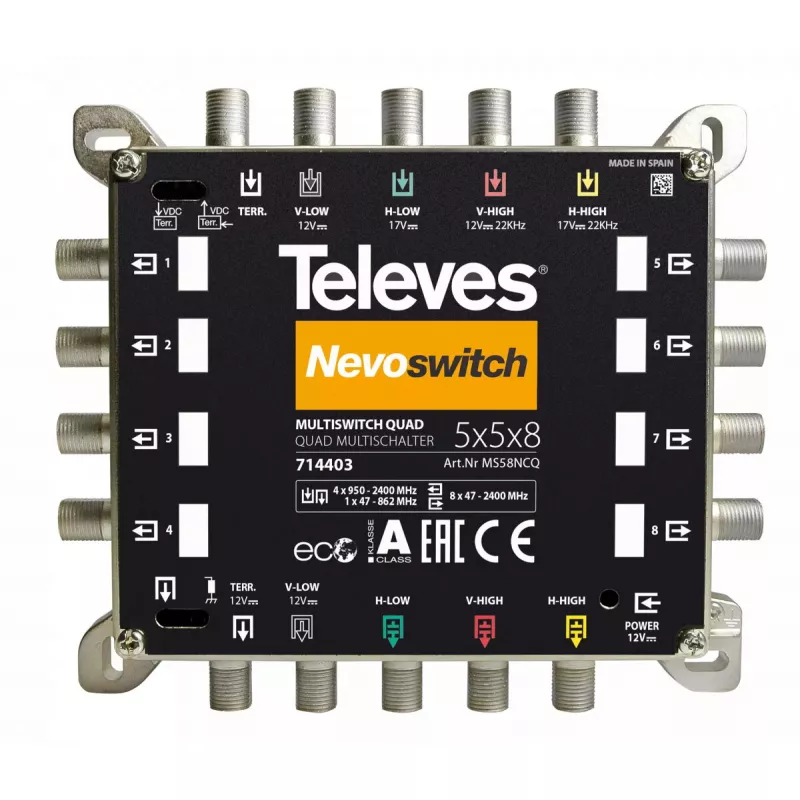

The Televes 714403 multiswitch (model MS58NCQ) is a cascadable, quad-compatible satellite multiswitch with 5 inputs (one terrestrial input and four satellite polarities) and 13 user outputs. It supports a frequency range of 950–2400 MHz and is suitable for distributing satellite and terrestrial signals in residential and small commercial installations. A 12 V power supply is included (ref. 9916).

Advantages

This multiswitch is cascadable and can operate as a terminal (star topology) or be linked in cascade using a simple switch. It generates a 22 kHz tone for compatibility with any LNB, including QUAD LNBs, and supports remote power feeding via the VL line. The unit allows DC circulation from the inputs upward and includes an active terrestrial path and a switch to either supply power to terrestrial preamplifiers or permit current circulation. Compact dimensions (137 × 29 × 121 mm) and low current consumption (40 mA) simplify installation in varied setups.

Suitable for

• Residential satellite distribution to multiple receivers
• Small commercial or multi-room installations
• Setups requiring cascade connection of multiswitches
• Systems using QUAD LNBs or other 4-polarity LNBs

Key specifications

• Model: Televes 714403 (MS58NCQ)
• Inputs: 5 (4 satellite polarities + 1 terrestrial)
• Outputs: 13 user outputs
• Frequency range: 950–2400 MHz
• Input voltage: 12 V (power supply ref. 9916 included)
• Voltage range: 92–105 dBµV
• Current consumption: 40 mA
• Dimensions: 137 × 29 × 121 mm
• EAN: 8424450172865

How to use

Install the multiswitch near the antenna distribution point and connect the four satellite LNB outputs and the terrestrial antenna to the corresponding inputs. Connect the included 12 V power supply to the unit. Configure the device as a terminal in star topology or set the simple switch to enable cascade operation when linking additional multiswitches. Use the 22 kHz tone and VL remote feeding features as required by the connected LNBs and receivers. Ensure DC circulation settings match the installation’s power-feed requirements.

Recommendations

Place the multiswitch in a dry, ventilated location and use quality coaxial cables and connectors. Verify compatibility of LNBs and receivers with 22 kHz tone and VL remote feeding before finalizing the installation.
