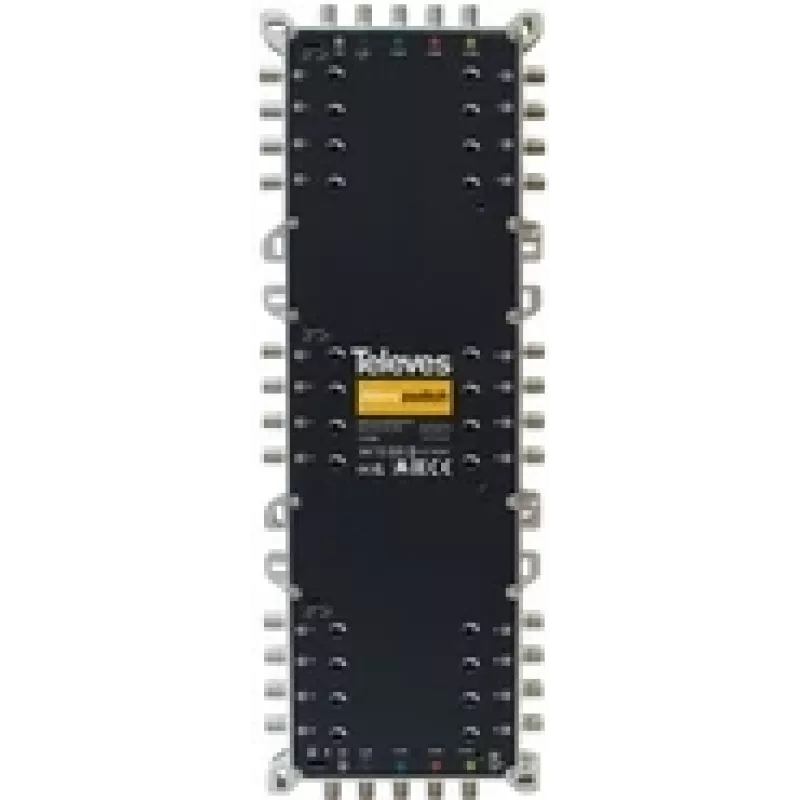

Multiswitch Televes MS524C — multiswitch com 5 saídas e 24 entradas para distribuição de satélite e terrestre

The Televes MS524C multiswitch is a 5-output, 24-input device designed to receive and combine multiple satellite and terrestrial TV sources for distribution in multi-dwelling or commercial installations. It accepts signals from several LNBs and a terrestrial antenna, routing independent satellite polarizations and bands together with terrestrial broadcasts to up to five outputs. The unit is intended for professional installations where multiple users require independent channel selection and simultaneous access to both satellite and terrestrial services.

Advantages

The MS524C supports a high number of inputs while maintaining five separate outputs, enabling flexible distribution and minimizing the need for additional splitters or combiners. Its design ensures stable signal routing of satellite polarizations and terrestrial signals to each connected receiver, which simplifies wiring in multi-user environments. The device is compact and suitable for rack or enclosure mounting in professional setups, providing a reliable central point for signal management.

Key specifications

• Outputs: 5 independent output lines for receivers
• Inputs: 24 inputs combining satellite LNB feeds and terrestrial antenna signals
• Signal types: Satellite polarizations and bands plus terrestrial broadcast
• Use case: Central multiswitch for multi-user satellite and terrestrial distribution
• Form factor: Compact housing suitable for professional enclosures

How to use

Install the Televes MS524C in a central equipment location and connect the multiple LNB feeds and the terrestrial antenna to the designated inputs. Route the five output lines to the distribution network or directly to receivers. Ensure power and any required ground connections are made according to installation guidelines for satellite distribution systems. Verify signal levels at each receiver and adjust upstream components (LNBs, antennas, attenuators) if necessary to achieve stable reception across all outputs.

Recommendations

Use the MS524C in conjunction with quality coaxial cabling and properly configured LNBs. In larger installations, plan cable routing and signal level balancing before finalizing connections, and consider using signal meters or professional tuning tools to confirm correct polarity and band distribution to each receiver.
