NAS Rack Synology RS2423RP+II (Rack 2U) AMD Ryzen V1780B 8 GB DDR4, 12 baias, RAID, DiskStation Manager

The Synology RS2423RP+II is a 2U rack-mounted NAS designed for small and medium businesses. Powered by an AMD Ryzen V1780B processor (3.35 GHz) and 8 GB DDR4 memory, this 12-bay DiskStation runs DiskStation Manager to provide centralized file storage, backup, virtualization support and multi-site synchronization in rack environments. The chassis is black, weighs 11.9 kg, and supports both HDD and SSD drives with hardware RAID to protect data and maintain performance.

Advantages

The RS2423RP+II delivers balanced performance and reliability with a quad-core AMD Ryzen processor and 8 GB of DDR4 memory, supporting hardware RAID and a broad set of enterprise-grade storage features. It provides flexible networking options including one 10GbE port and two Gigabit Ethernet ports with link aggregation support, redundant hot-swappable power supplies for higher service continuity, and expandability via an optional expansion unit to increase total bay count. DiskStation Manager offers integrated backup, snapshot, and synchronization tools for on-site and hybrid cloud deployments.

Suitable for (tasks / use cases)

• Centralized file sharing and collaboration for small and medium business teams
• Backup consolidation for endpoints, virtual machines, and cloud services
• Virtualization storage for light to moderate VM workloads and containers
• Multi-site synchronization and hybrid cloud file access
• IP video surveillance storage and management for medium installations

When it may not be suitable

This unit is not targeted at consumer/home users due to its rack form factor, 2U size, and enterprise-oriented features. Environments that require extremely high single-node performance beyond the quoted throughput or very large-scale storage clusters may require higher-end models or additional networking and storage expansion to meet demanding I/O and capacity needs.

Key specifications

• Form factor: Rack-mountable 2U chassis
• Processor: AMD Ryzen V1780B, quad-core, base frequency 3.35 GHz
• Memory: 8 GB DDR4 (installed)

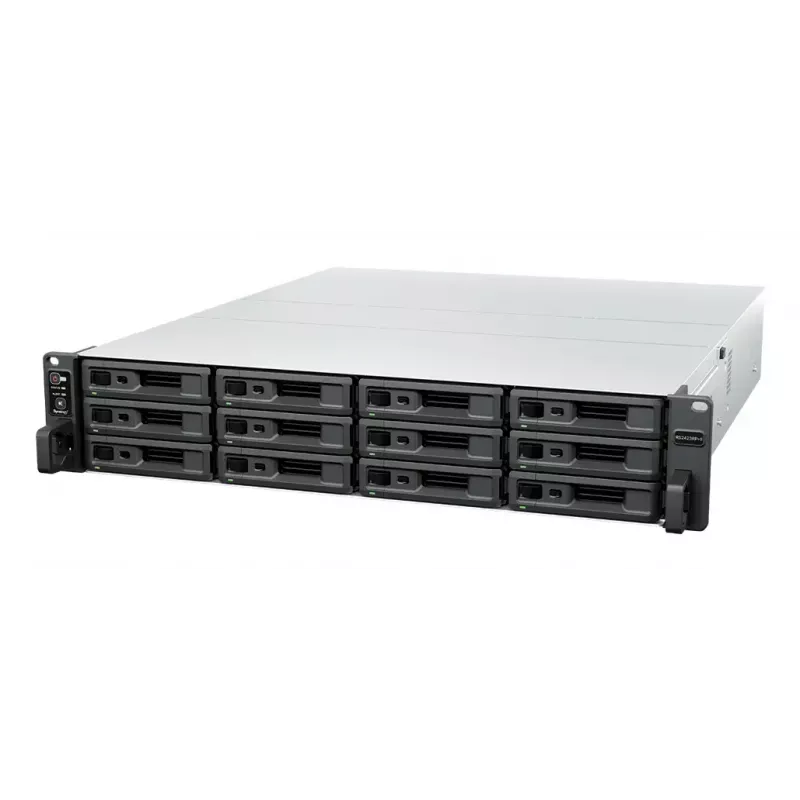

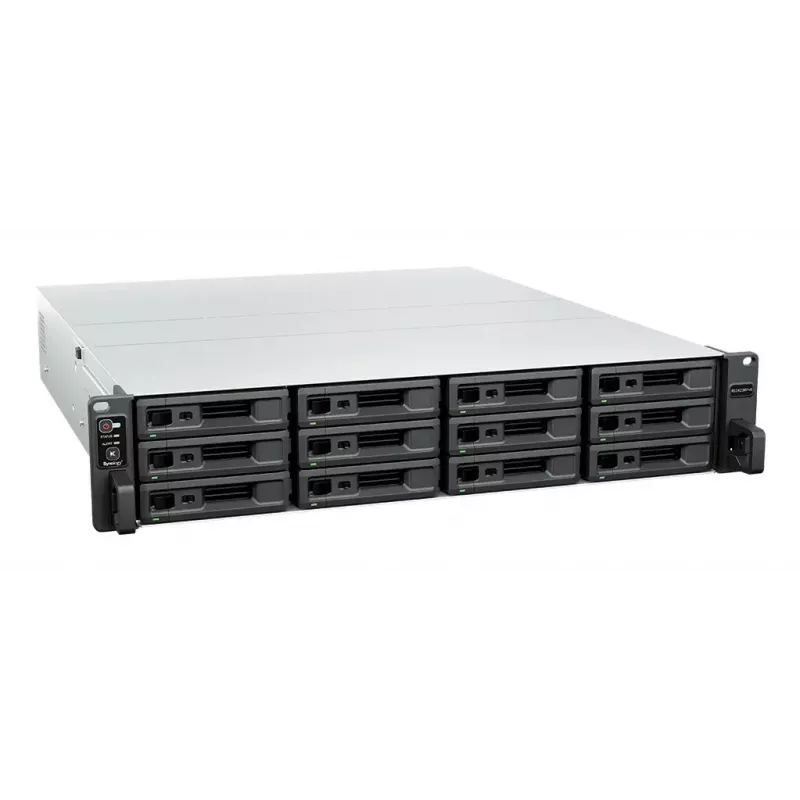

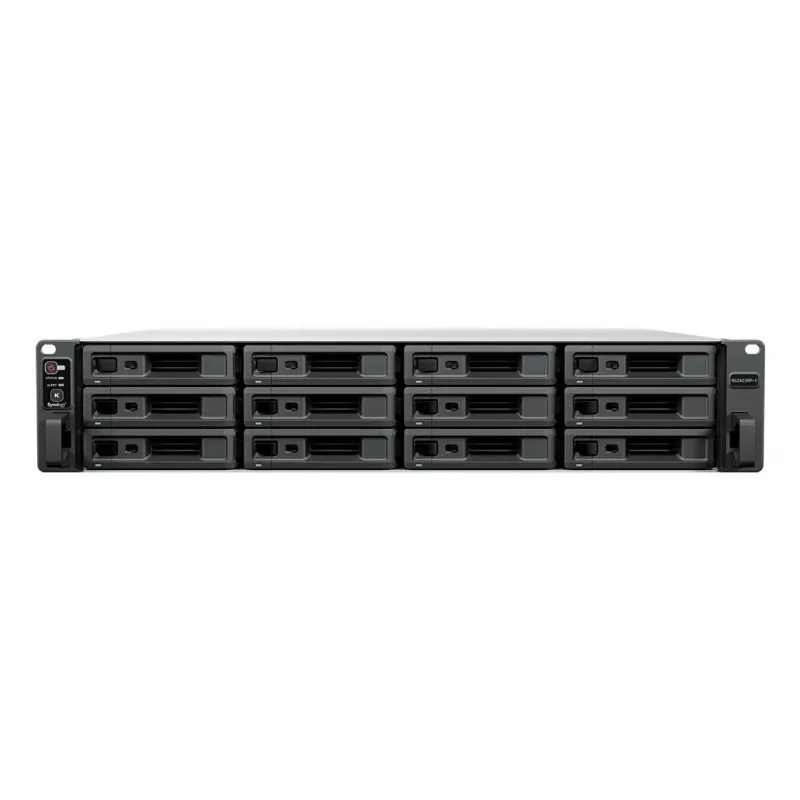

• Drive bays supported: Up to 12 SATA HDD/SSD
• RAID: Hardware RAID support (multiple RAID levels via DiskStation Manager)

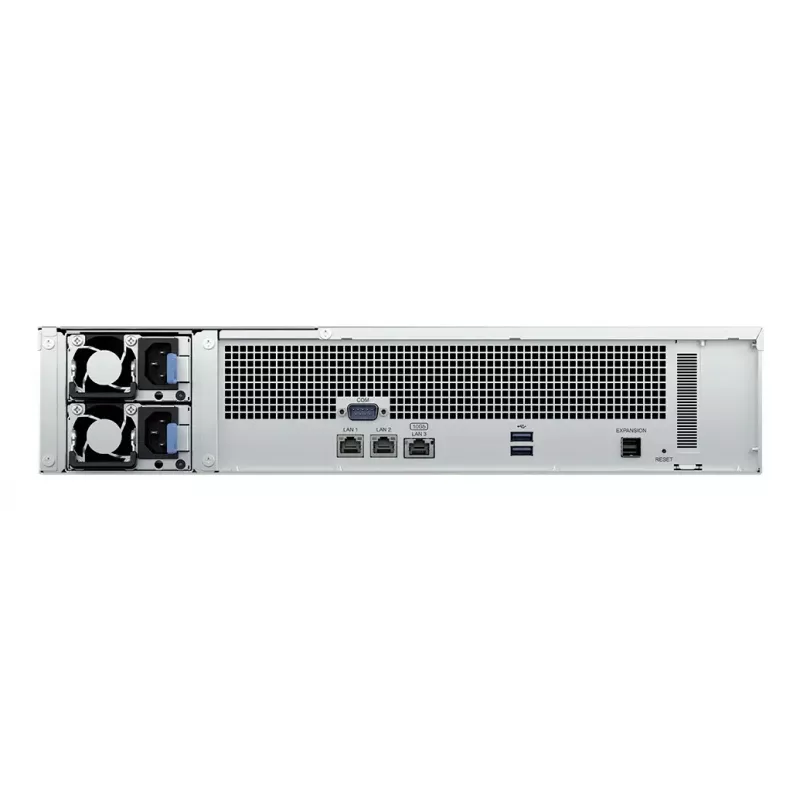

• Network interfaces: 1 × 10GbE RJ-45, 2 × 1GbE RJ-45 (supports link aggregation)
• Expansion: Supports external expansion unit to add additional drive bays
• Cooling: Active cooling (internal fans)
• Power: Redundant, hot-swappable power supply design
• Operating system: DiskStation Manager (preinstalled)
• Color: Black; Weight: 11.9 kg

How to use

Install the RS2423RP+II into a compatible 19-inch rack following rack-mount instructions, insert supported SATA HDDs or SSDs into the front bays, and connect network and power. Use the DiskStation Manager web interface to perform initial setup, configure RAID arrays, create shared folders, enable user and group access controls, and set up backup, snapshot, and synchronization tasks. Optionally install additional network or storage expansion modules via the PCIe slot and connect an expansion unit for more drive bays. Regularly monitor health and perform firmware updates through the management console.

What to consider before purchase

• Ensure rack depth and power/cooling capacity in your server rack are compatible with a 2U unit
• Plan the required number and type (HDD or SSD) of drives and RAID level for capacity and redundancy
• Assess network bandwidth needs—10GbE may be required for high-throughput workloads
• Consider purchasing compatible enterprise-grade drives for sustained performance and reliability
• Verify compatibility of third-party expansion cards if you intend to add networking or NVMe cache modules

Recommendations

For reliable operation, deploy the RS2423RP+II on a managed network with proper UPS and cooling, use RAID configurations appropriate for your redundancy requirements, schedule regular snapshot and backup tasks with DiskStation Manager, and use Synology-recommended drives when possible to maximize performance and long-term reliability.
