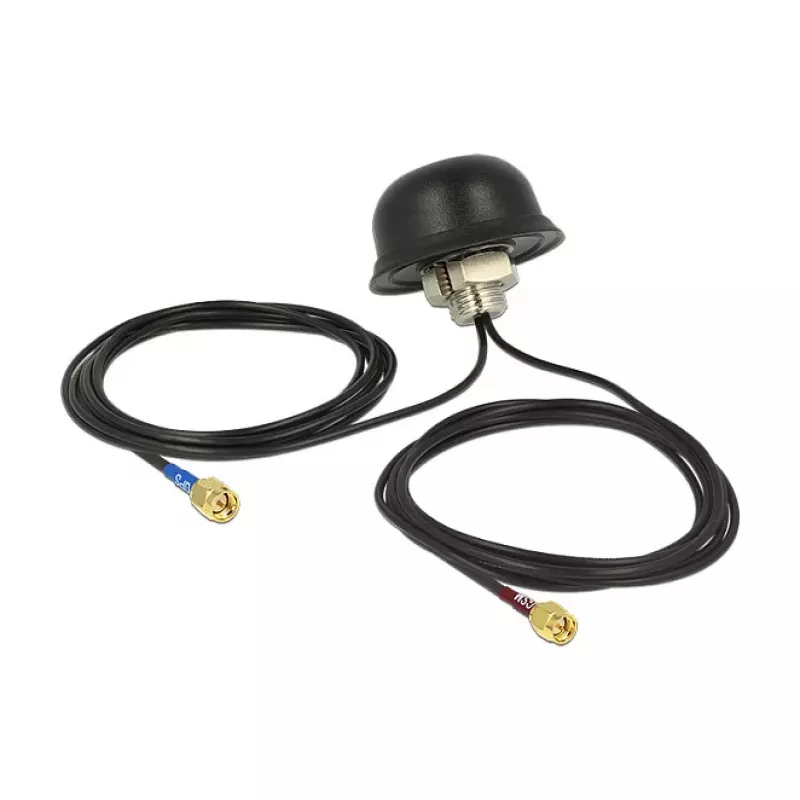

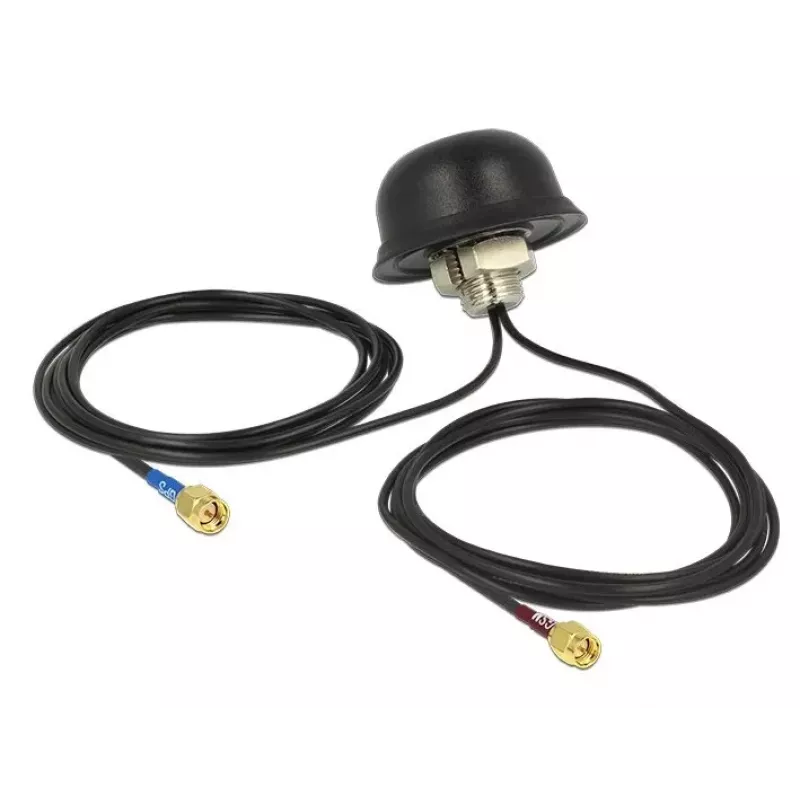

NAVILOCK Antena Multibanda GPS GSM UMTS LTE SMA 2-5 dBi 2x2m RG-174 Omnidirecional para Montagem em Telhado Exterior

The NAVILOCK Multiband GPS GSM UMTS LTE SMA 2-5 dBi Antenna is a high-performance omnidirectional antenna designed for outdoor roof mounting. It supports multiple technologies including GPS, GLONASS, GSM, UMTS, and LTE, making it ideal for a wide range of applications such as vehicle tracking, fleet management, and remote monitoring. With dual SMA connectors and 2x2m RG-174 cables, this antenna ensures reliable signal reception and transmission.

Advantages

This antenna offers exceptional versatility with support for GPS, GLONASS, GSM, UMTS, and LTE bands. Its omnidirectional design provides 360-degree coverage, while the IP67 rating ensures durability in harsh outdoor conditions. The integrated LNA for GPS delivers high gain up to 28 dBi, improving weak signal reception. Easy roof mounting with M18 screw thread simplifies installation.

Suitable for

• Vehicle tracking and telematics systems
• Fleet management and logistics
• Remote monitoring and IoT applications
• Marine and mobile communication systems

Key specifications

• Antenna Type: Multiband Omnidirectional
• Supported Technologies: GPS, GLONASS, GSM, UMTS, LTE
• GPS Frequency Range: 1575.42 MHz
• Cellular Frequency Range: 698-960 MHz, 1710-2700 MHz
• GPS Gain (LNA): 28 dBi
• Cellular Gain: 2-5 dBi
• Impedance: 50 Ohm
• VSWR: <2.0
• Polarization: RHCP (GPS), Linear (Cellular)
• Connector Type: 2x SMA Male
• Cable Type: RG-174
• Cable Length: 2x2 m

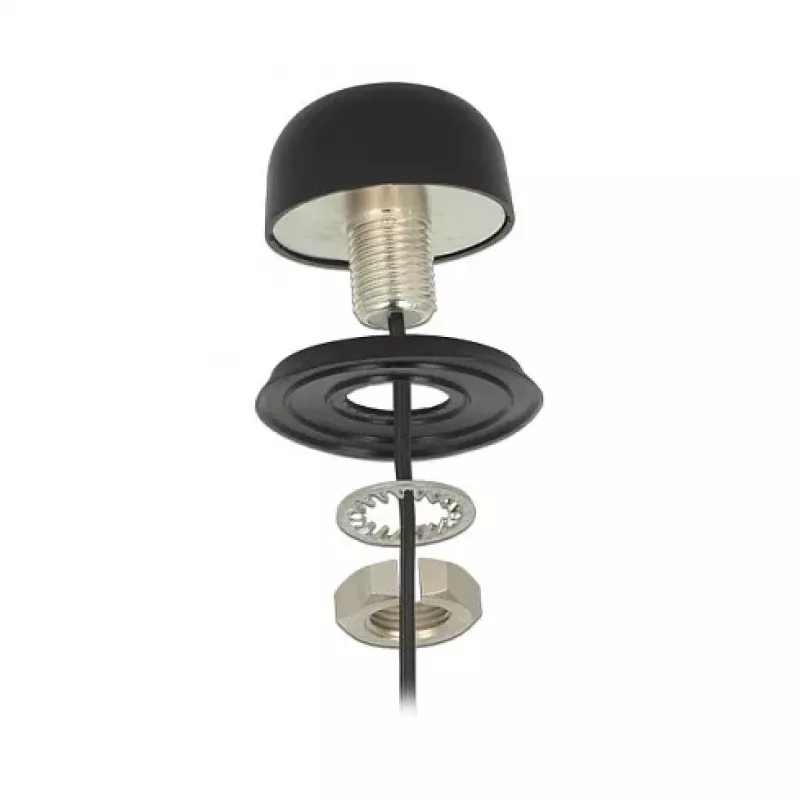

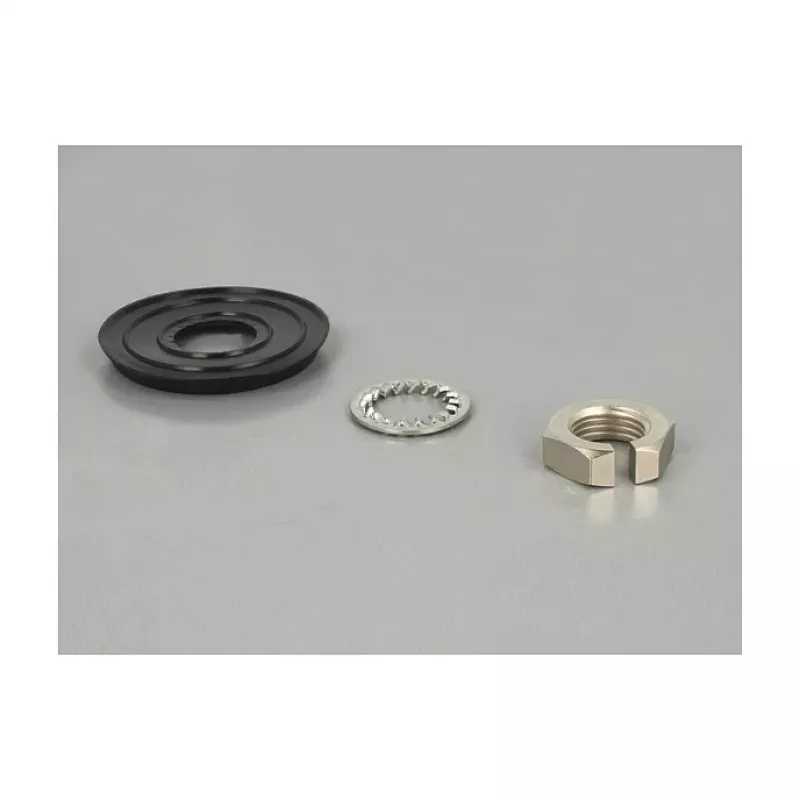

• Mounting Type: Roof Mount (M18 screw thread)
• Ingress Protection: IP67
• Operating Temperature: -40°C to 85°C
• GPS Power Supply: 3.0-5.0 V DC
• GPS Current Consumption: 10 mA max.
• Housing Material: ABS, UV resistant
• Noise Figure (GPS): <1.5 dB

Recommendations

For optimal performance, ensure the antenna is mounted on a clean, flat metal surface for proper grounding. Use high-quality SMA cables and connectors to minimize signal loss. This antenna is compatible with most GPS and cellular modems and routers.
