NEO TOOLS TOP-11-130 Conjunto de verificação de empeno lateral de discos de travão com comparador de 0,01 mm, base magnética de 60 kg, braço flexível

0.01 mm resolution across a 0–10 mm range—that’s the precision this NEO TOOLS brake disc runout checker brings to your workshop. The TOP-11-130 pairs a 55 mm dial indicator with a 60 kg magnetic base and a flexible articulated arm, so you can lock the gauge exactly where you need it and trust the reading.

Overview

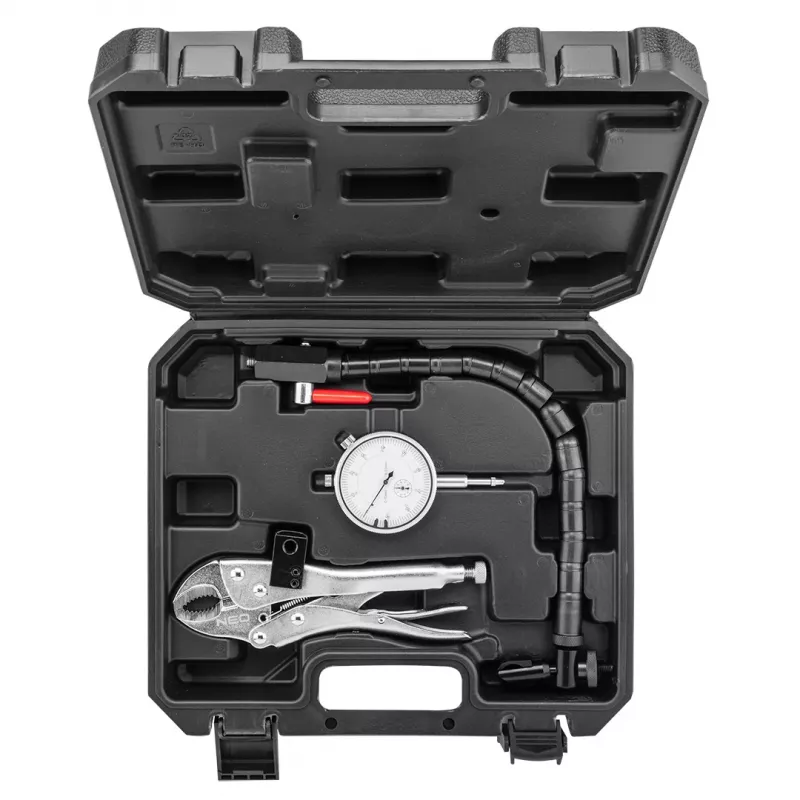

The NEO TOOLS Brake Disc Runout Checker Kit is a complete solution for measuring lateral runout on brake discs, hubs, and other rotating components. The kit includes a dial indicator with a 55 mm face, a magnetic base with approximately 60 kg of holding force, an extension rod, and a blow-molded storage case. The flexible articulated arm reaches up to 250 mm, allowing you to position the indicator exactly where you need it. The hardened steel contact point ensures durability and consistent readings.

What stands out

• High precision: 0.01 mm resolution for accurate runout detection.
• Strong magnetic base: 60 kg holding force keeps the setup stable on ferrous surfaces.
• Flexible arm: 250 mm reach with locking mechanism for secure positioning.
• Complete kit: includes indicator, magnetic base, extension rod, and case.
• Zero adjustment: easily set the dial to zero at any reference point.

Technical details

• Measurement type: Dial indicator gauge
• Measurement range: 0-10 mm
• Accuracy / Resolution: 0.01 mm
• Dial indicator face diameter: 55 mm
• Stem diameter: 8 mm
• Mounting base type: Magnetic base
• Magnetic base force: Approx. 60 kg
• Arm type: Flexible / Articulated arm
• Max arm reach: 250 mm
• Measurement units: Millimeters (mm)
• Contact point material: Hardened steel
• Application: Brake disc runout measurement, automotive diagnostics
• Kit contents: Dial indicator, magnetic base, extension rod, storage case
• Case material: Blow-molded plastic
• Material (indicator/base): Steel, aluminum
• Zero adjustment: Yes
• Locking mechanism: Yes (for arm position)

Our verdict

For any technician serious about brake diagnostics, this kit delivers the stability, precision, and reach needed to catch even the slightest disc runout—without breaking the bank.
