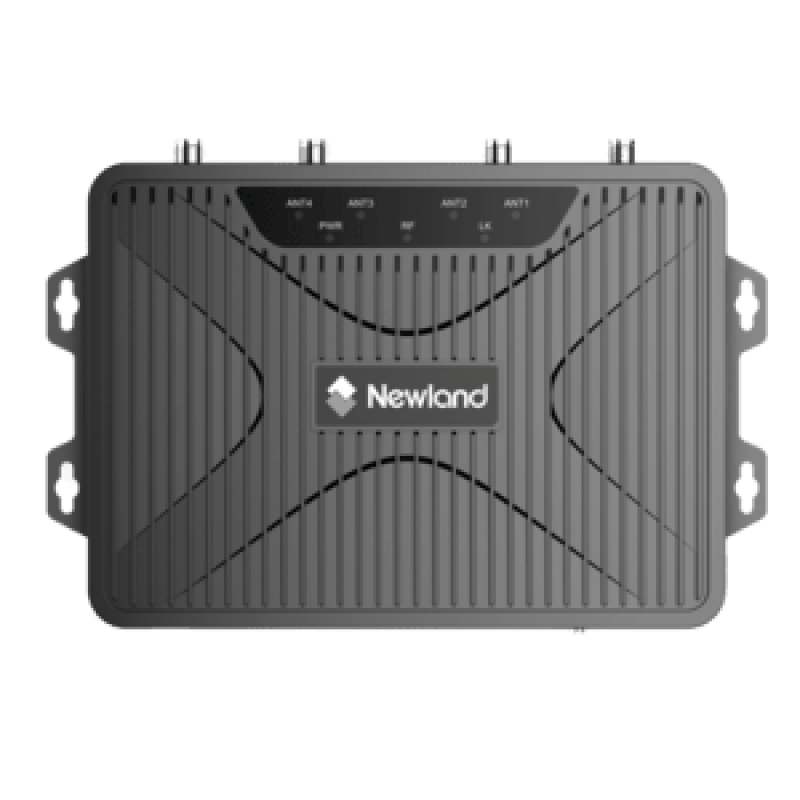

Newland URF520 Leitor UHF industrial robusto fixo com módulo Impinj E710 e 4 portas de antena

The Newland URF520 stands apart from typical fixed RFID readers by combining the powerful Impinj E710 chipset with a die-cast aluminum housing built for harsh industrial environments. While many readers sacrifice either performance or durability, this unit delivers both: up to 900+ tags per second read rate and an IP65 rating that shrugs off dust and water. Four RP-TNC antenna ports provide flexible coverage for portals, conveyors, or dock doors, while the embedded Linux OS and multi-language SDK allow deep integration into existing WMS or ERP systems.

Highlights

• Impinj E710 UHF RFID module for high-speed, high-density tag reading
• 4 RP-TNC antenna ports supporting global 860–960 MHz frequency range
• Adjustable RF output up to 33 dBm (1W) per port for precise read zones
• Rugged IP65 die-cast aluminum enclosure for demanding industrial use
• Multiple connectivity: Ethernet, RS-232, USB Type-A, USB Type-B console
• 4 GPIO inputs and 4 outputs for sensor/actuator integration
• Embedded Linux with SDK support for C#, Java, Python, C++

In daily use

Deploy the URF520 at a loading dock to automatically capture pallet and case tags as they pass through a portal. The high read rate ensures no tag is missed even at conveyor speeds, while the adjustable power lets you fine-tune the read zone to avoid stray reads. Connect via Ethernet to your network, use the GPIO to trigger a light stack or gate, and monitor status through the built-in LEDs. With a wide operating temperature range from -20°C to +60°C, it performs reliably in cold storage or hot manufacturing floors.

Full specifications

• RFID Module: Impinj E710
• Frequency Range: 860–960 MHz (Global)
• Antenna Ports: 4 x RP-TNC Female
• RF Output Power: Up to 33 dBm (1W) per port, adjustable
• Protocols: EPC Global UHF Class 1 Gen 2 / ISO 18000-6C
• Connectivity: 1 x Ethernet (RJ45), 1 x RS232 (DB9), 1 x USB Type-A, 1 x USB Type-B (Console)
• GPIO: 4 x Input, 4 x Output
• Processor: ARM Cortex-A Series
• Operating System: Embedded Linux
• SDK Support: C#, Java, Python, C++
• Power Supply: DC 12V-24V
• IP Rating: IP65
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Housing Material: Die-cast Aluminum
• Indicators: Power, Link, RFID Status LEDs
• Mounting Options: Wall Mount, VESA Mount
• Read Rate: Up to 900+ tags/second

Final note

For businesses needing a reliable, high-performance fixed RFID reader that can withstand tough conditions, the Newland URF520 offers enterprise-grade features without the enterprise price tag. Its combination of the latest Impinj E710 chip, rugged build, and flexible integration options makes it a smart investment for any RFID deployment.
