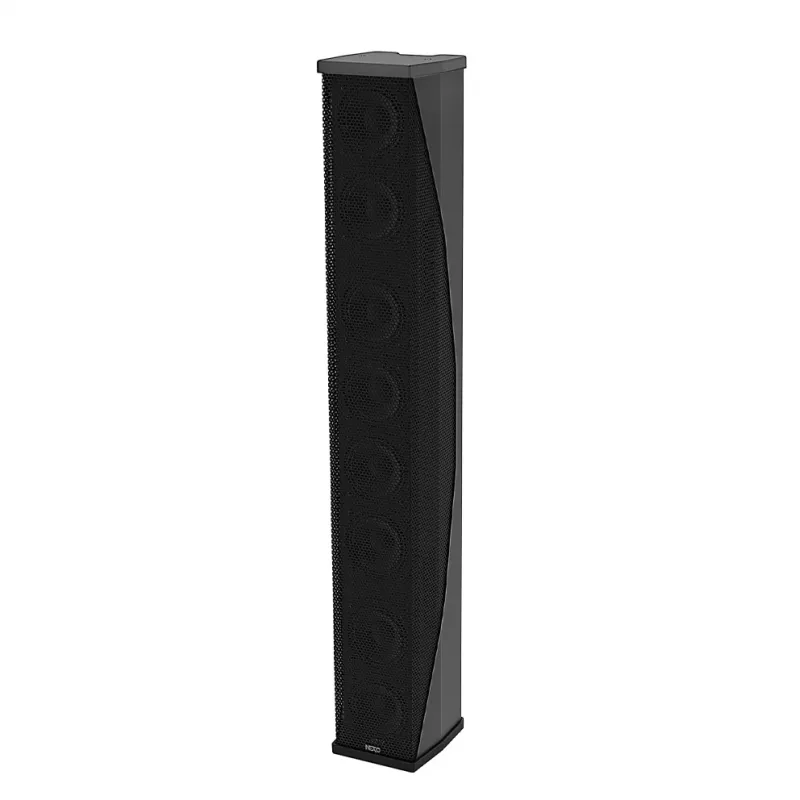

NEXO ID84L-T coluna de alto desempenho LF máx. 1080W

The NEXO ID84L-T is a high-performance passive 2-way column loudspeaker designed for professional sound reinforcement in demanding environments. With a peak power handling of 1080W (LF) and 400W (HF), this speaker delivers exceptional clarity and power for speech and music applications. Its compact, weather-resistant design (IP54) makes it ideal for both indoor and outdoor installations.

Advantages

Exceptional sound quality with a frequency response of 90 Hz to 20 kHz (±3dB) and a maximum SPL of 137 dB peak. The 8 x 4-inch long excursion LF drivers and 8 x 1-inch dome tweeters provide wide dispersion (100° horizontal, 10° vertical) for consistent coverage. The extruded aluminum chassis and steel grille ensure durability, while integrated rigging points simplify mounting.

Suitable for

• Live sound reinforcement for concerts and events
• Fixed installations in houses of worship, theaters, and auditoriums
• Outdoor venues requiring weather-resistant equipment
• High-quality speech and music reproduction

Key specifications

• Speaker Type: Passive 2-Way Column Loudspeaker
• Frequency Response: 90 Hz - 20 kHz (±3dB)
• Nominal Impedance: 8 Ohms
• LF Driver: 8 x 4-inch Long Excursion Drivers
• HF Driver: 8 x 1-inch Dome Tweeters
• Power Handling (LF): 360W RMS / 1080W Peak
• Power Handling (HF): 100W RMS / 400W Peak
• Sensitivity (1W/1m): 106 dB SPL
• Maximum SPL (Peak): 137 dB
• Horizontal Dispersion: 100°
• Vertical Dispersion: 10° (Long Throw)
• Crossover Frequency: 1.2 kHz
• Connectors: 2 x NL4, 4-pole Screw Terminal Block
• Enclosure Material: Extruded Aluminum Chassis, Steel Grille
• IP Rating: IP54 (Weather Resistant)
• Finish: Black or White Structural Paint
• Mounting Options: Integrated Rigging Points
• Recommended Amplifier: NEXO DTDAMP or NXAMP Series

Recommendations

For optimal performance, pair the ID84L-T with a NEXO DTDAMP or NXAMP series amplifier. Ensure proper rigging and weather protection for outdoor installations.
