Ancoragem passante DAM6X5, rosca M6, passivada de película espessa, DIN 50 961

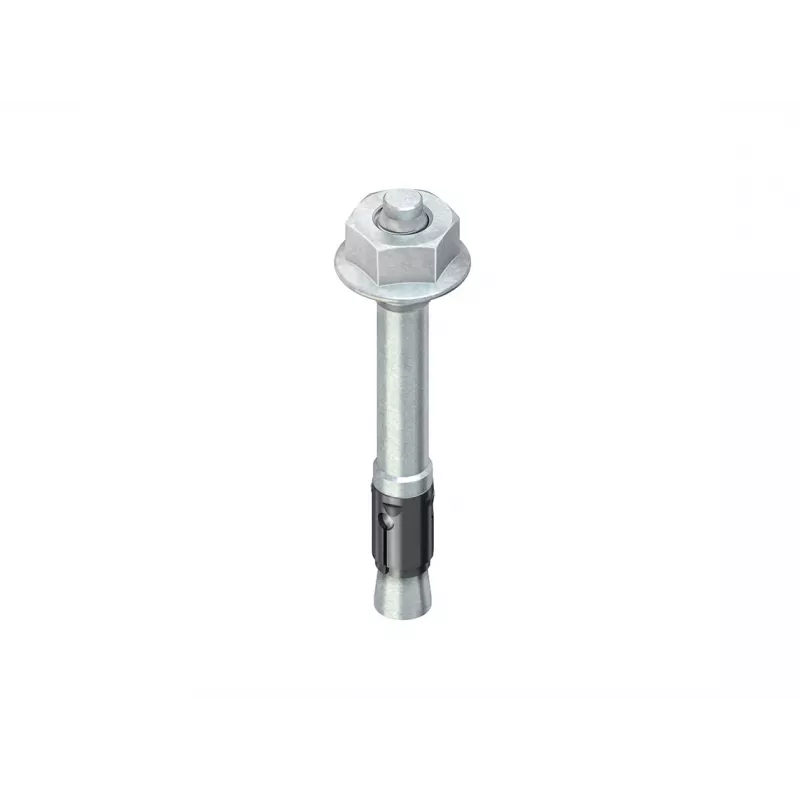

The Niedax DAM6X5 through-bolt anchor is a high-quality fastening solution designed for secure mounting of electrical installations, cable trays, pipes, and ventilation systems. Featuring an M6 internal thread and thick-film passivated steel construction, this anchor provides reliable corrosion protection in accordance with DIN 50 961. Ideal for use in concrete, solid brick, and natural stone, the push-through installation method ensures quick and easy fixing.

Advantages

Corrosion-resistant thick-film passivated surface ensures long-lasting performance. The through-bolt design allows for simple installation without the need for special tools. Compact dimensions make it suitable for confined spaces.

Suitable for

• Fastening cable trays and conduits
• Mounting pipes and ventilation systems
• Securing electrical installations to concrete, solid brick, or natural stone

Key specifications

• Thread Size: M6
• Anchor Length: 35 mm
• Drill Hole Diameter: 10 mm
• Minimum Drill Hole Depth: 40 mm
• Maximum Clamping Thickness: 5 mm
• Material: Steel, Thick-Film Passivated
• Corrosion Protection: DIN 50 961
• Installation: Through-fixing (Push-through)
• Quantity: 1 piece

Recommendations

For best results, ensure the drill hole is clean and the anchor is fully seated. Use appropriate torque when tightening the bolt.
