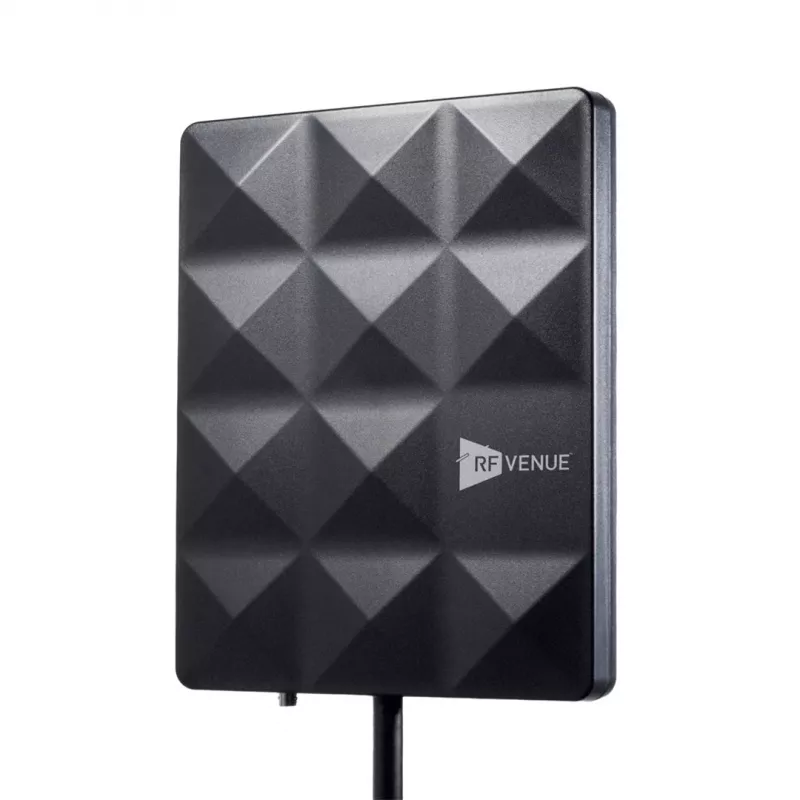

Antena direcional circularmente polarizada resistente às intempéries RF Venue CP-STAGE, 470-698 MHz, BNC, preto

Unlike conventional paddle antennas that rely on linear polarization and suffer dropouts from multipath interference, the RF Venue CP-STAGE combines true right-hand circular polarization with a rugged weatherproof housing. This directional antenna maintains consistent RF capture for wireless microphones and in-ear monitors—even when performers move or rotate their beltpacks. Its focused 70° beamwidth targets the stage while rejecting reflections from behind, making it a dependable choice for touring, outdoor events, and fixed installations.

Highlights

• Circularly polarized (RHCP) design reduces dropouts from antenna orientation and reflections
• Broad 470–698 MHz coverage supports all UHF wireless microphone and IEM systems
• 9 dBd gain with 70° beamwidth targets the performance area precisely
• Weather-resistant ABS housing withstands rain, dust, and temperature extremes
• Standard 5/8"-27 thread mounts directly on mic stands or antenna masts
• BNC female connector with 50-ohm impedance for low-loss coaxial runs

In daily use

Mount the CP-STAGE on a microphone stand at the edge of the stage, aim it toward the performers, and connect it to your receiver or antenna distribution system. The circular polarization captures both vertical and horizontal signal components, so a handheld transmitter tilted at any angle still delivers a strong, stable signal. The front-to-back ratio of over 20 dB rejects unwanted RF from behind the antenna, reducing intermodulation and noise. For outdoor festivals or dusty environments, the sealed ABS enclosure ensures reliable operation in temperatures from -20°C to 60°C.

Full specifications

• Antenna Type: Directional, Circularly Polarized
• Frequency Range: 470 - 698 MHz
• Gain: 9 dBd (11.15 dBi)
• Beamwidth: 70° (Horizontal & Vertical)
• Polarization: Right-Hand Circular (RHCP)
• Connector Type: BNC Female
• Impedance: 50 Ohms
• VSWR: <1.5:1
• Front-to-Back Ratio: >20 dB
• Mounting Thread: 5/8"-27 (Standard Mic Stand)
• Maximum Input Power: 100 W
• Construction Material: Durable ABS Plastic
• Weather Resistance: Yes (Robust, for outdoor use)
• Application: Wireless Microphone Systems, In-Ear Monitor (IEM) Systems
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Color: Black

Final note

The RF Venue CP-STAGE is a professional-grade solution for reliable wireless audio in challenging RF environments, ensuring consistent performance show after show.
