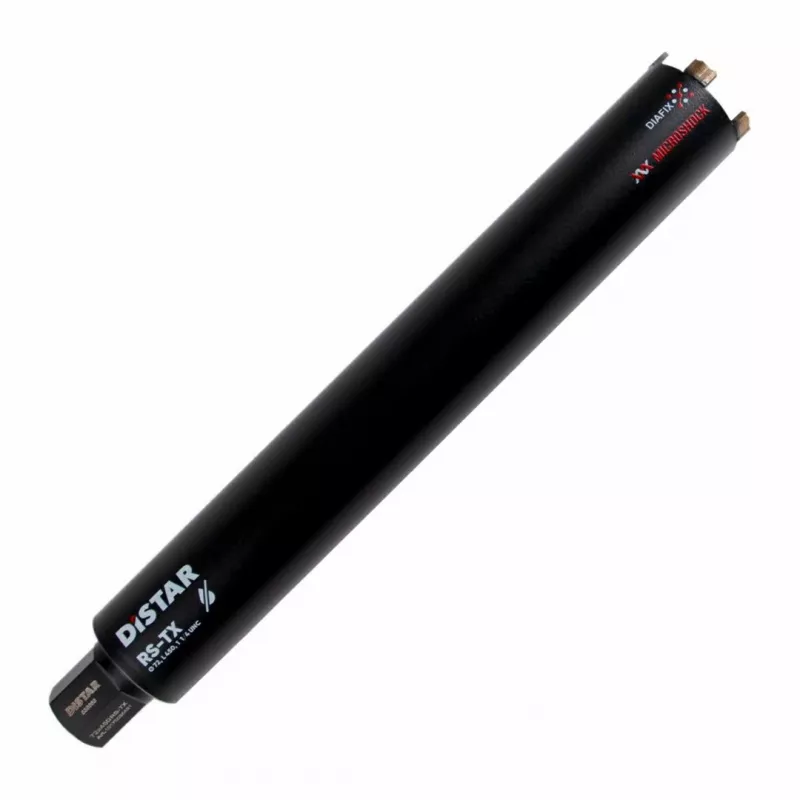

Coroa de perfuração diamantada RS-TX 1 1/4 72mm x 450mm

Drilling large-diameter holes in reinforced concrete or masonry can quickly dull inferior bits, causing slow progress and excessive wear. The Diamond Core Bit RS-TX 1 1/4 72mm x 450mm solves this with laser-welded diamond segments and a robust steel barrel, delivering fast, clean cuts in demanding professional applications.

Who is it for

Contractors, civil engineers, and serious construction professionals who need reliable wet drilling in concrete, reinforced concrete, asphalt, masonry, and brick. Ideal for creating openings for pipes, conduits, and anchor points.

Main features

• 72 mm diameter and 450 mm working length for deep, precise holes
• 1 1/4" UNC thread for secure attachment to compatible core drills
• Laser-welded diamond segments (10 mm height, 3.5 mm width) for extended life and high performance
• High-grade steel core barrel resists deformation under load
• Optimized for wet drilling; water cooling is required
• Recommended for machines with power above 2.0 kW

Specifications

• Drill bit type: Diamond core bit
• Diameter: 72 mm
• Working length: 450 mm
• Connection thread: 1 1/4" UNC
• Segment type: Laser welded diamond
• Segment height: 10 mm
• Segment width: 3.5 mm
• Core barrel material: High-grade steel
• Application materials: Reinforced concrete, concrete, asphalt, masonry, brick
• Cooling: Water
• Recommended machine power: >2.0 kW
• Series: RS-TX

Tips

Always use water for cooling and dust suppression. Ensure the drill rig is stable and the bit is properly aligned to avoid binding. Periodically clear debris from the hole to maintain cutting speed and extend bit life.
